Engine Coolant Replacement - 3.0L: Draining

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
  2. Release the pressure in the cooling system by slowly turning the pressure relief cap one half to one turn counterclockwise to the first stop on the filler neck. When the pressure has been released, remove the pressure relief cap.
  3. Raise the vehicle.
  4. Remove the lower radiator cover.

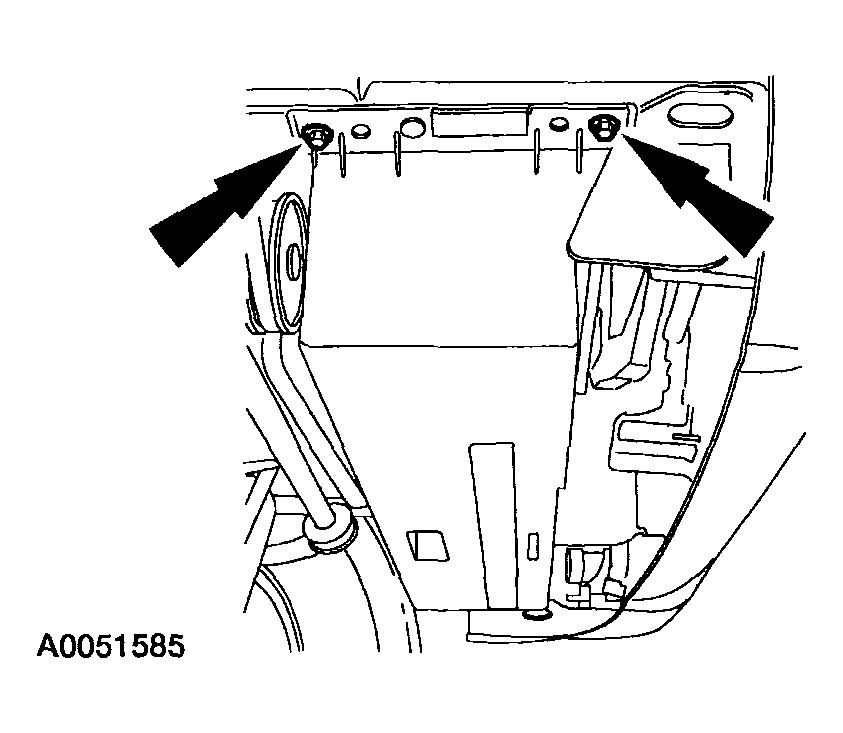

    Fig 1: Removing Lower Radiator Cover
    G04307850Courtesy of MAZDA MOTORS CORP.
  5. Place a suitable container below the radiator drain-cock. Drain the coolant.
  6. Close the radiator draincock when finished.
