Coolant Recovery Reservoir Removal / Installation - 3.0L

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet tube. See AIR CLEANER OUTLET TUBE REMOVAL / INSTALLATION - 3.0L .
If equipped, remove the bolt and position the speed control actuator aside.

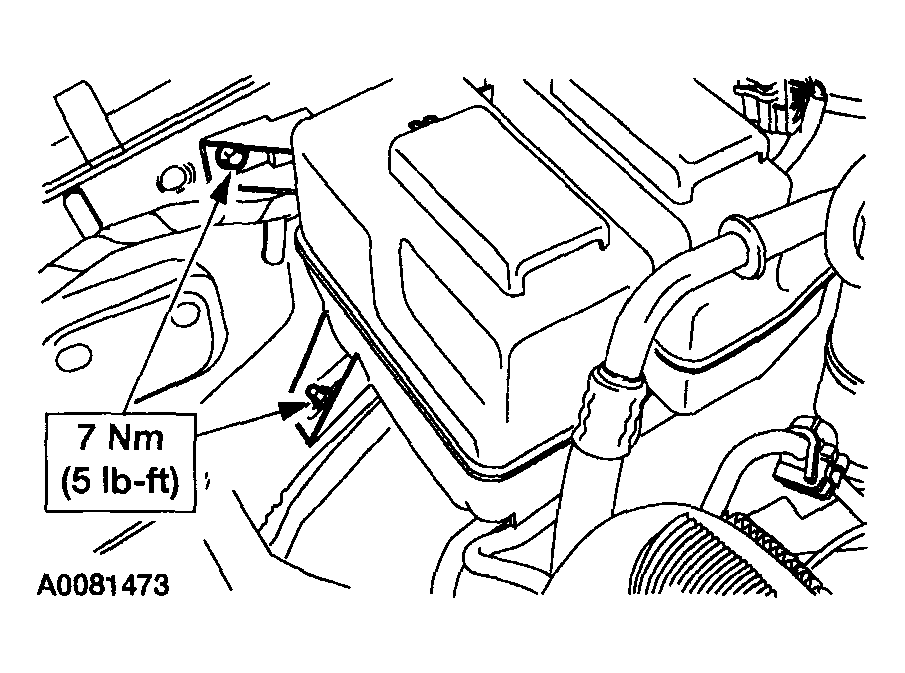

Fig 1: Speed Control Actuator With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the washer motor electrical connector.

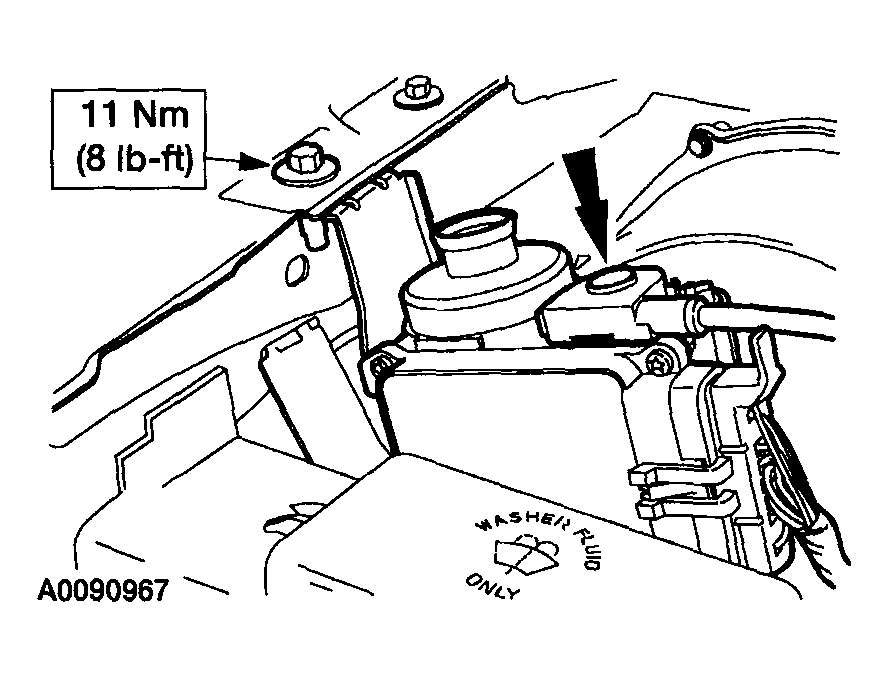

Fig 2: Washer Motor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the overflow hose at the coolant recovery reservoir and drain coolant from coolant recovery reservoir.

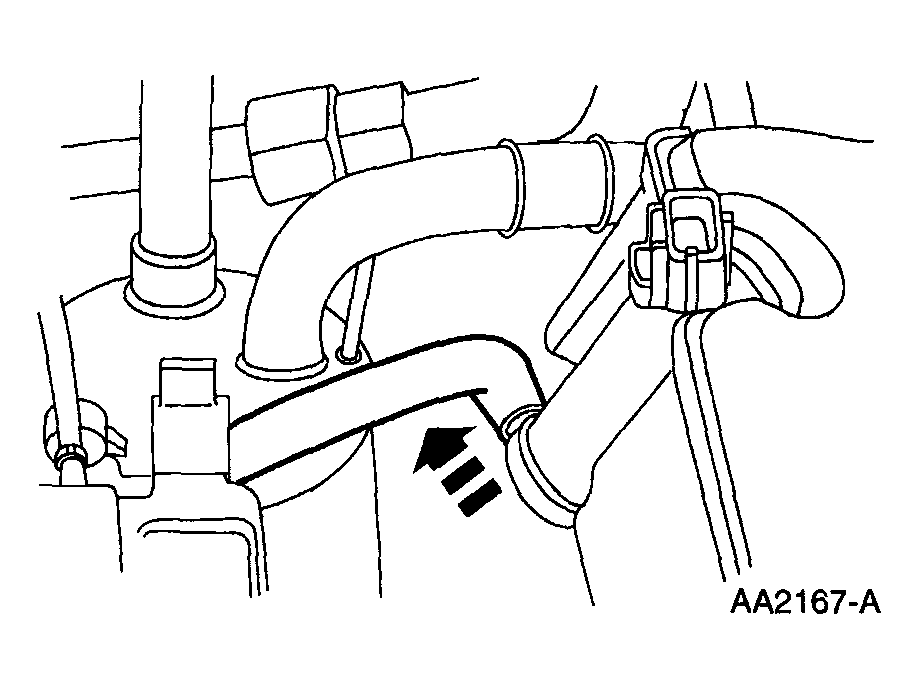

Fig 3: Overflow Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the washer motor hose.

Fig 4: Washer Motor Hose
Courtesy of MAZDA MOTORS CORP.
Remove the two nuts and two bolts.

Fig 5: Nuts And Two Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the coolant recovery reservoir.

Fig 6: Coolant Recovery Reservoir
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.

Fill the coolant recovery reservoir to the cold fill mark.
