Rear Coolant Outlet Pipe Removal / Installation - 2.3L

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L .
Remove the transmission. See AUTOMATIC TRANSMISSION REMOVAL / INSTALLATION or MANUAL TRANSMISSION REMOVAL / INSTALLATION .
CAUTION:
- Use a block of wood to protect the oil pan.
Support the motor with an appropriate jack stand.

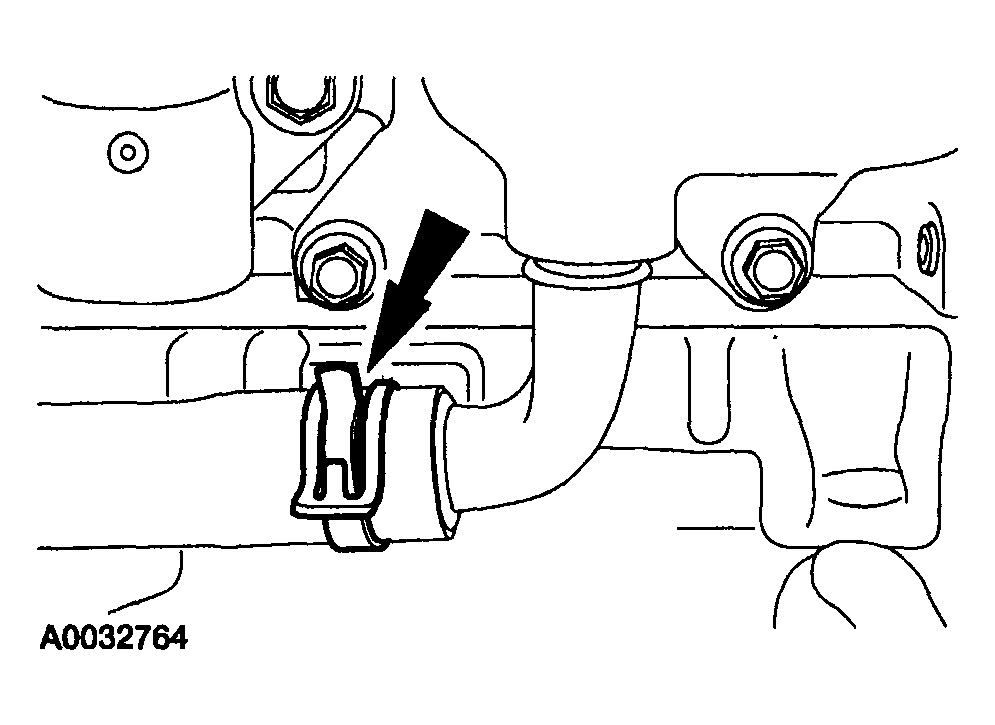

Fig 1: Disconnecting Coolant Bypass Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the coolant bypass hose.

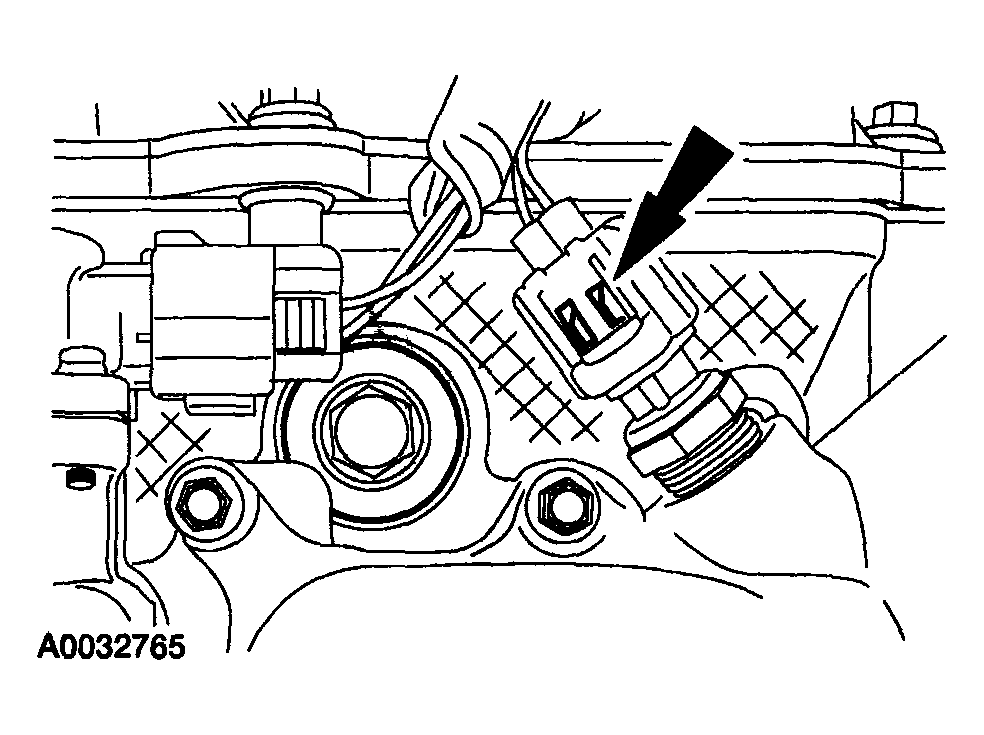

Fig 2: Disconnecting Coolant Temperature Sender Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the coolant temperature sender electrical connector.

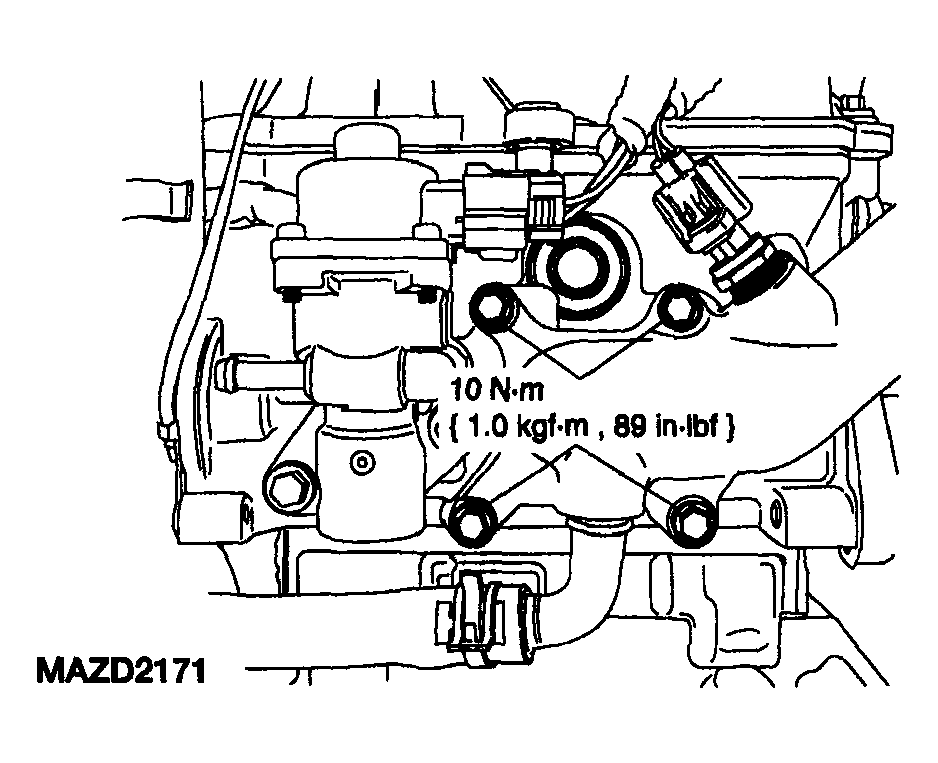

Fig 3: Removing/Installing Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts, the rear coolant outlet pipe, and the gasket.
NOTE:
- Clean the gasket mating surfaces and install a new gasket.
NOTE:
- Inspect the two front coolant outlet pipe O-rings. Install new O-rings if necessary.
To install, reverse the removal procedure.
