Radiator Removal / Installation - 2.3L: Removal

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L .

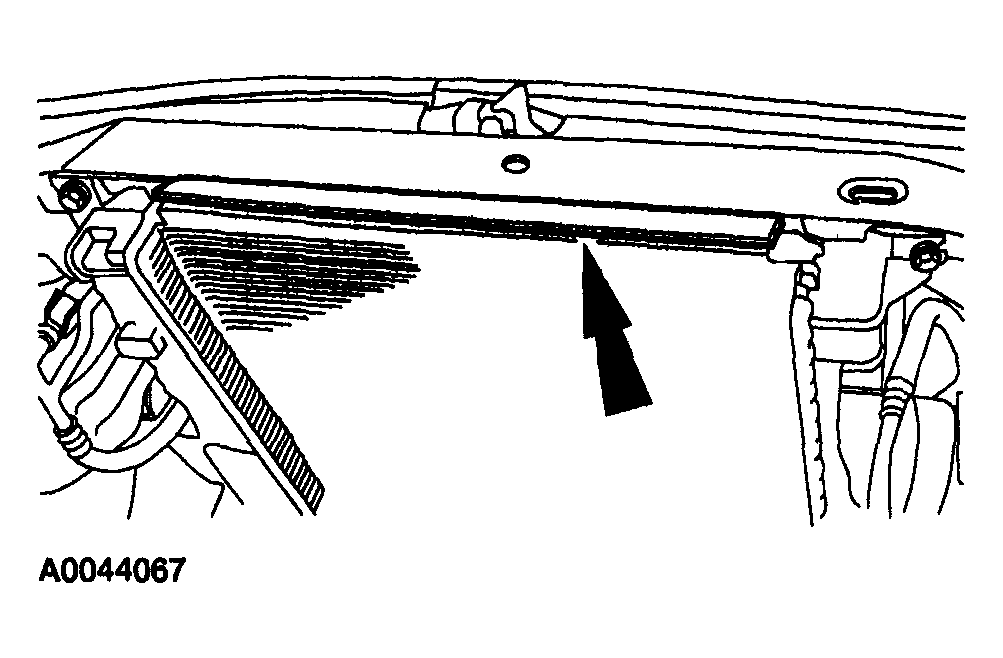

Remove the plastic cap from the top of the radiator channel.

Fig 1: Removing Plastic Cap From Top Of Radiator Channel
Courtesy of MAZDA MOTORS CORP.

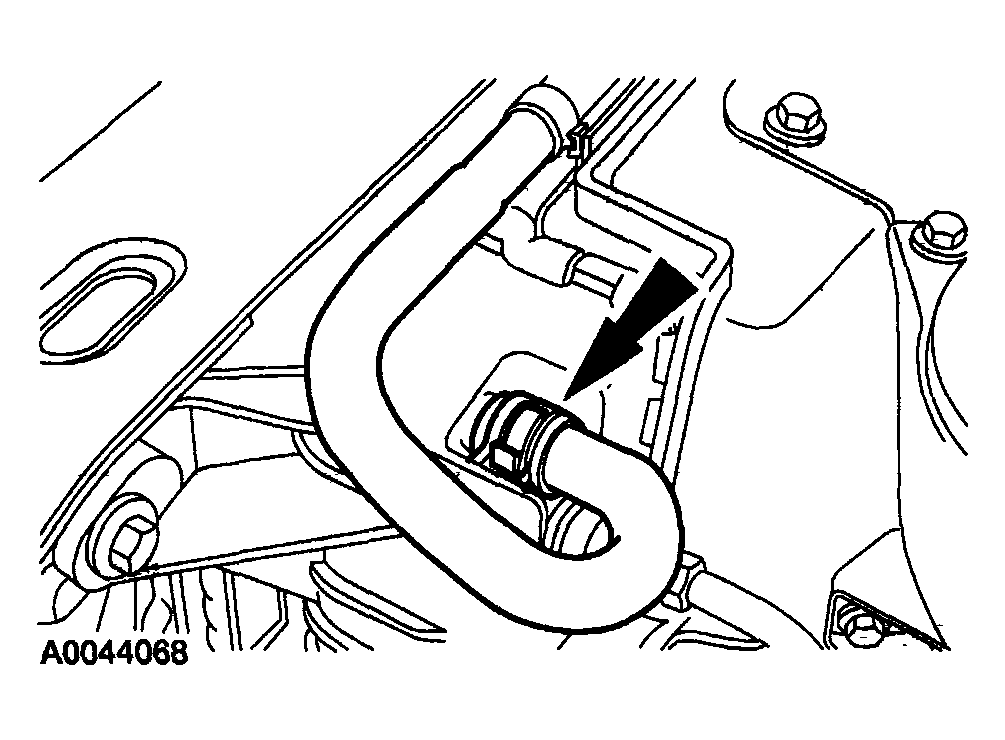

Disconnect the coolant overflow hose from the radiator, position the hose away from the radiator.

Fig 2: Disconnecting Coolant Overflow Hose From Radiator
Courtesy of MAZDA MOTORS CORP.

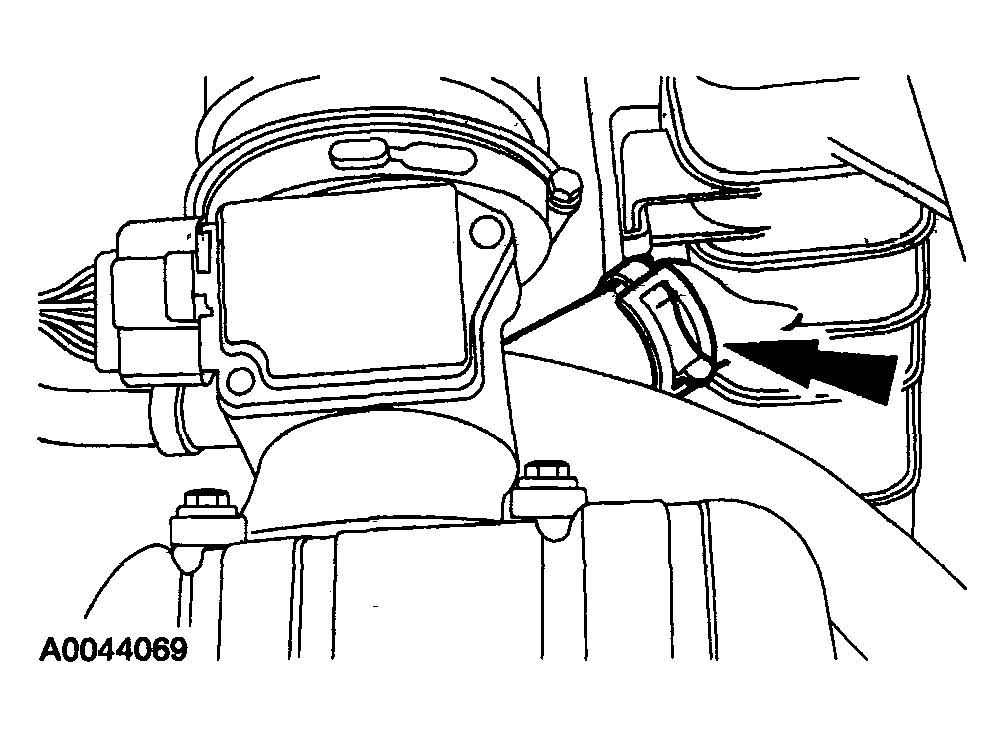

Disconnect the upper radiator hose.

Fig 3: Disconnecting Upper Radiator Hose
Courtesy of MAZDA MOTORS CORP.
Remove the cooling fan and shroud. See ELECTRIC COOLING FAN REMOVAL/ INSTALLATION - 2.3L .

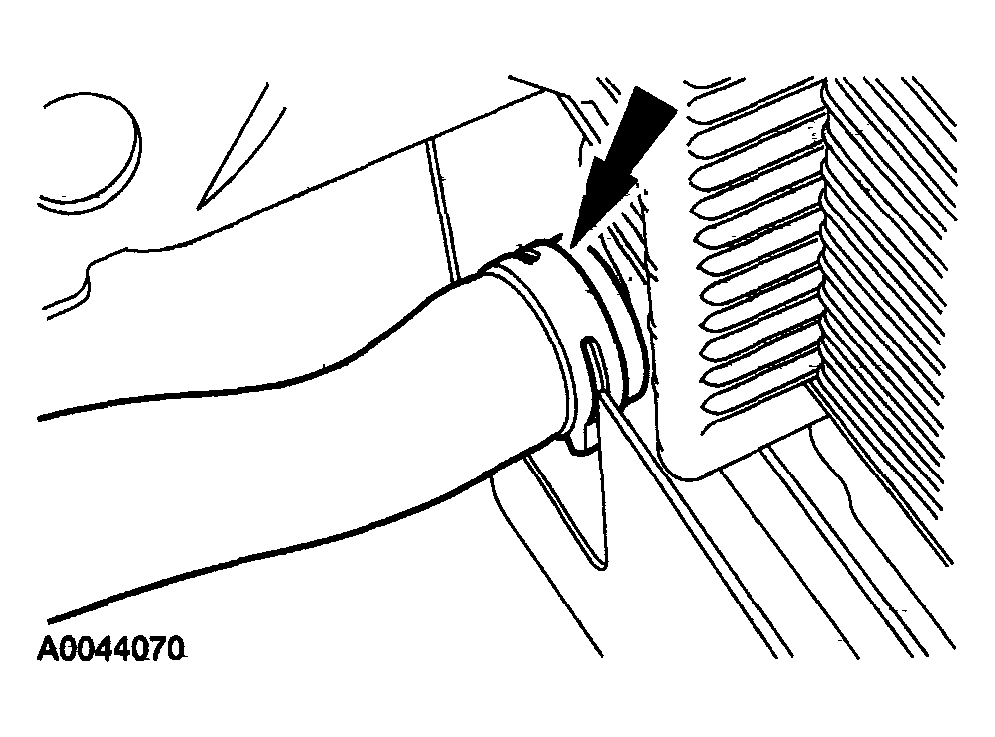

Disconnect the lower radiator hose.

Fig 4: Disconnecting Lower Radiator Hose
Courtesy of MAZDA MOTORS CORP.

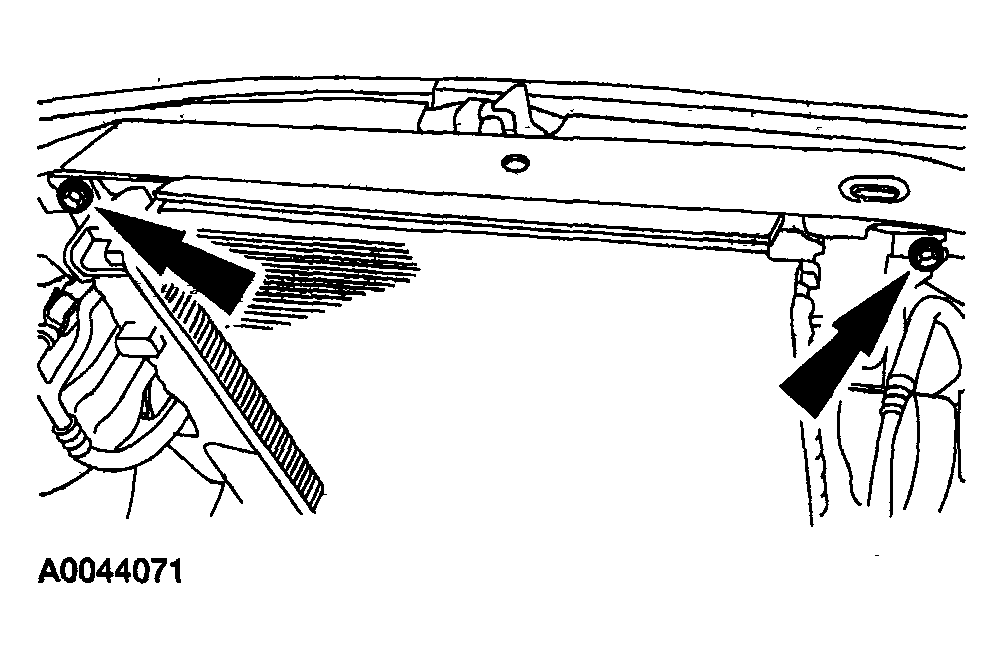

Remove the bolts, tilt the radiator back and lift it directly upward.

Fig 5: Removing Bolts

Courtesy of MAZDA MOTORS CORP.
