Removal and Installation

All vehicles

Disconnect the electric cooling fan electrical connector.

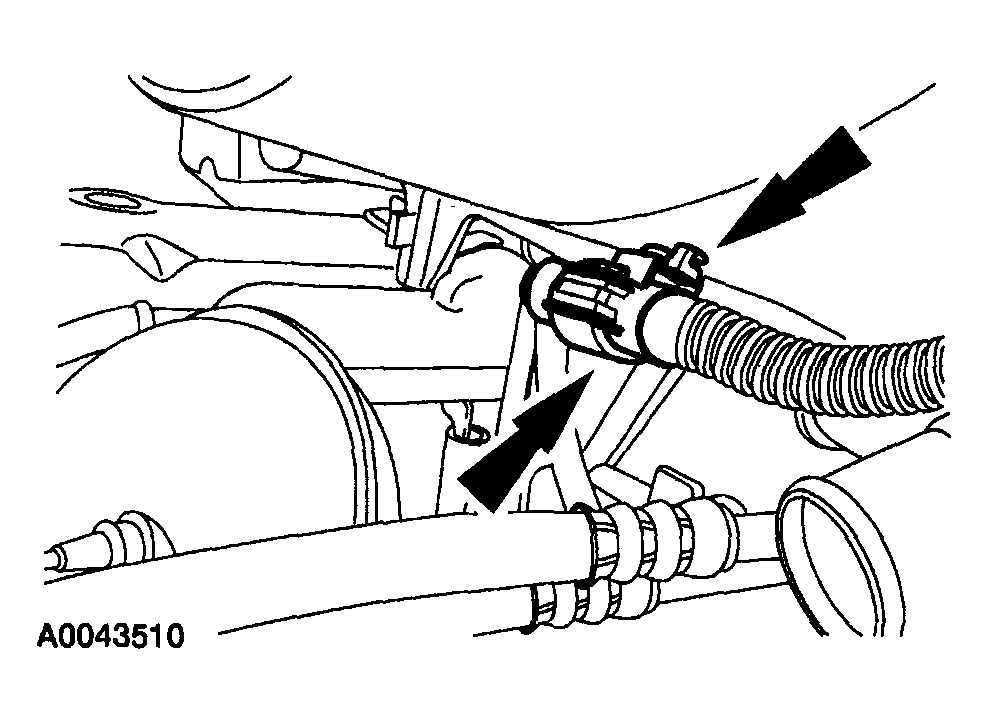

Fig 1: Disconnecting Electric Cooling Fan Electrical Connector

Courtesy of MAZDA MOTORS CORP.

Vehicles equipped with metal power steering fluid reservoir bracket

Remove the bolts and position the power steering reservoir aside.

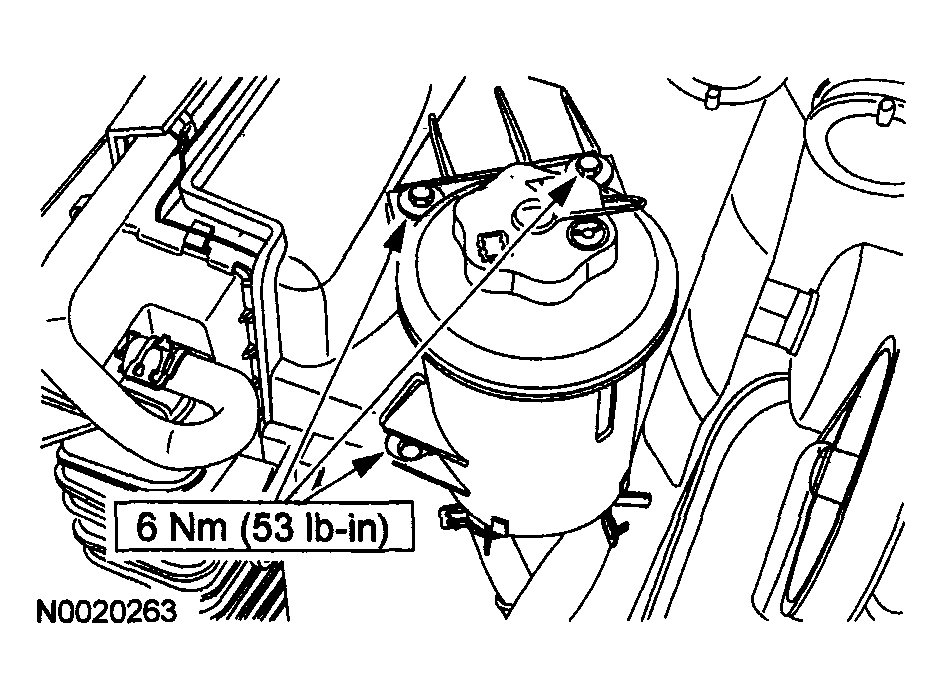

Fig 2: Removing/Installing Power Steering Reservoir With Torque Specifications (Metal Power Steering Fluid Reservoir Bracket)

Courtesy of MAZDA MOTORS CORP.

Vehicles equipped with an integral plastic power steering fluid reservoir bracket

Remove the bolts and position the power steering reservoir out of the way.

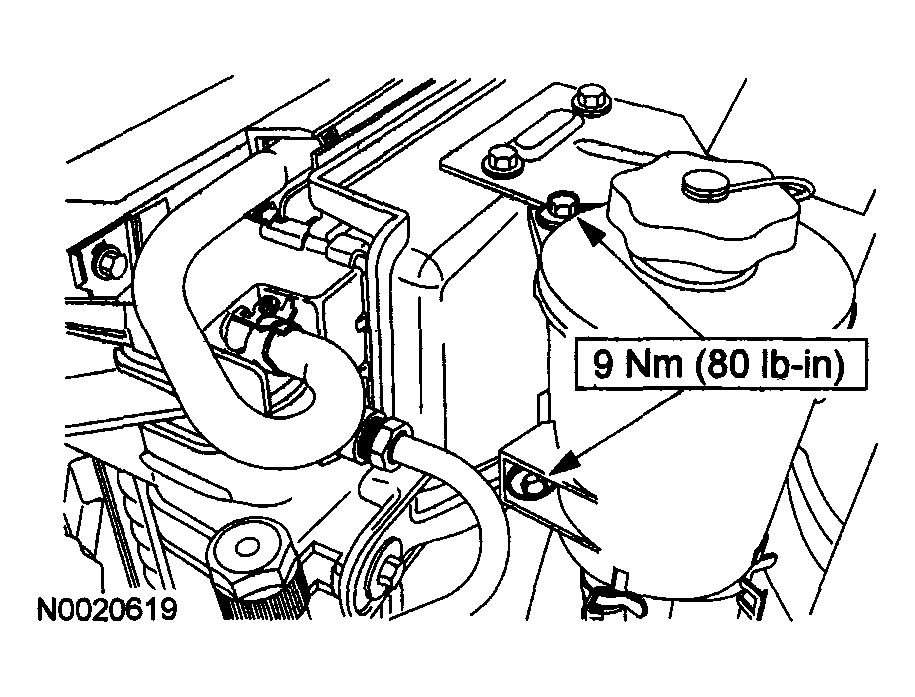

Fig 3: Removing/Installing Power Steering Reservoir With Torque Specifications (Integral Plastic Power Steering Fluid Reservoir Bracket)

Courtesy of MAZDA MOTORS CORP.

All vehicles

Remove the right side cooling fan shroud mounting bolt and lift the shroud and electric cooling fan assembly from the vehicle.

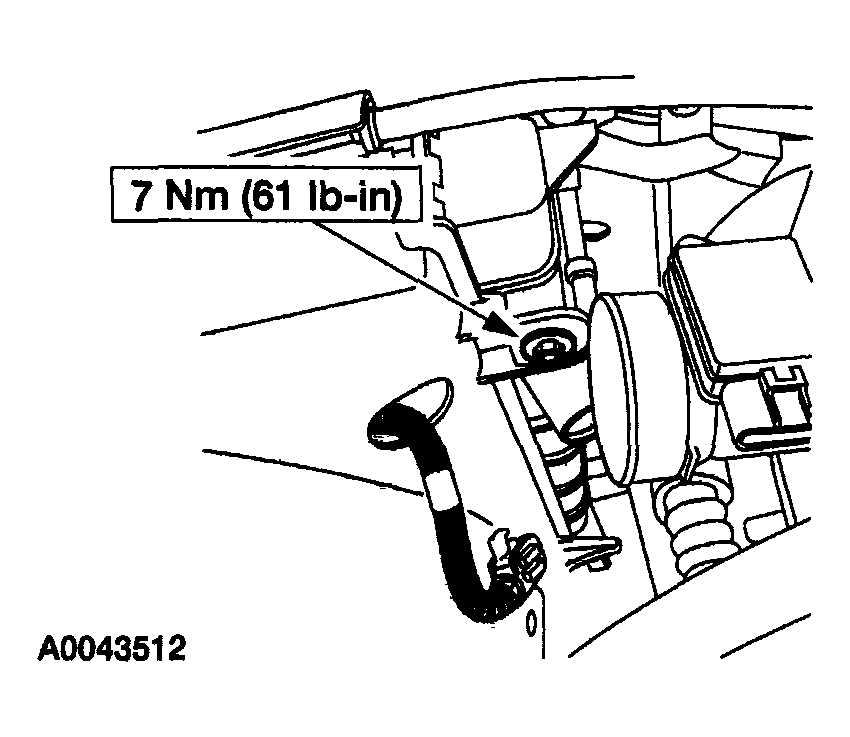

Fig 4: Removing/Installing Right Side Cooling Fan Shroud Mounting Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Vehicles equipped with metal power steering fluid reservoir bracket

NOTE:

• For vehicles equipped with a metal power steering fluid reservoir bracket, the fan shroud and electric cooling fan are serviced as an assembly.

Vehicles equipped with an integral plastic power steering fluid reservoir bracket

If necessary, remove the bolts and the electric cooling fan.

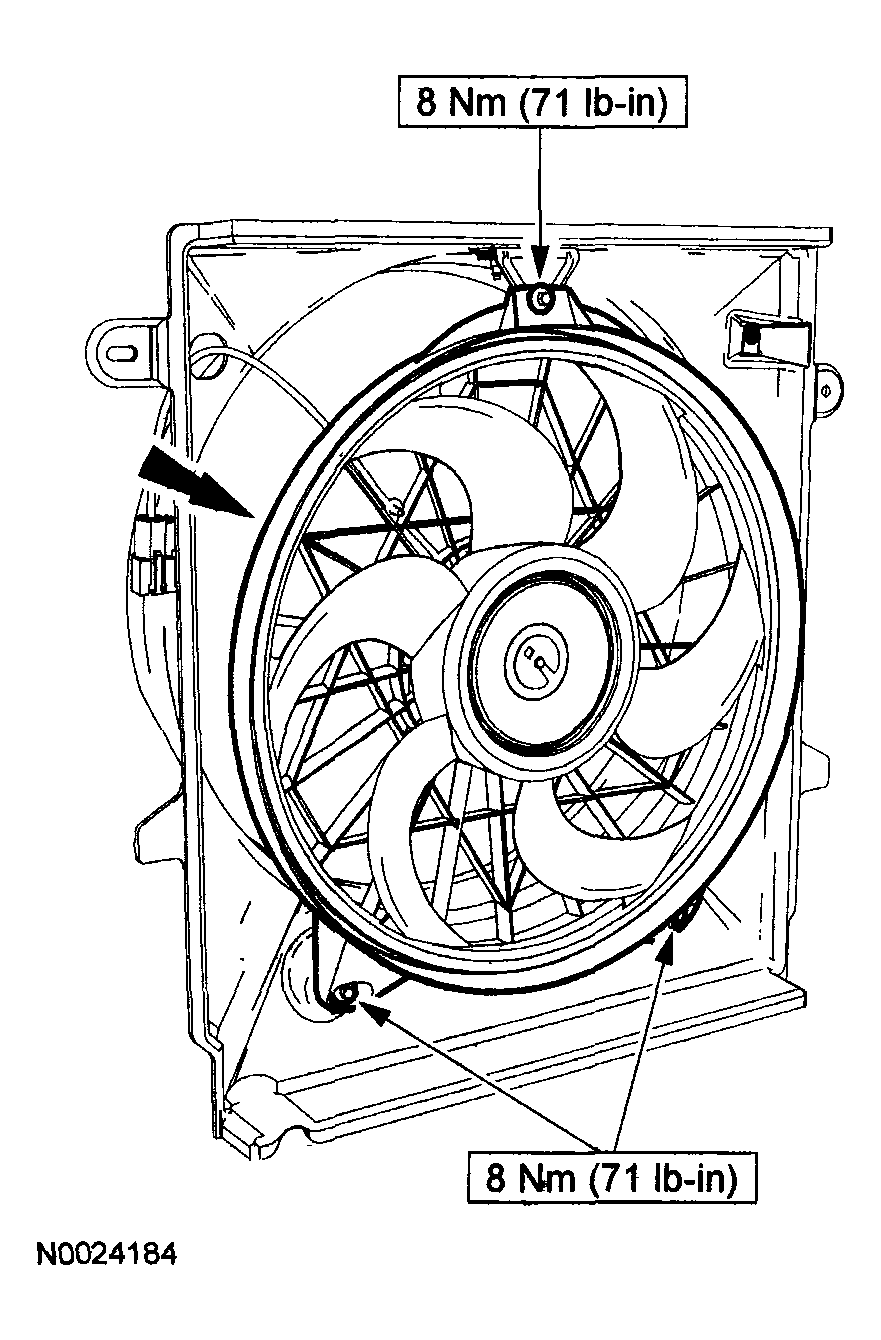

Fig 5: Removing/Installing Electric Cooling Fan With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

If necessary, remove the bolts, bracket and the nuts.

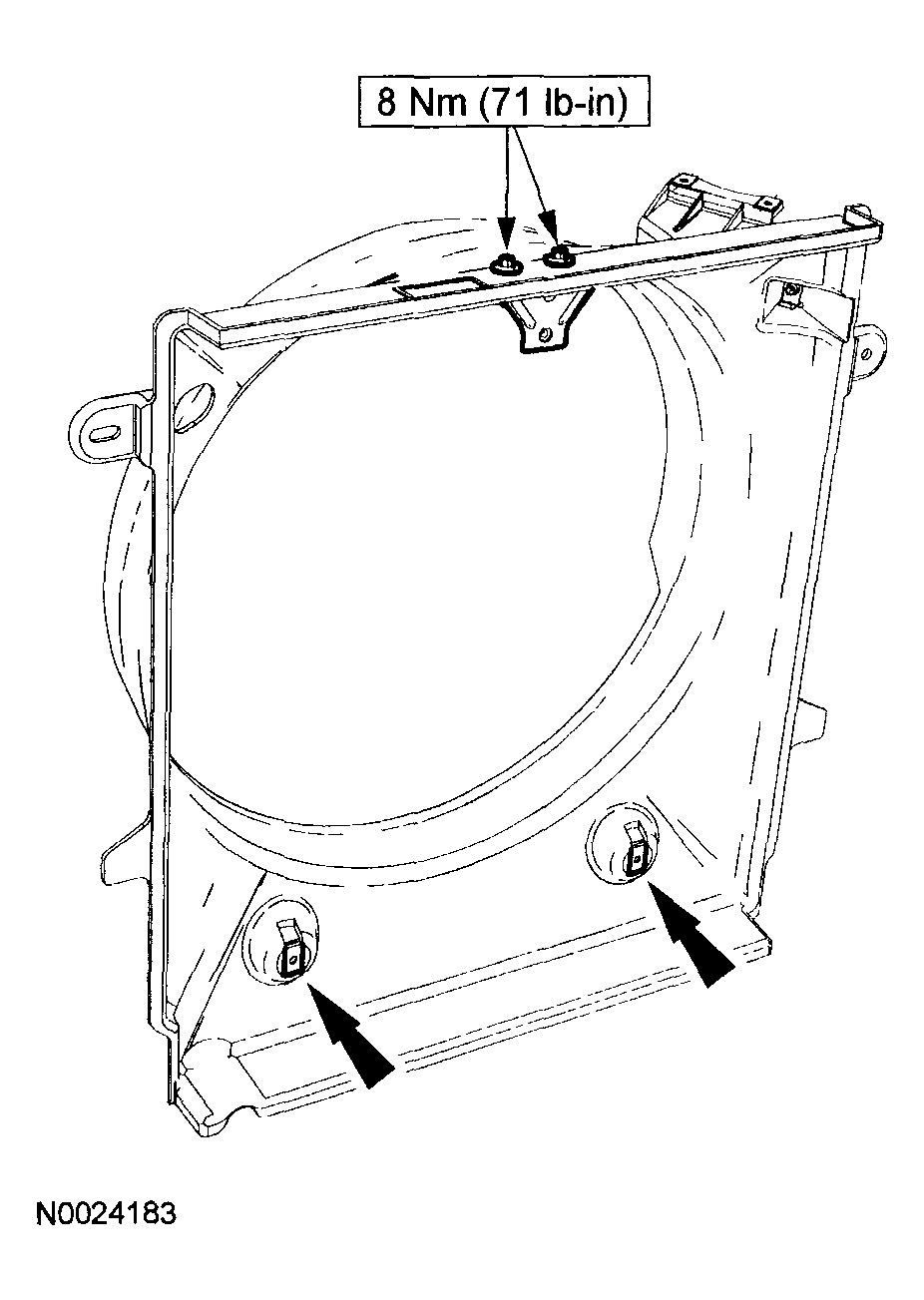

Fig 6: Removing/Installing Bolts, Bracket And Nuts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

All vehicles
