Removal and Installation

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid personal injury, do not unscrew the coolant pressure relief cap while the engine is operating or hot. The coolant system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions can result in personal injury.

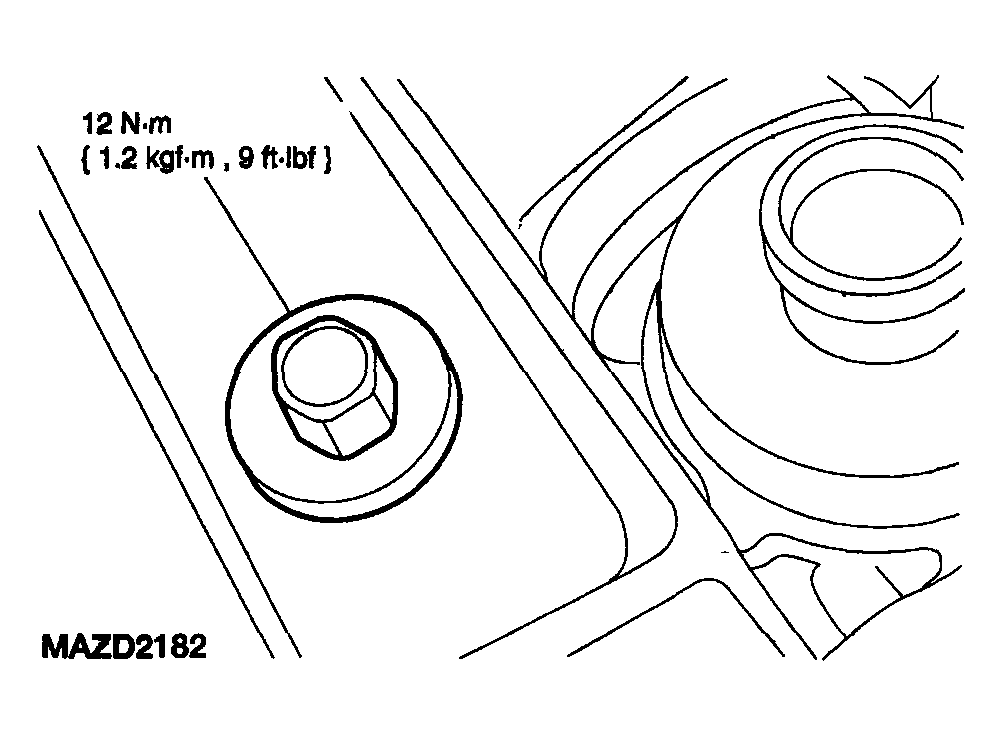

Fig 1: Removing/Installing Cruise Control Servo Mounting Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Remove the cruise control servo mounting bolt and position the servo aside.

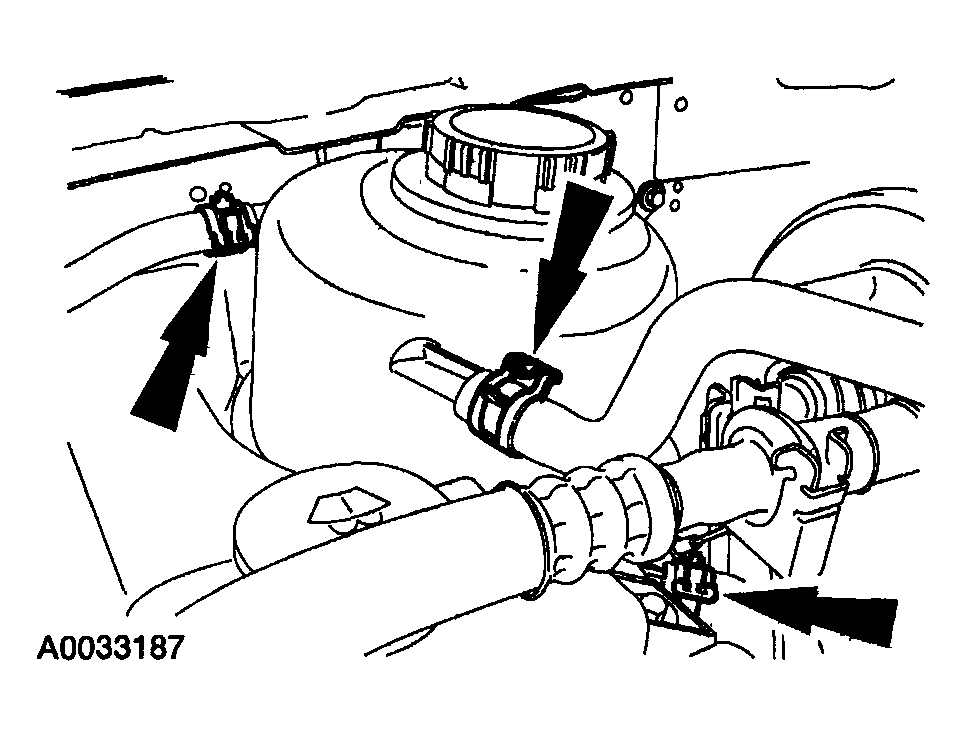

Fig 2: Disconnecting Hoses
Courtesy of MAZDA MOTORS CORP.
Disconnect the hoses and drain the engine coolant into a suitable container.

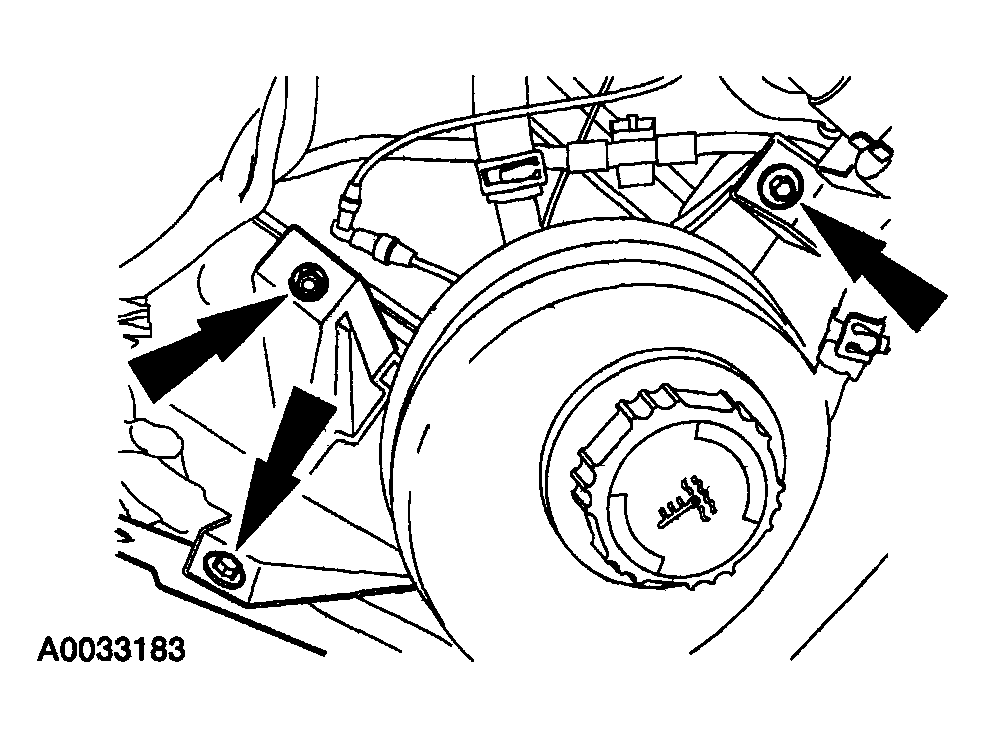

Fig 3: Removing Mounting Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the mounting bolts and remove the reservoir from the vehicle.
NOTE:
- Follow the cooling system replacement procedure. See ENGINE COOLANT REPLACEMENT - 2.3L .
To install, reverse the removal procedure.
