Clutch Pedal Free Play
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

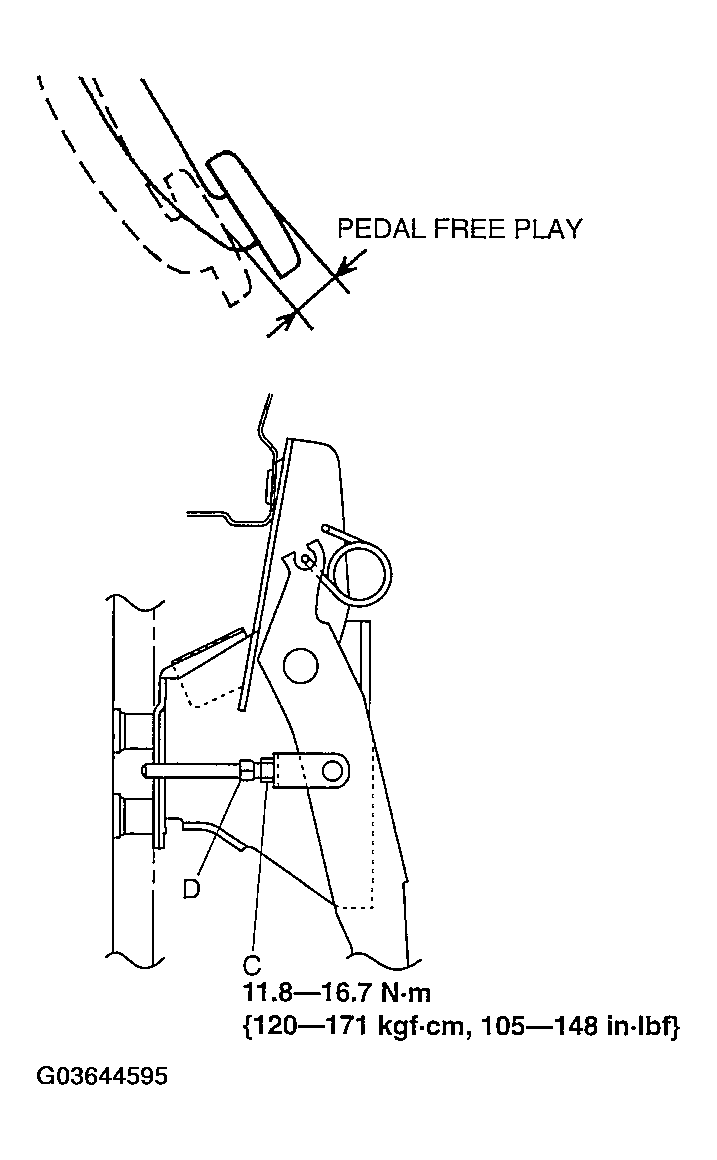

- Depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.
- If not as specified, adjust the pedal free play by loosening locknut C and turning push rod D as necessary.
Pedal free play
1.0-3.0 mm {0.04-0.11 in}
Push rod free play at clutch pedal
0.1-0.5 mm {0.004-0.020 in} (Reference value)
