Front Drive Belt Auto Tensioner

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front drive belt. (See FRONT DRIVE BELT .)
  2. Verify that the front drive belt auto tensioner moves smoothly in the operational direction.
    • Replace the front drive belt auto tensioner if necessary.
  3. Turn the front drive belt auto tensioner pulley and verify that it rotates smoothly.
    • Replace the front drive belt auto tensioner if necessary.

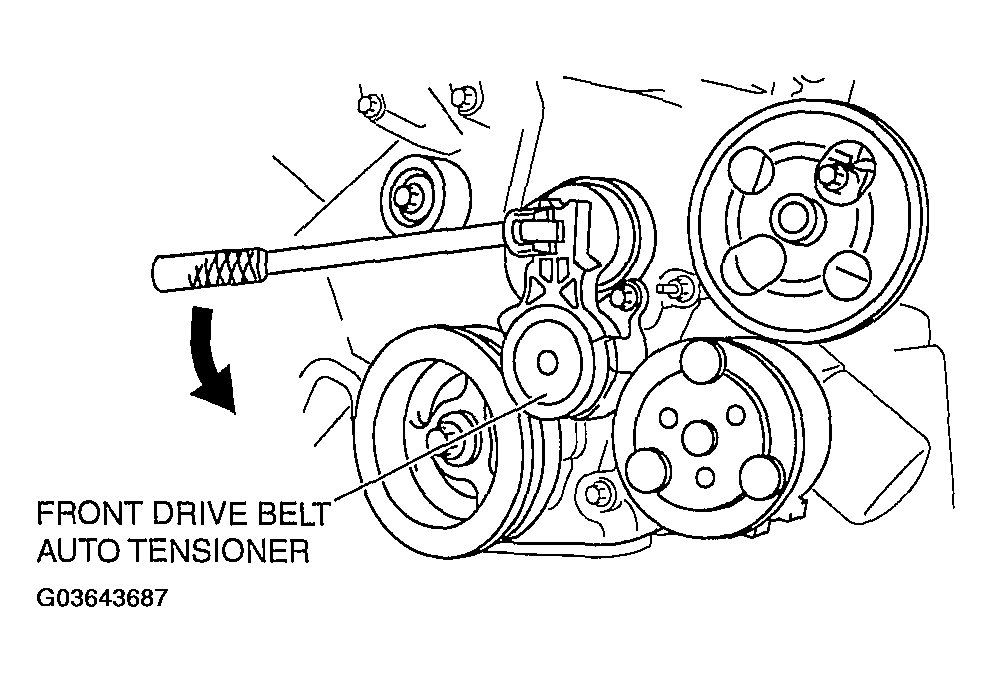

      Fig 1: Turning Front Drive Belt Auto Tensioner Pulley
      G03643687Courtesy of MAZDA MOTORS CORP.
  4. Install the front drive belt.

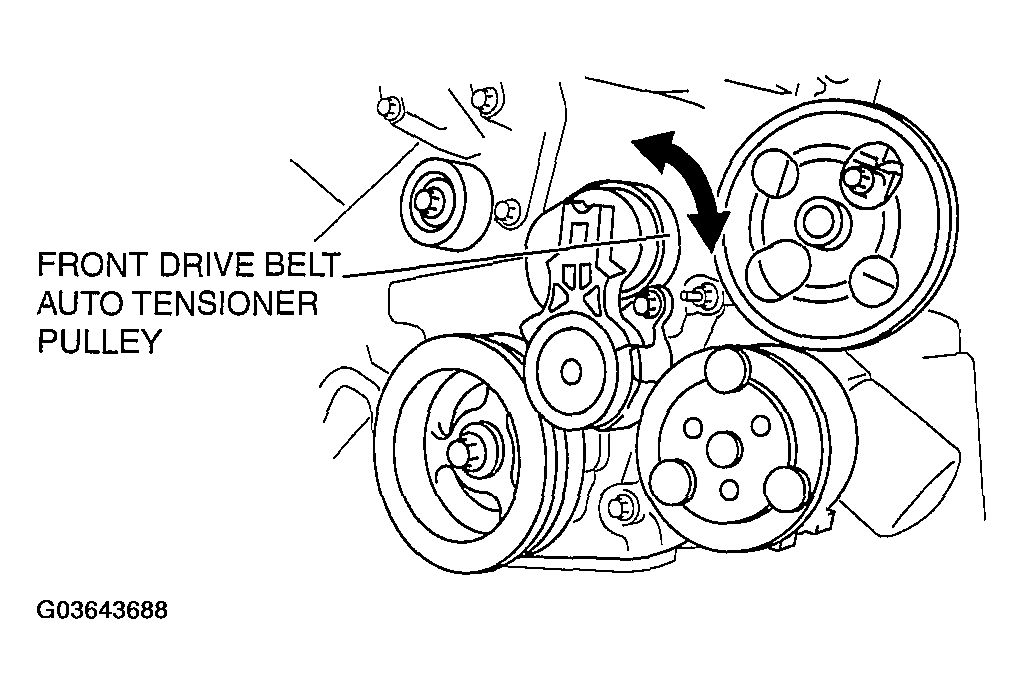

    Fig 2: Installing Front Drive Belt
    G03643688Courtesy of MAZDA MOTORS CORP.
