Disassembly Note

WARNING: This page is about a different car, the 2007 Mazda B3000, 2006 Mazda B3000, 2005 Mazda B3000, 2004 Mazda B3000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use a suitable ring expander to remove piston rings to prevent damage.

Fig 1: Removing Top Compression Ring

Courtesy of MAZDA MOTORS CORP.

Remove the top compression ring.
Remove the second compression ring.

Fig 2: Removing Second Compression Ring
Courtesy of MAZDA MOTORS CORP.
Remove the first oil control ring.

Fig 3: Removing First Oil Control Ring
Courtesy of MAZDA MOTORS CORP.
Remove the oil control spacer ring.

Fig 4: Removing Oil Control Spacer Ring
Courtesy of MAZDA MOTORS CORP.
Remove the second oil control ring.

Fig 5: Removing Second Oil Control Ring
Courtesy of MAZDA MOTORS CORP.

NOTE:

Take note of piston connecting rod assembly and mark the connecting rod and the piston to ensure proper orientation during reassembly.

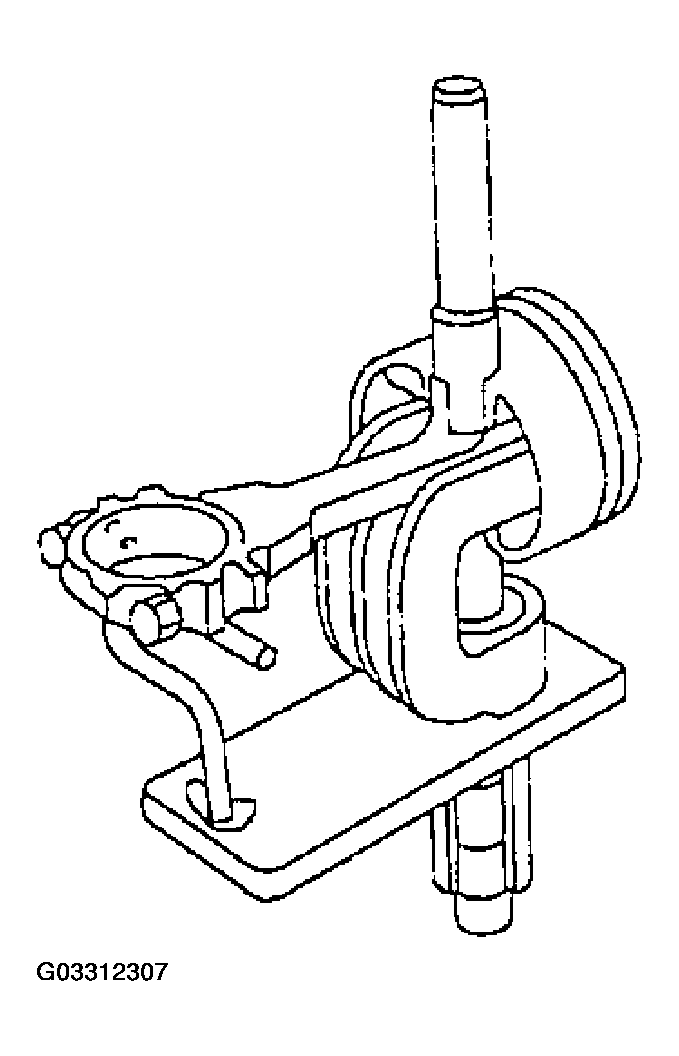

Fig 6: Removing Piston Pin From Piston Connecting Rod Assembly

Courtesy of MAZDA MOTORS CORP.

Use a suitable piston pin tool to press the piston pin out of the piston connecting rod assembly.
Remove the connecting rod from the piston.

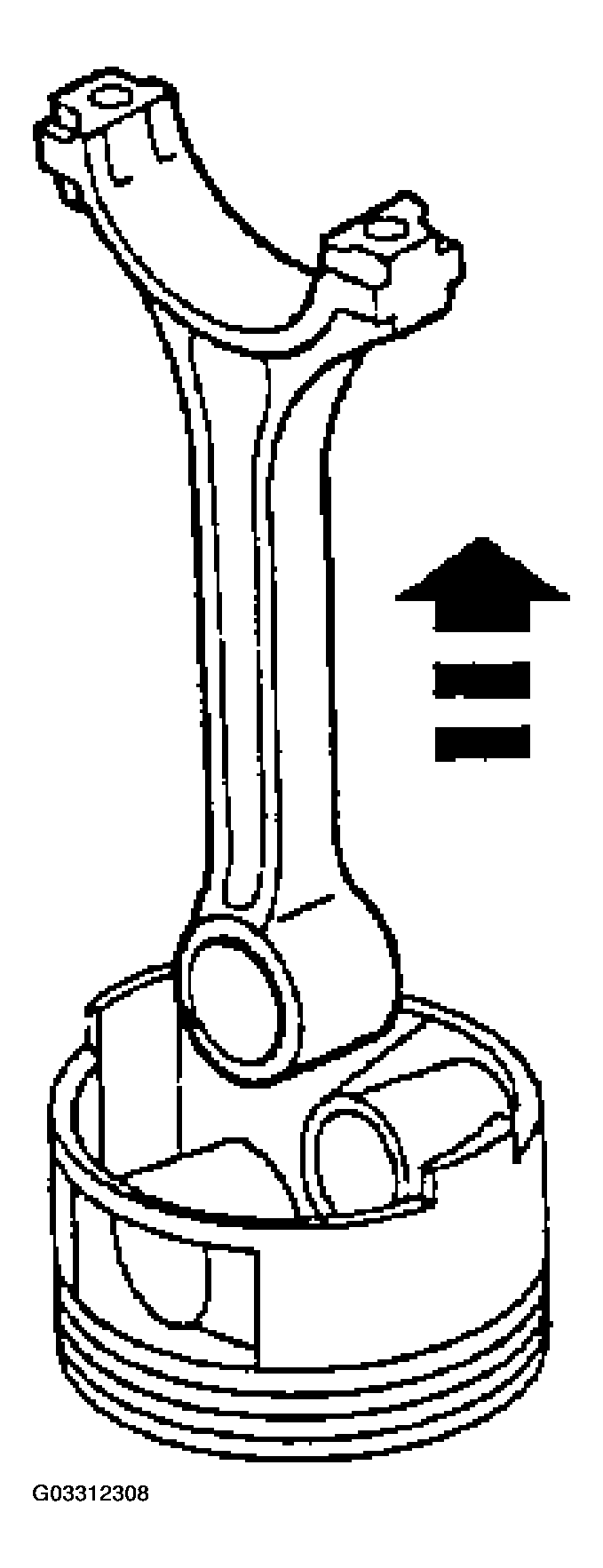

Fig 7: Removing Connecting Rod From Piston
Courtesy of MAZDA MOTORS CORP.
Clean and inspect the connecting rod and the piston. Refer to PISTON INSPECTION and CONNECTING ROD INSPECTION .
