Cylinder Head Inspection: Notes

WARNING: This page is about a different car, the 2007 Mazda B3000, 2006 Mazda B3000, 2005 Mazda B3000, 2004 Mazda B3000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not remove more than 0.25 mm (0.010) of material from cylinder head.
  1. Inspect the cylinder head for flatness using a flat edge and a feeler gauge. If the cylinder head is distorted, resurface the cylinder head within specification.

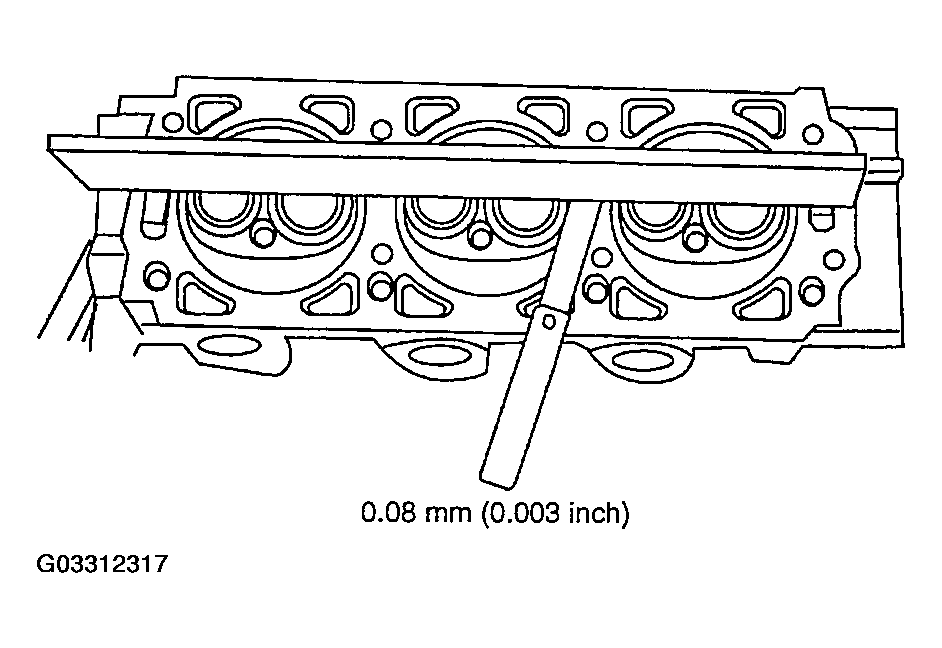

    Fig 1: Checking Cylinder Head Flatness
    G03312317Courtesy of MAZDA MOTORS CORP.
