Bearing Inspection
WARNING: This page is about a different car, the 2007 Mazda B3000, 2006 Mazda B3000, 2005 Mazda B3000, 2004 Mazda B3000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

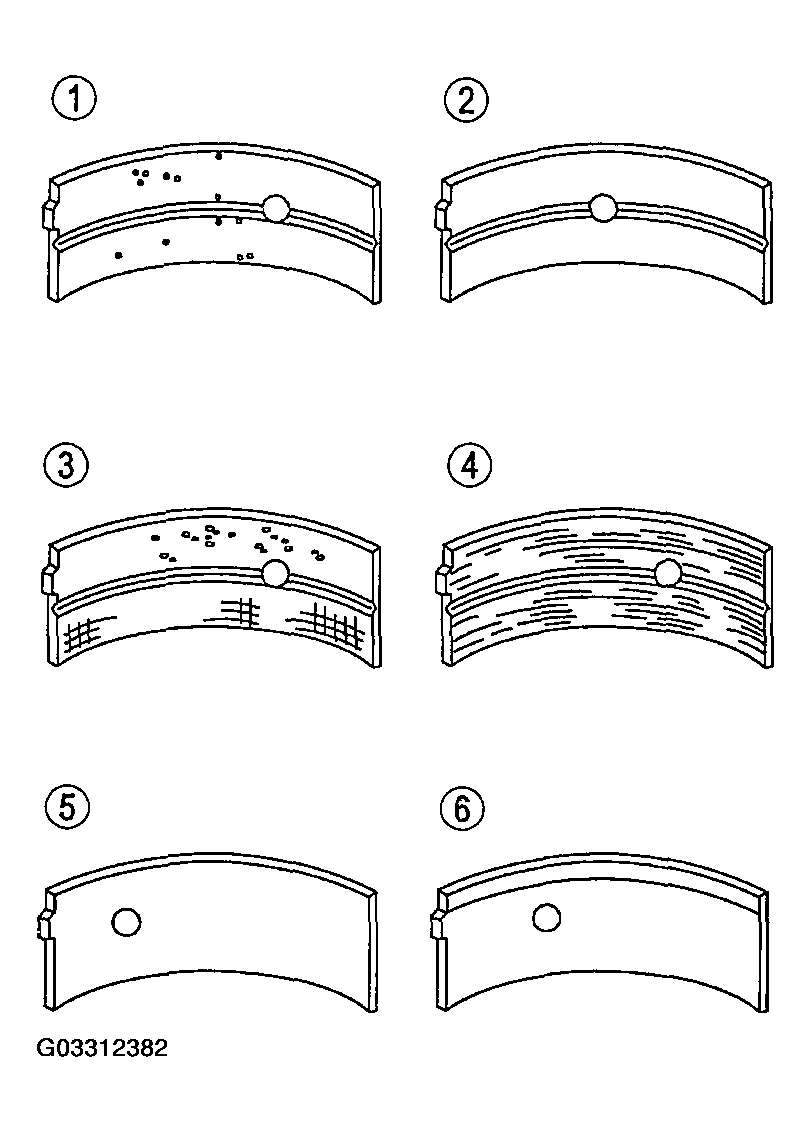

- Inspect the bearings for the following defects. Possible causes are shown:
- Cratering - fatigue failure (1)
- Spot polishing - improper seating (2)
- Scratching - dirty (3)
- Base exposed - poor lubrication (4)
- Both edges worn - journal damaged (5)
- One edge worn - journal tapered or bearing not seated (6)
