Camshaft End Play Inspection

WARNING: This page is about a different car, the 2007 Mazda B3000, 2006 Mazda B3000, 2005 Mazda B3000, 2004 Mazda B3000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve tappets. Refer to ENGINE DISASSEMBLY/ASSEMBLY .
  2. Use a suitable Dial Indicator With Bracketry to measure the camshaft end play.
  3. Position the camshaft to the rear of the cylinder block.
  4. Zero the Dial Indicator With Bracketry.
  5. Move the camshaft to the front of the cylinder block. Note and record the camshaft end play.
    1. Refer to SPECIFICATIONS . If the camshaft end play exceeds specification, replace the camshaft thrust plate. Refer to ENGINE DISASSEMBLY/ASSEMBLY .

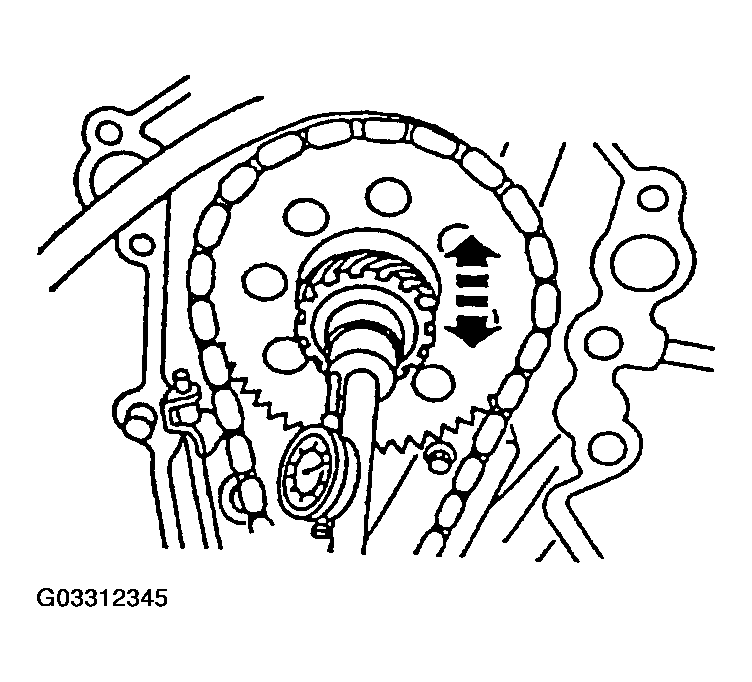

    Fig 1: Measuring Camshaft End Play
    G03312345Courtesy of MAZDA MOTORS CORP.
