Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. .
Remove the RH catalyst monitor sensor. Refer to CATALYST MONITOR SENSOR .

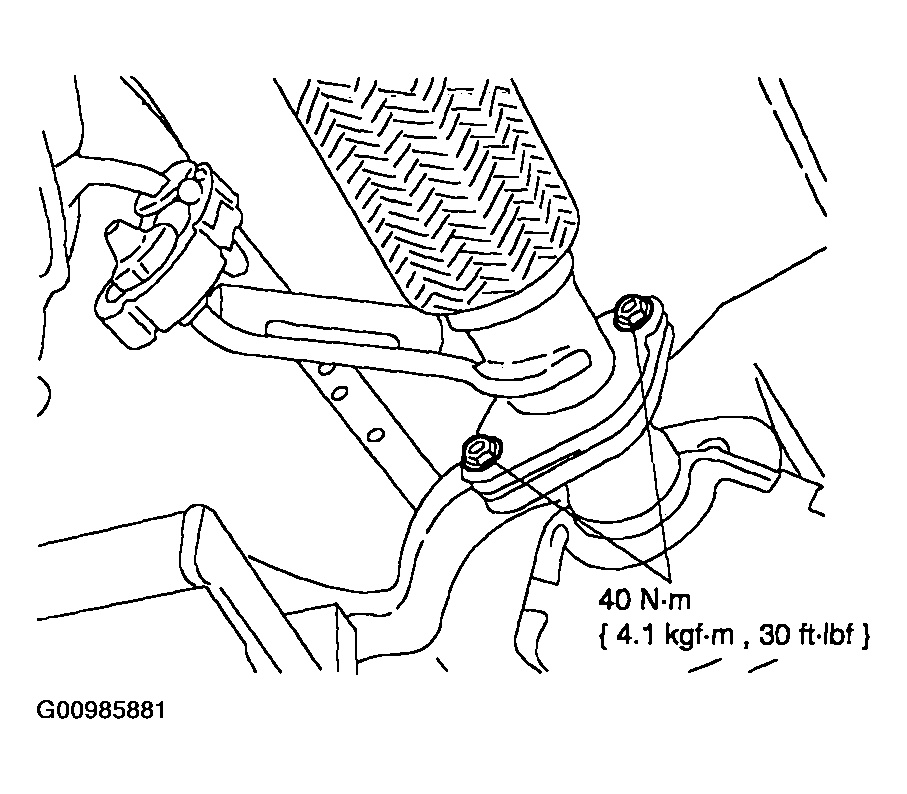

Fig 1: Separating Flexible Y-Pipe From Manifold
Courtesy of MAZDA MOTORS CORP.
Remove and discard the two nuts and separate the flexible Y-pipe from the manifold.

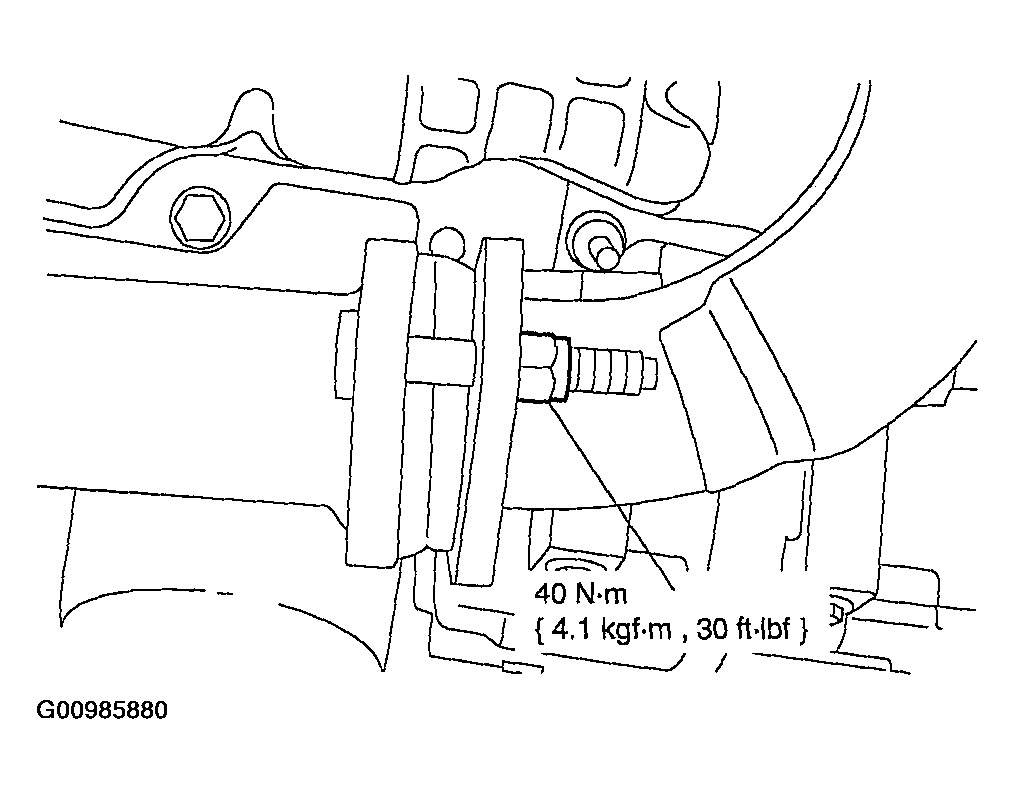

Fig 2: Removing Y-Pipe Nuts
Courtesy of MAZDA MOTORS CORP.
Remove and discard the nuts.
Discard the gasket.

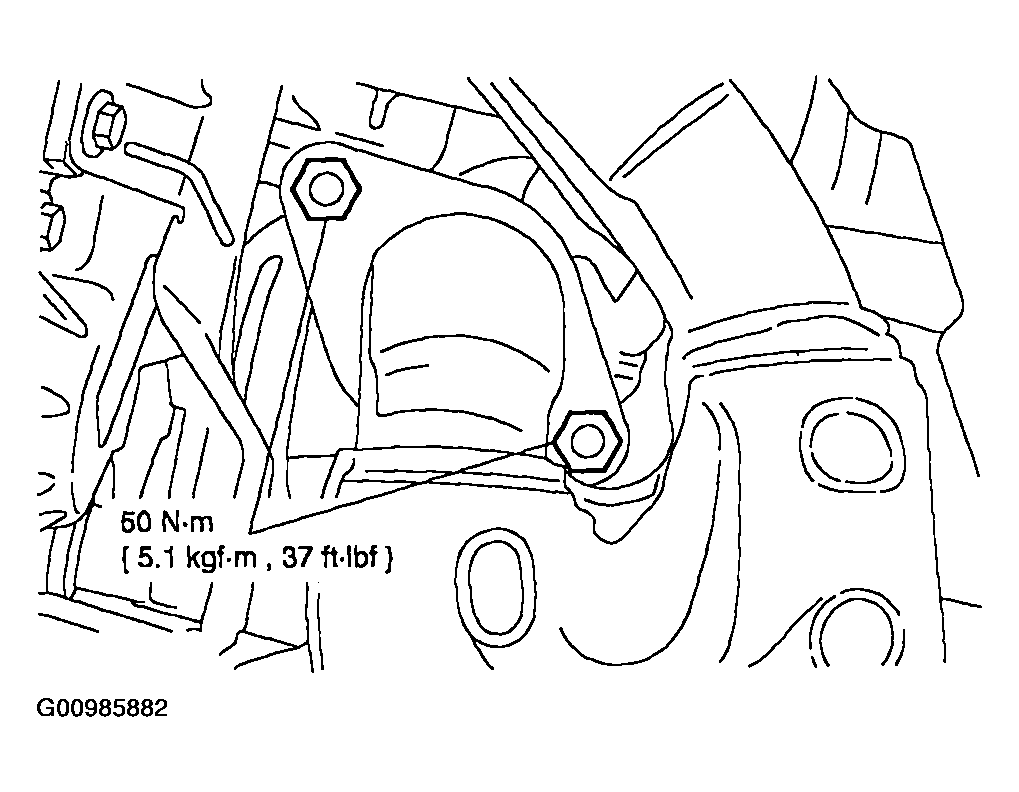

Fig 3: Removing Flexible Pipe Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.
Discard the gasket.

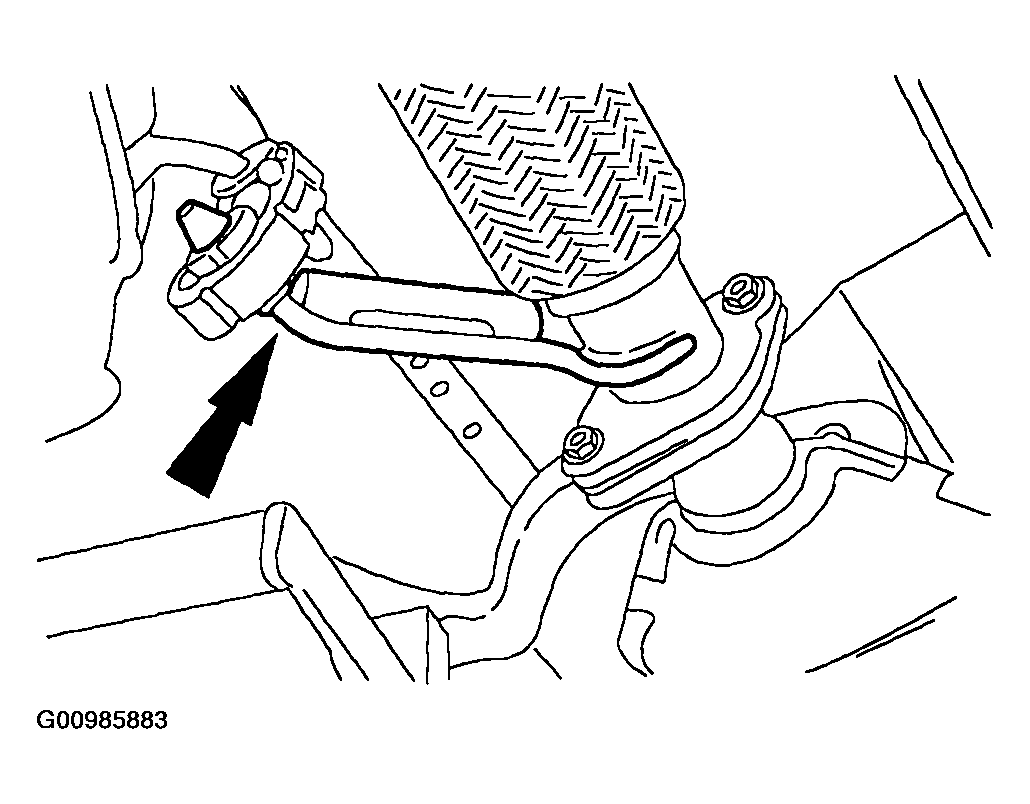

Fig 4: Removing Flexible Pipe
Courtesy of MAZDA MOTORS CORP.
Remove the flexible pipe.
- Disconnect from the hanger.
To install, reverse the removal procedure.
- Install a new gasket.
- Install new nuts.
