DTC P0605, P0606, P0614, P1562, P1600, P1601, P1602, P1603, P1604, P1605, P1608, P1609, P1621, P1622, P1623, P1633, P1639: Pcm Malfunction

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

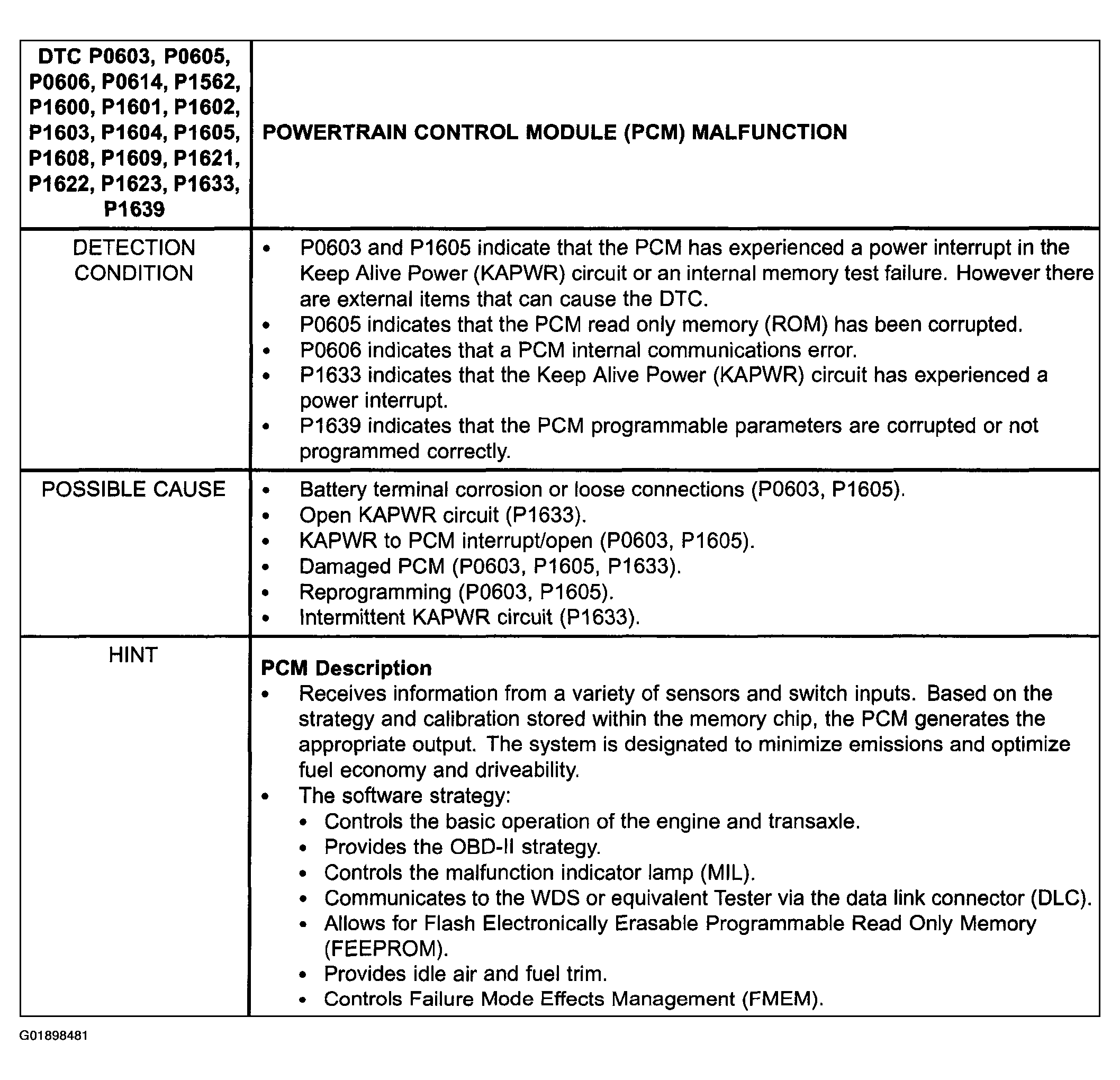

Fig 1: Powertrain Control Module Malfunction Troubleshooting Procedure
G01898481Courtesy of FORD MOTOR CO.
Fig 2: Powertrain Control Module Malfunction Inspection Procedure (1 Of 2)
G00983528Courtesy of FORD MOTOR CO.
Fig 3: Powertrain Control Module Malfunction Inspection Procedure (2 Of 2)
G00983529Courtesy of FORD MOTOR CO.
