DTC P0440, P0441, P0443, P0444, P0445, P0446: EVAP Canister Purge Solenoid Malfunction

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

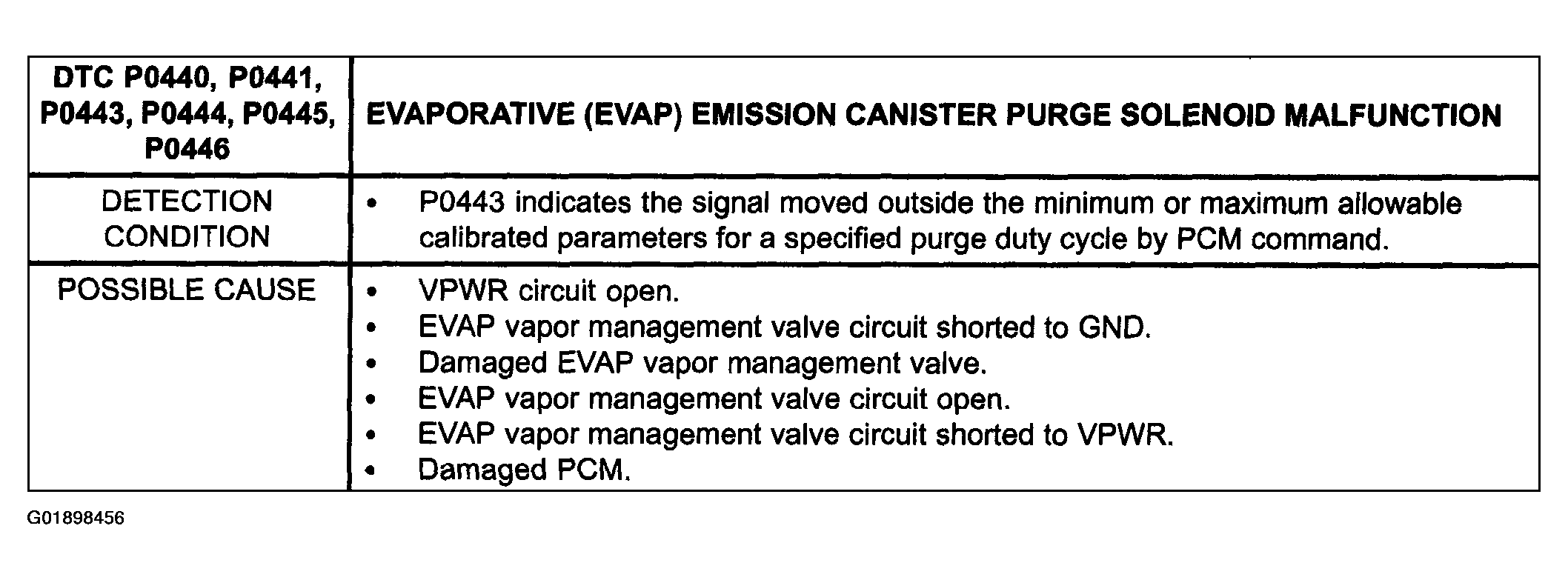

Fig 1: Evaporative Emission Canister Purge Solenoid Malfunction Troubleshooting Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

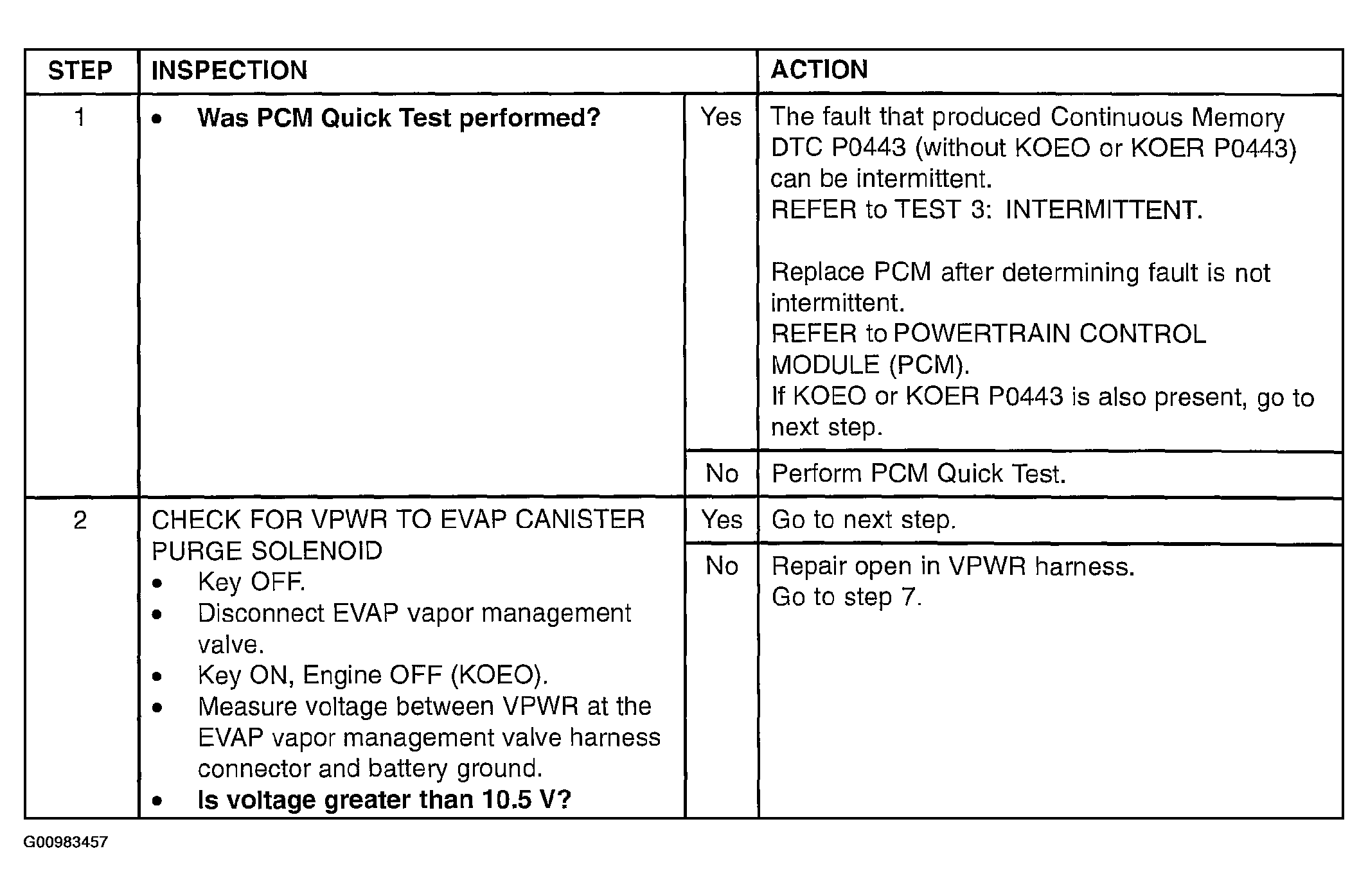

Fig 2: Evaporative Emission Canister Purge Solenoid Malfunction Troubleshooting Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.

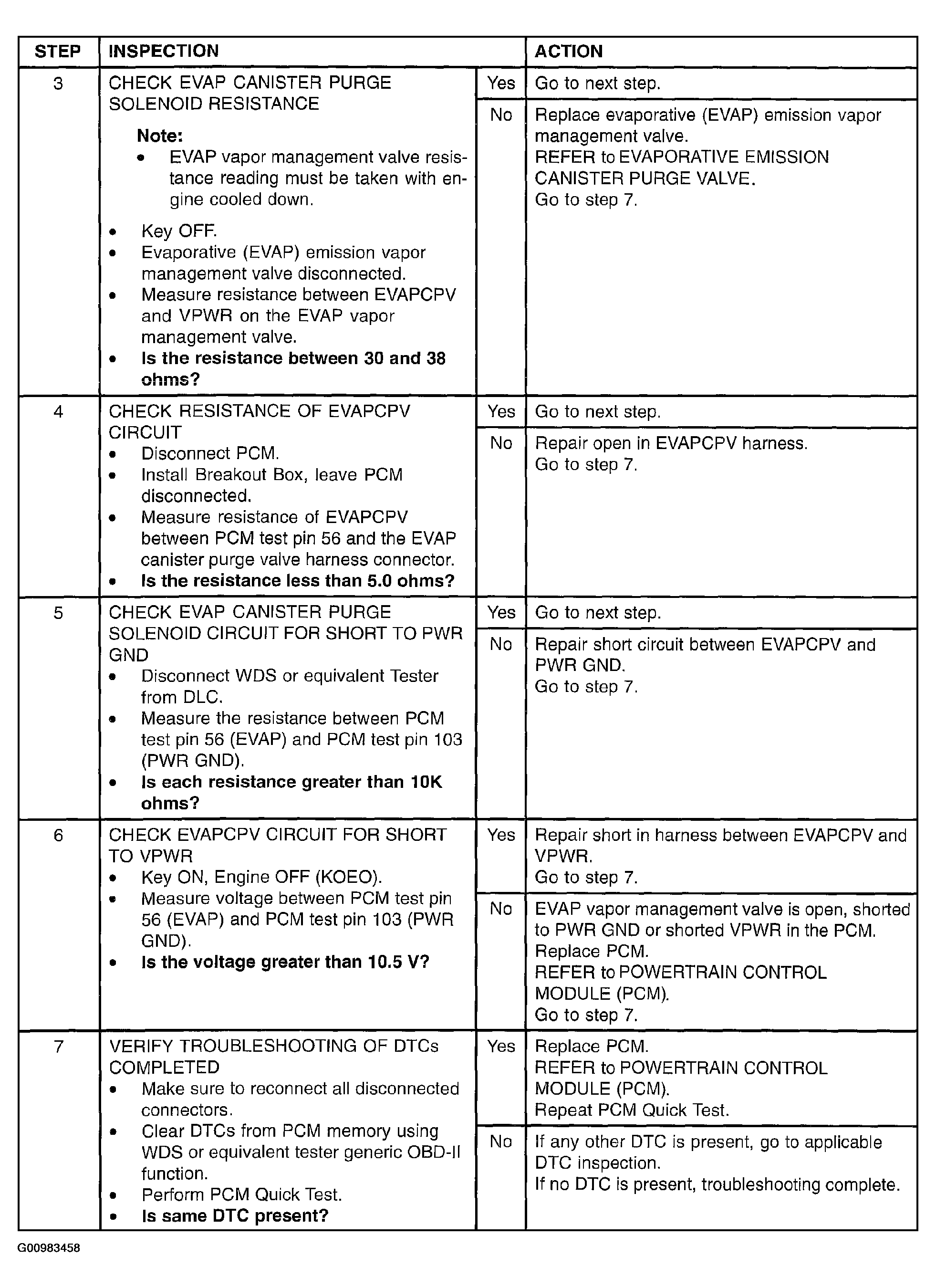

Fig 3: Evaporative Emission Canister Purge Solenoid Malfunction Inspection Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

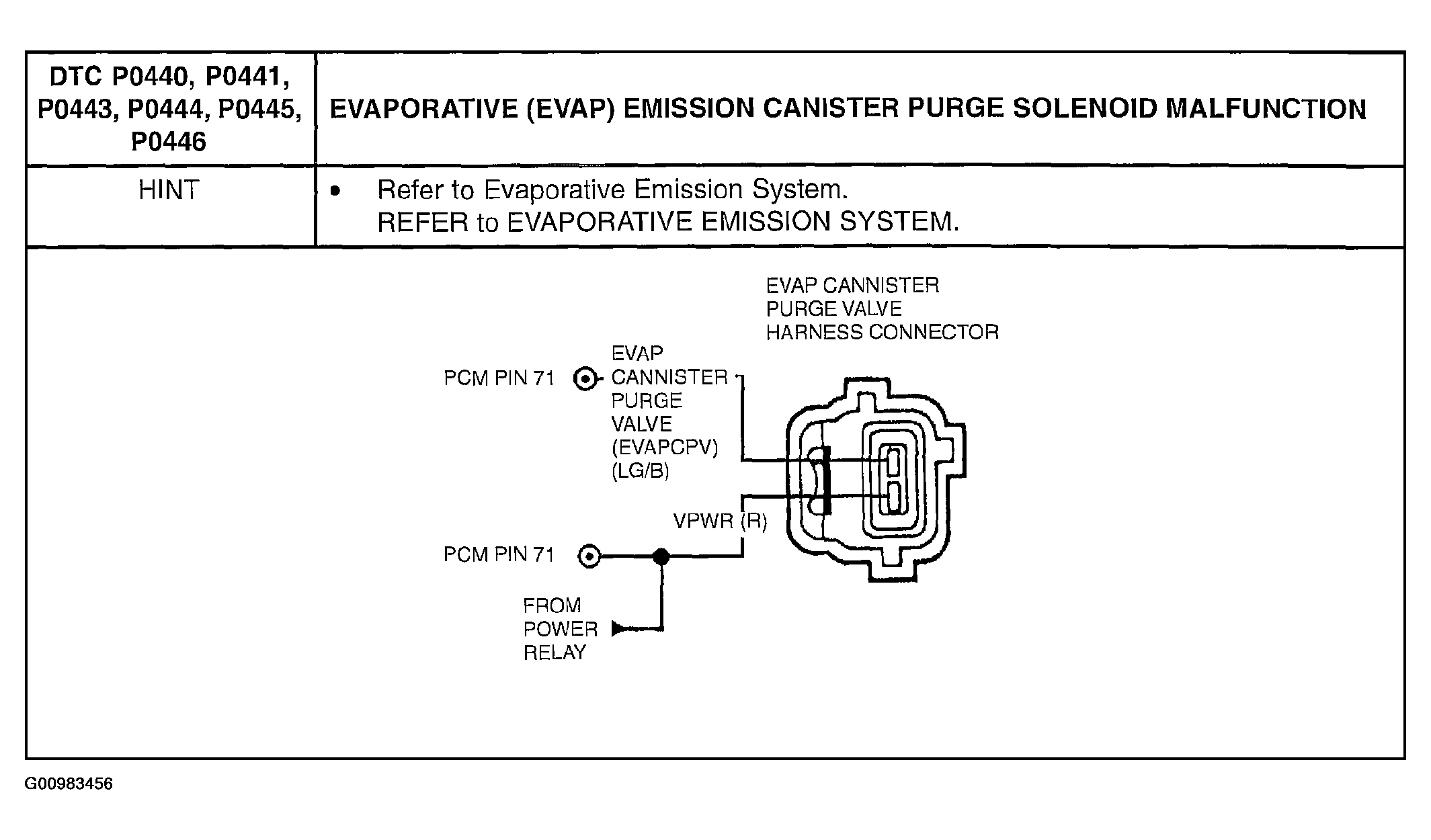

Fig 4: Evaporative Emission Canister Purge Solenoid Malfunction Inspection Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.
