DTC P0120, P0121, P0122, P0123, P0510, P1120, P1121, P1122, P1123, P1124, P1125, P1126, P1771, P1772, P1791: TP Sensor Circuit Malfunction

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

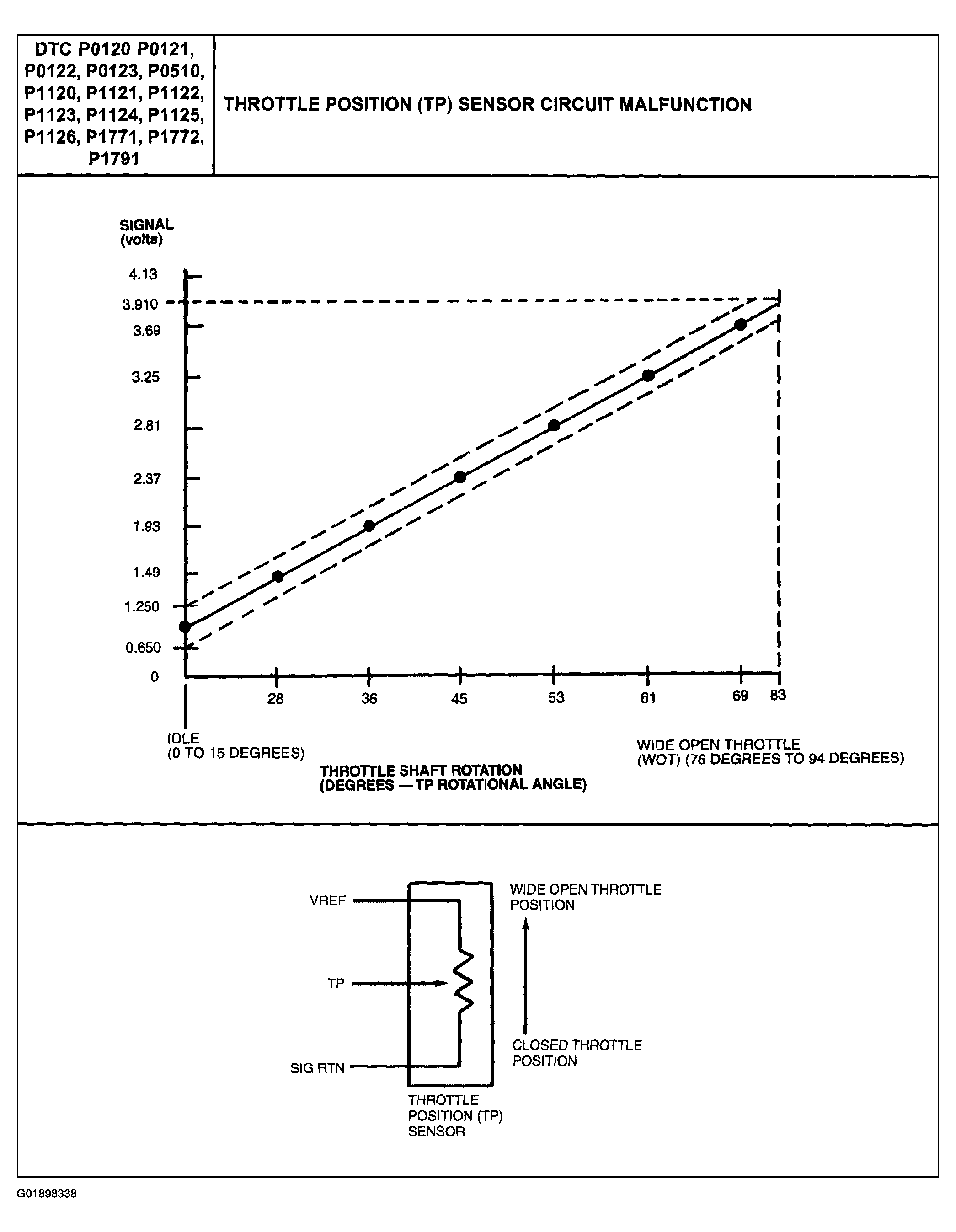

Fig 1: Throttle Position Sensor Circuit Malfunction Troubleshooting Procedure (1 Of 4)

Courtesy of FORD MOTOR CO.

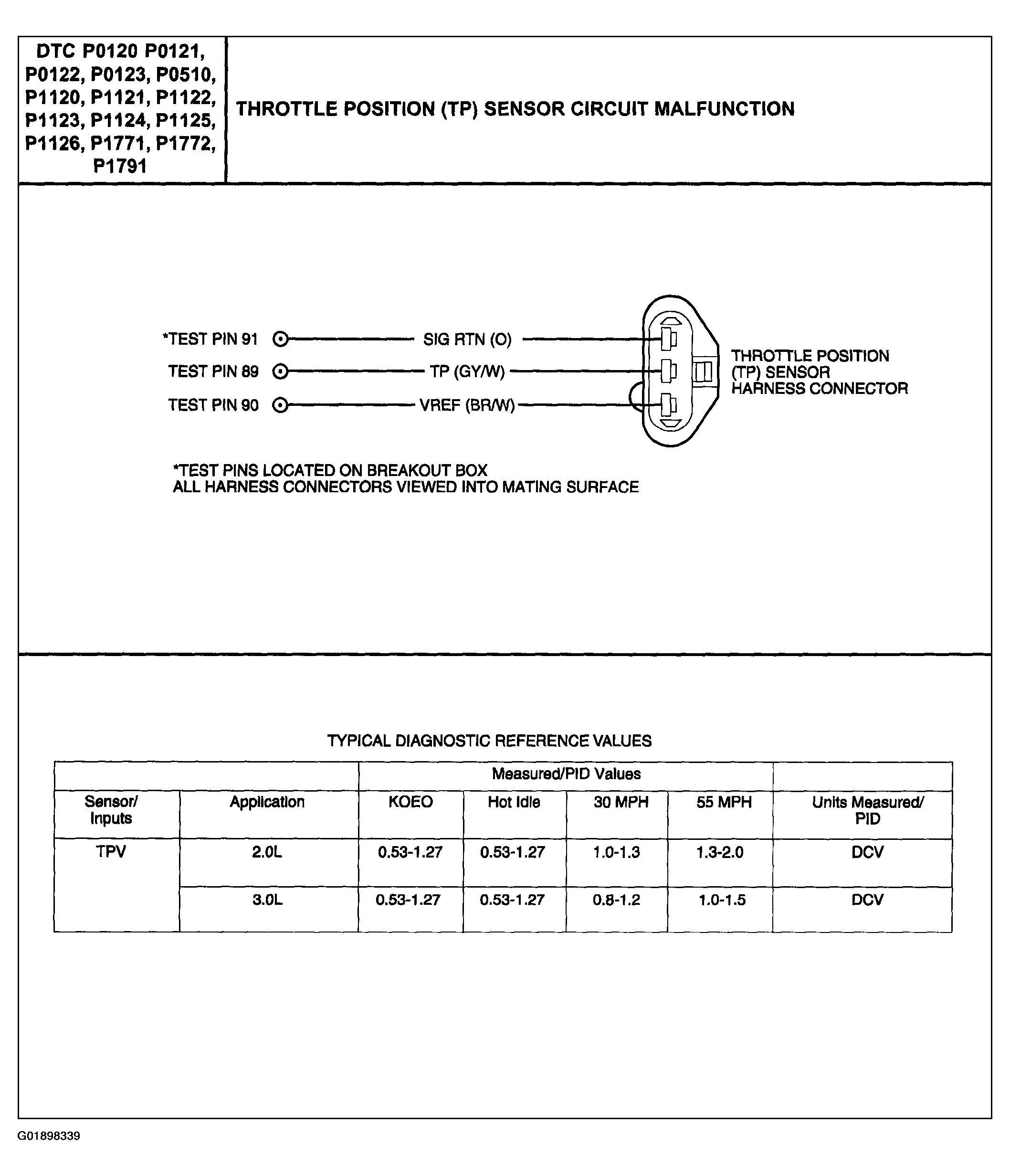

Fig 2: Throttle Position Sensor Circuit Malfunction Troubleshooting Procedure (2 Of 4)

Courtesy of FORD MOTOR CO.

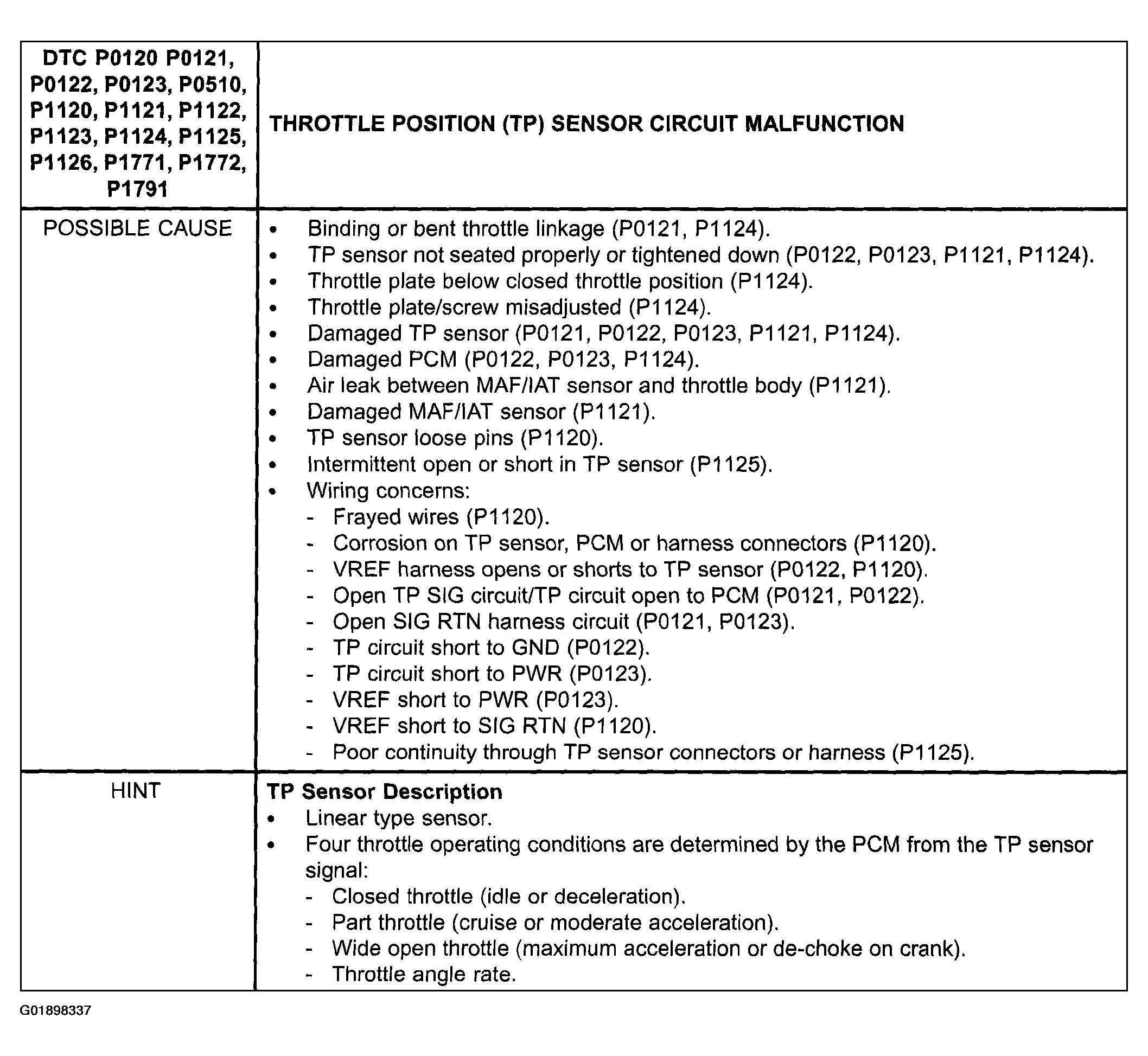

Fig 3: Throttle Position Sensor Circuit Malfunction Troubleshooting Procedure (3 Of 4)

Courtesy of FORD MOTOR CO.

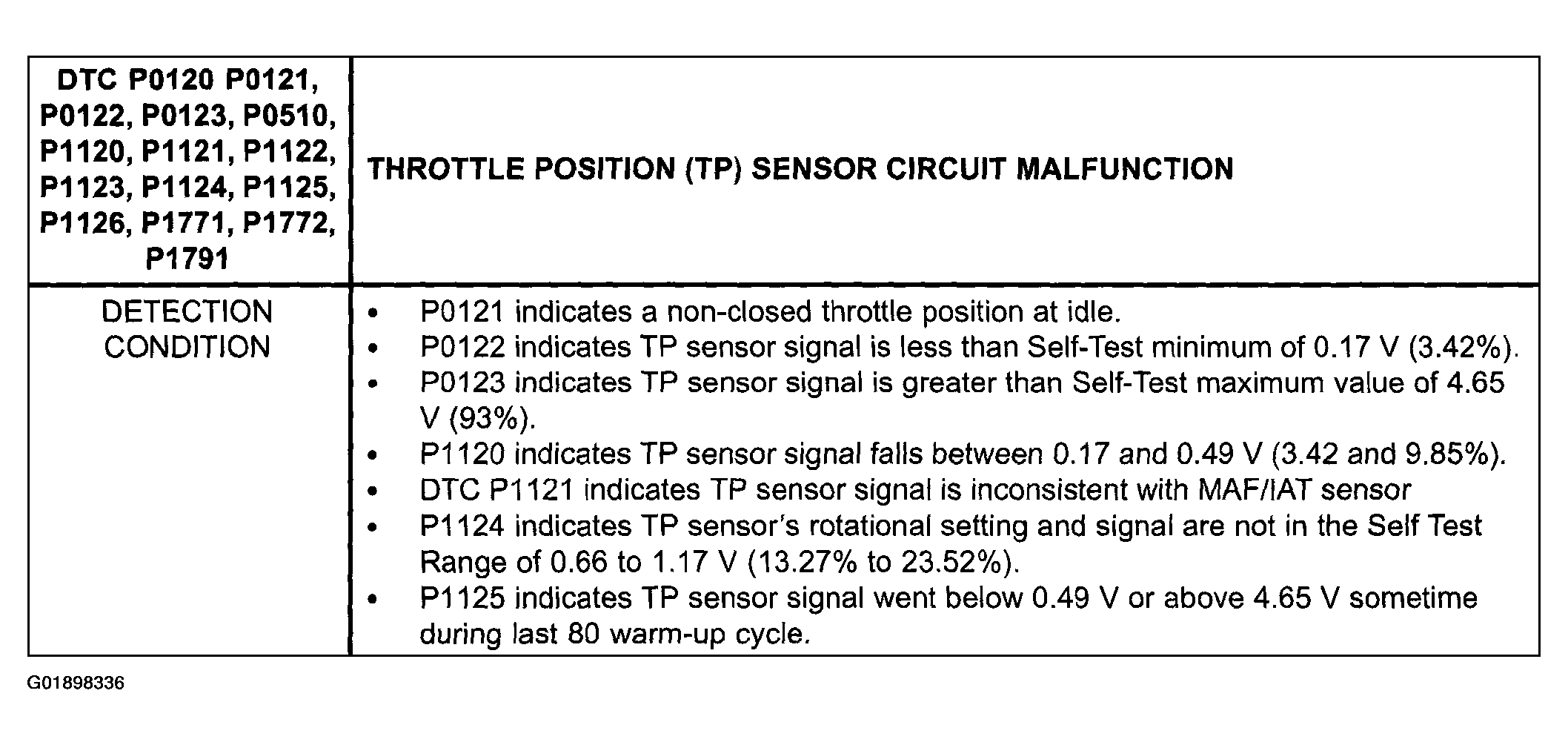

Fig 4: Throttle Position Sensor Circuit Malfunction Troubleshooting Procedure (4 Of 4)

Courtesy of FORD MOTOR CO.

Fig 5: Throttle Position Sensor Circuit Malfunction Inspection Procedure (1 Of 6)

Courtesy of FORD MOTOR CO.

Fig 6: Throttle Position Sensor Circuit Malfunction Inspection Procedure (2 Of 6)

Courtesy of FORD MOTOR CO.

Fig 7: Throttle Position Sensor Circuit Malfunction Inspection Procedure (3 Of 6)

Courtesy of FORD MOTOR CO.

Fig 8: Throttle Position Sensor Circuit Malfunction Inspection Procedure (4 Of 6)

Courtesy of FORD MOTOR CO.

Fig 9: Throttle Position Sensor Circuit Malfunction Inspection Procedure (5 Of 6)

Courtesy of FORD MOTOR CO.

Fig 10: Throttle Position Sensor Circuit Malfunction Inspection Procedure (6 Of 6)

Courtesy of FORD MOTOR CO.
