DTC P0110, P0111, P0112, P0113, P0115, P0117, P0118, P0125, P0128, P0298, P1110, P1112, P1113, P1116, P1117, P1285, P1288, P1289, P1290, P1299, P1798: IAT & ECT /CHT Sensors

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

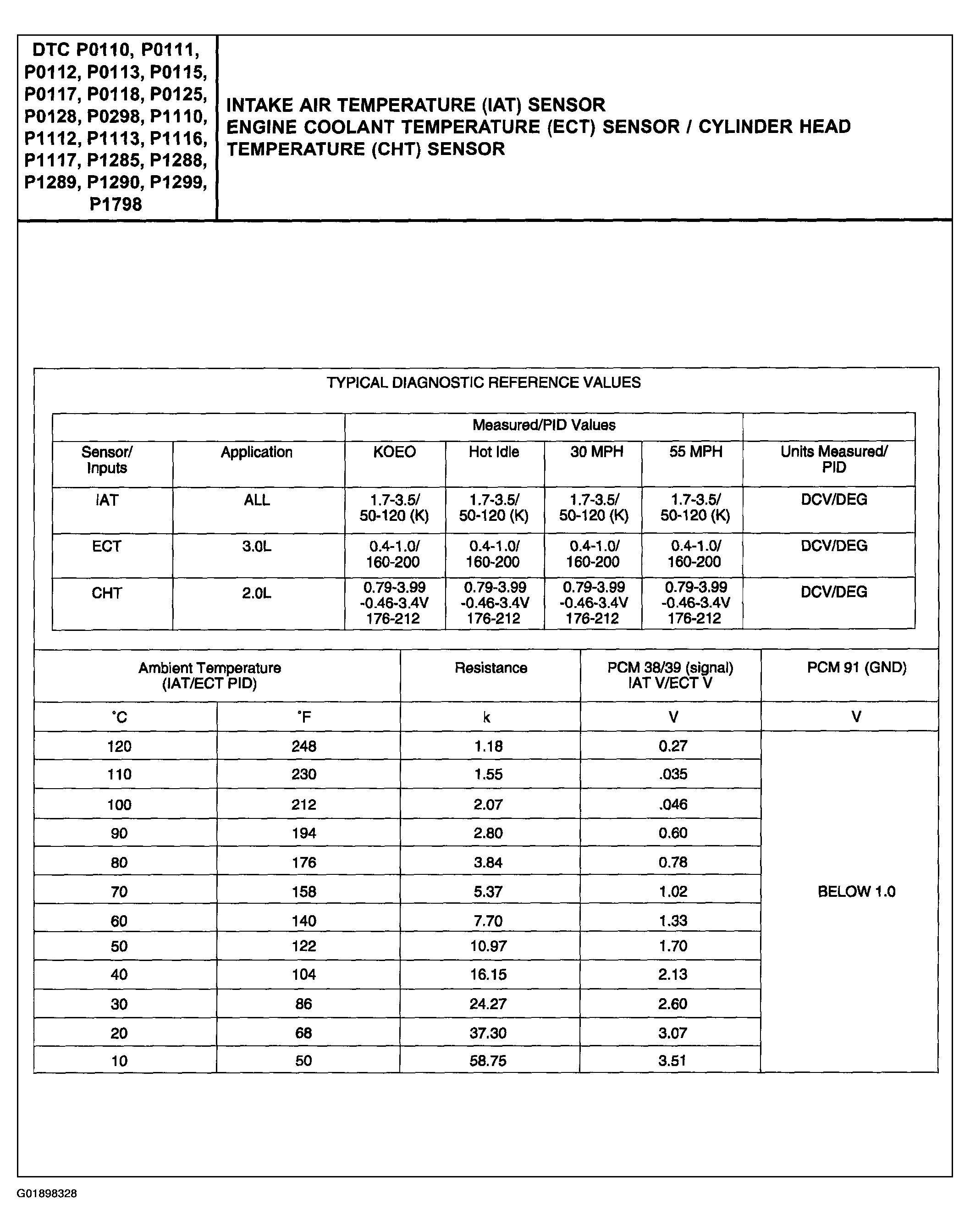

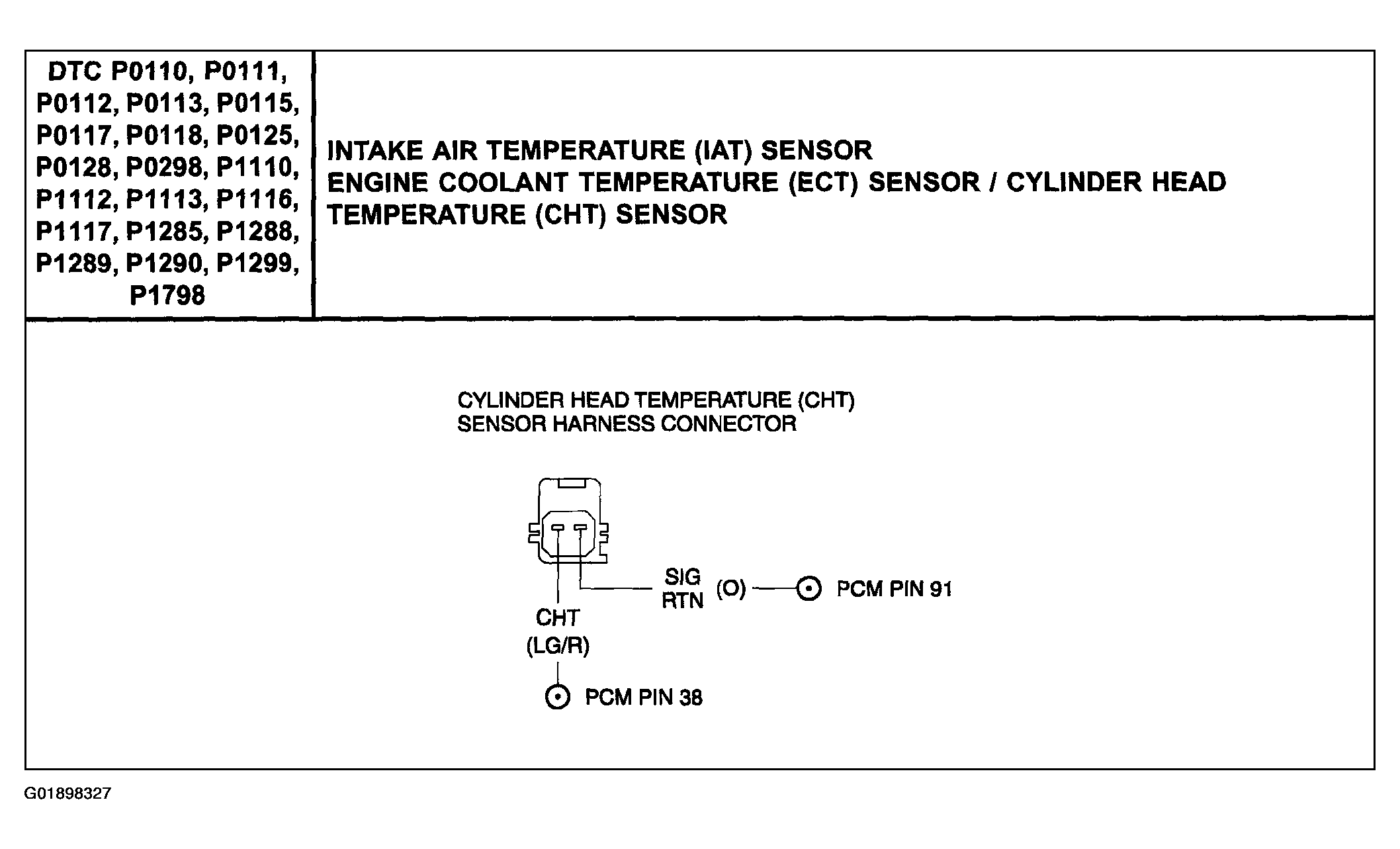

Fig 1: IAT, ECT And CHT Sensor Troubleshooting Procedure (1 Of 9)

Courtesy of FORD MOTOR CO.

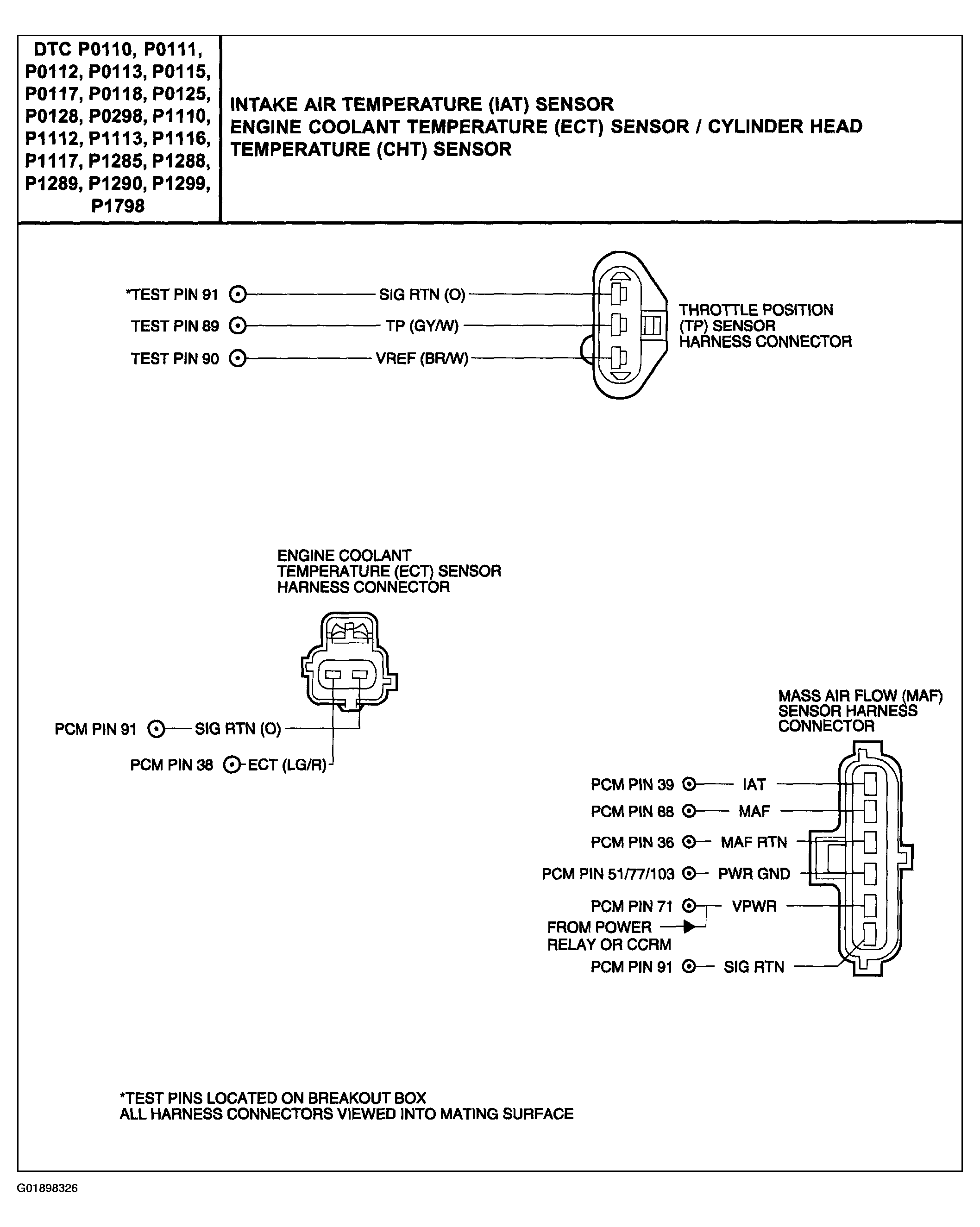

Fig 2: IAT, ECT And CHT Sensor Troubleshooting Procedure (2 Of 9)

Courtesy of FORD MOTOR CO.

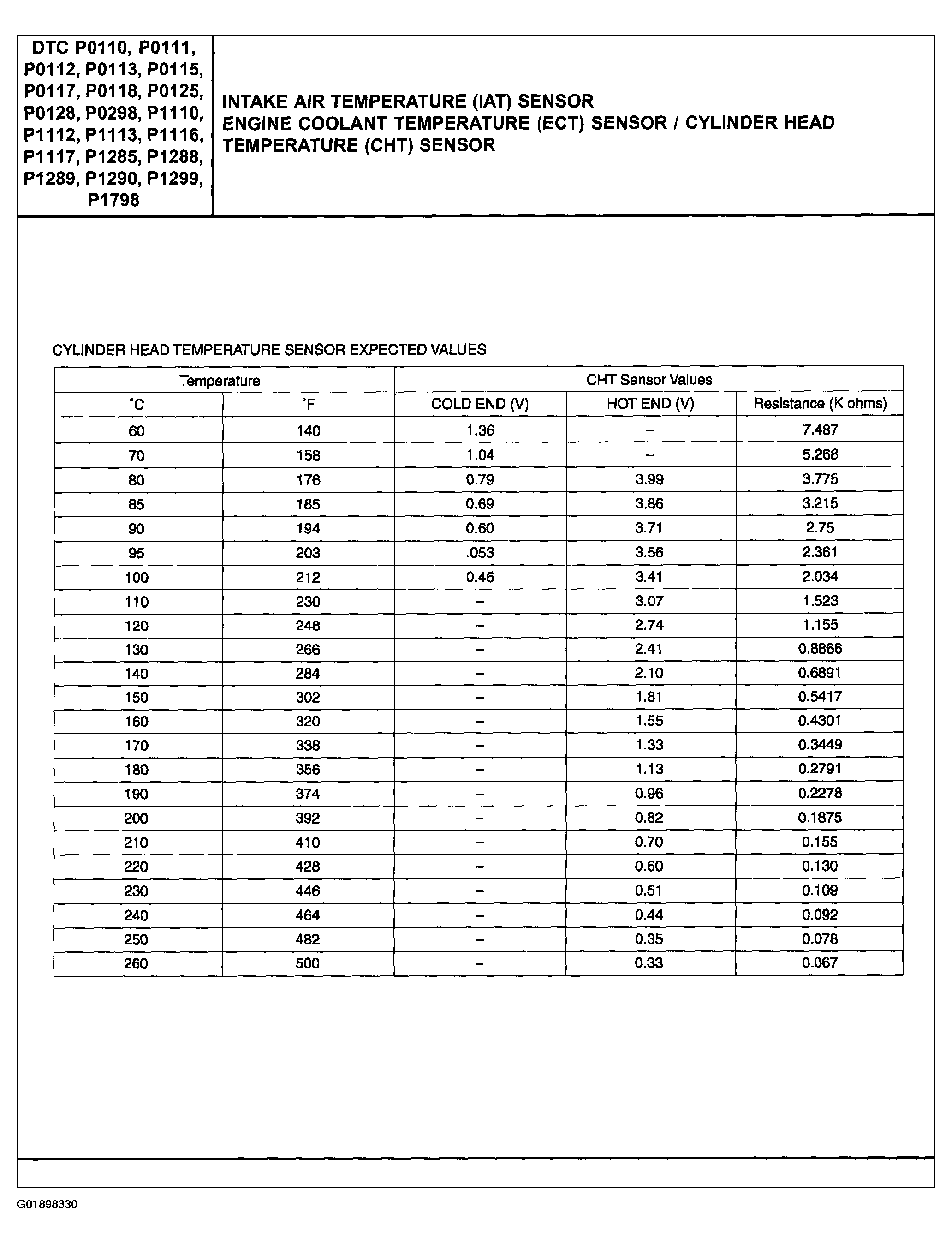

Fig 3: IAT, ECT And CHT Sensor Troubleshooting Procedure (3 Of 9)

Courtesy of FORD MOTOR CO.

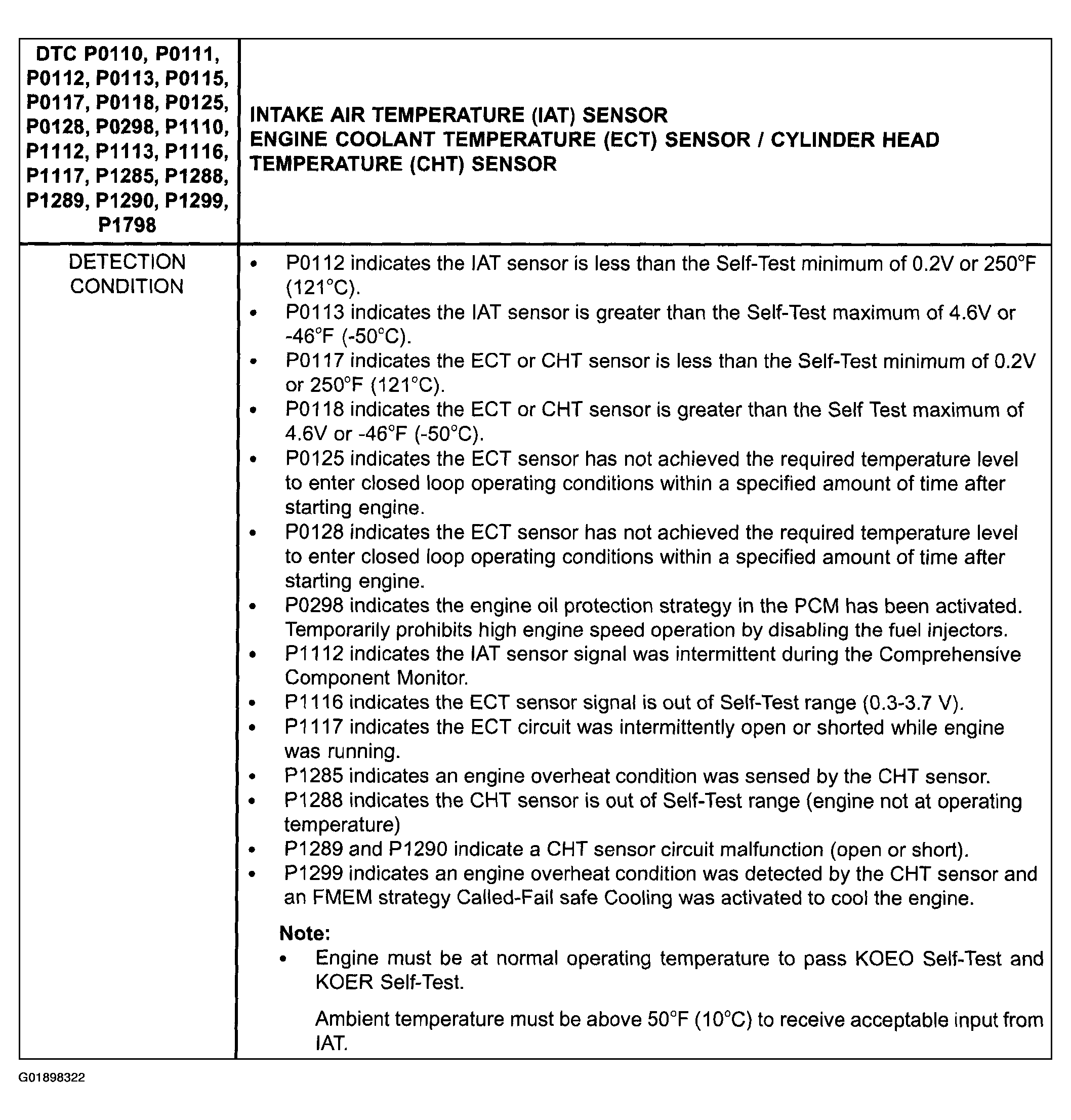

Fig 4: IAT, ECT And CHT Sensor Troubleshooting Procedure (4 Of 9)

Courtesy of FORD MOTOR CO.

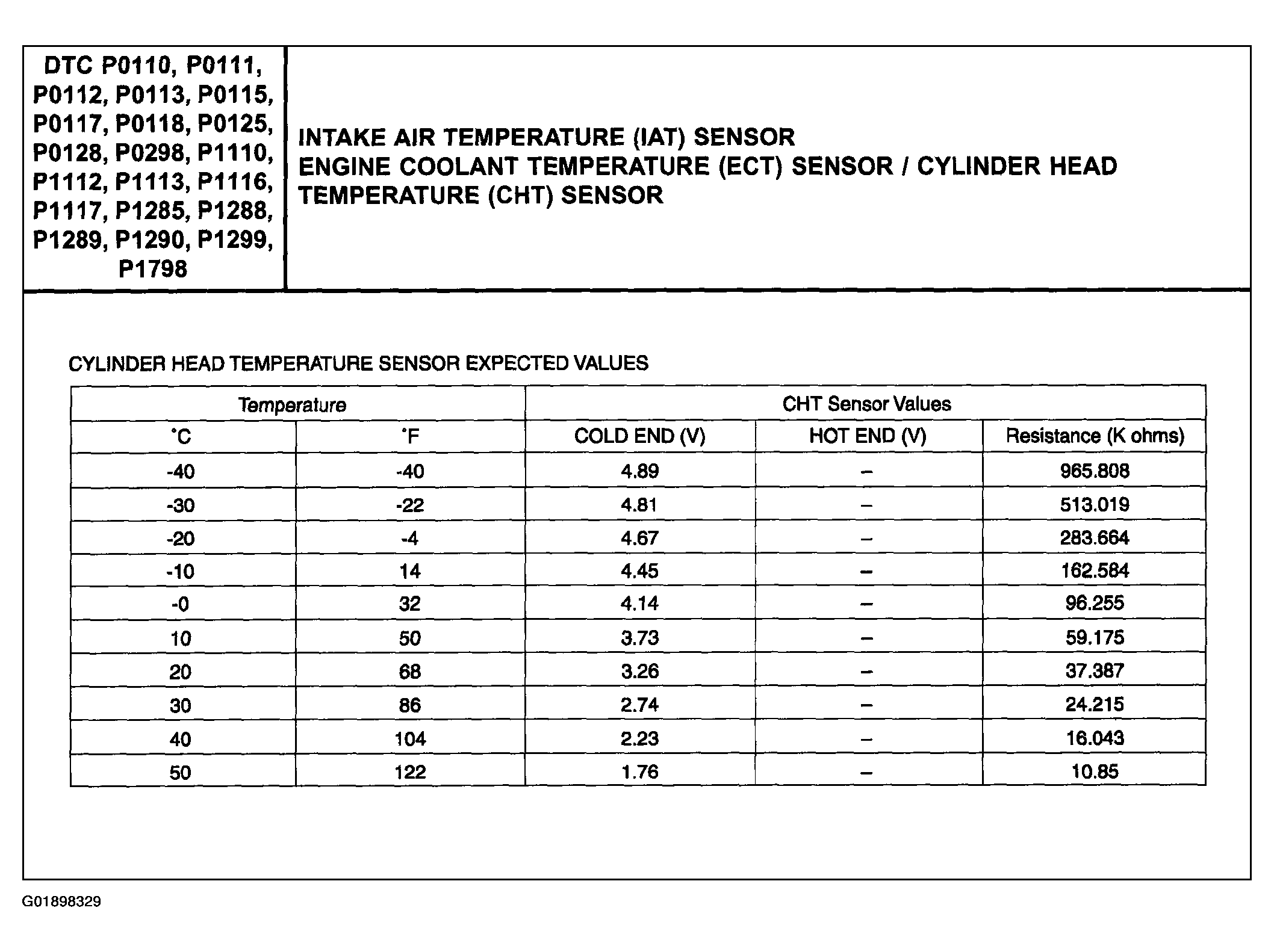

Fig 5: IAT, ECT And CHT Sensor Troubleshooting Procedure (5 Of 9)

Courtesy of FORD MOTOR CO.

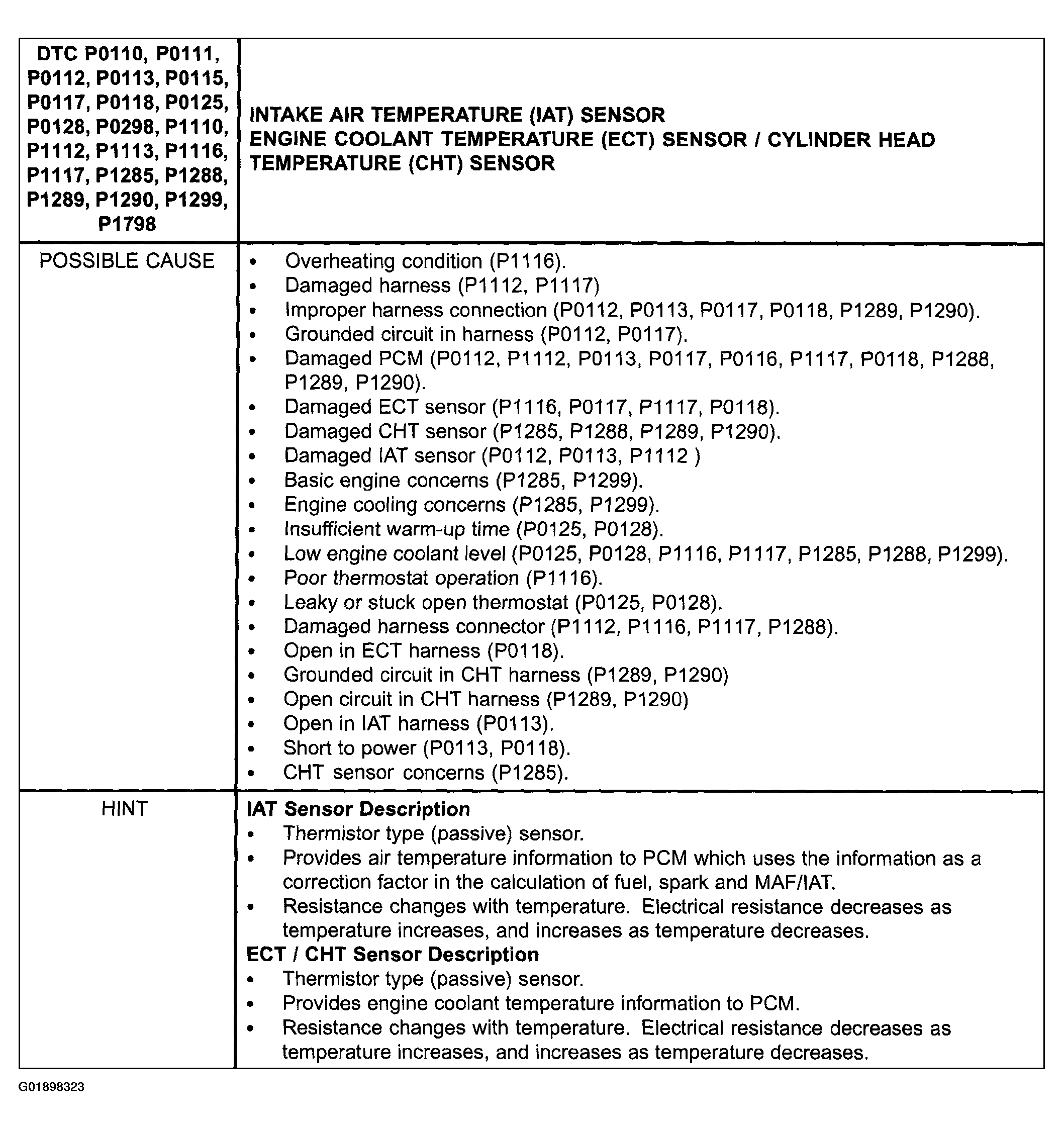

Fig 6: IAT, ECT And CHT Sensor Troubleshooting Procedure (6 Of 9)

Courtesy of FORD MOTOR CO.

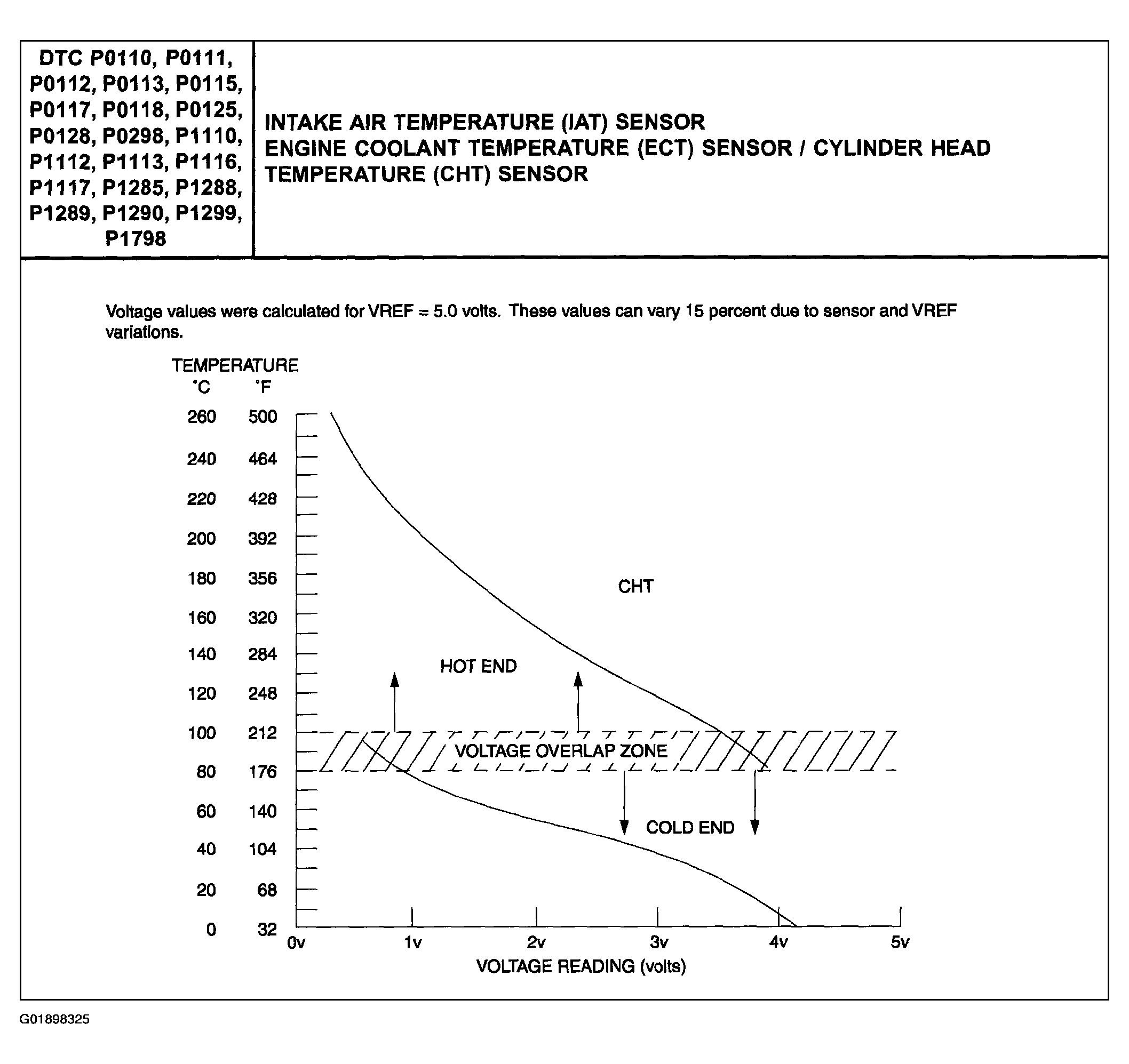

Fig 7: IAT, ECT And CHT Sensor Troubleshooting Procedure (7 Of 9)

Courtesy of FORD MOTOR CO.

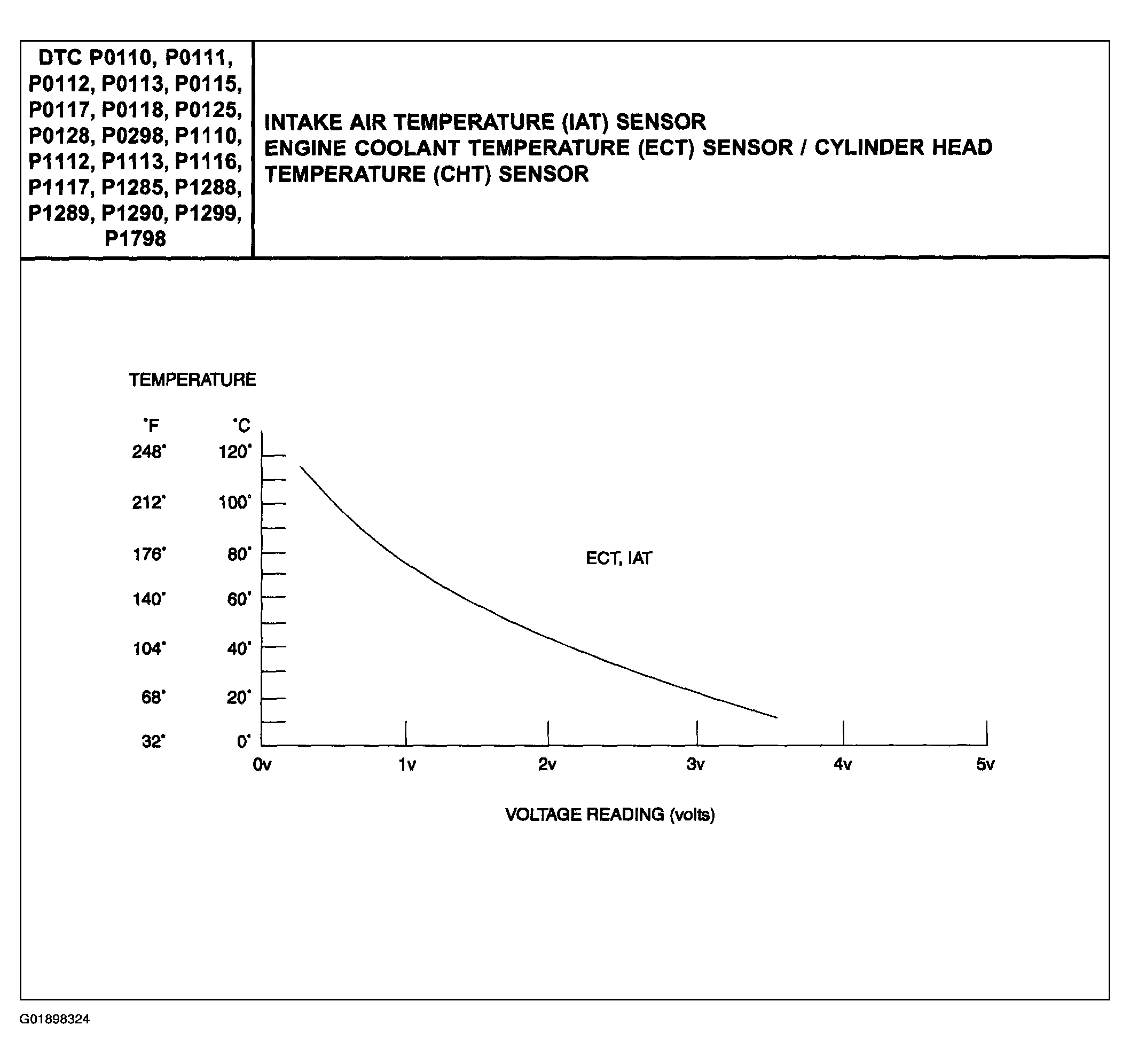

Fig 8: IAT, ECT And CHT Sensor Troubleshooting Procedure (8 Of 9)

Courtesy of FORD MOTOR CO.

Fig 9: IAT, ECT And CHT Sensor Troubleshooting Procedure (9 Of 9)

Courtesy of FORD MOTOR CO.

Fig 10: IAT, ECT And CHT Sensor Inspection Procedure (1 Of 5)

Courtesy of FORD MOTOR CO.

Fig 11: IAT, ECT And CHT Sensor Inspection Procedure (2 Of 5)

Courtesy of FORD MOTOR CO.

Fig 12: IAT, ECT And CHT Sensor Inspection Procedure (3 Of 5)

Courtesy of FORD MOTOR CO.

Fig 13: IAT, ECT And CHT Sensor Inspection Procedure (4 Of 5)

Courtesy of FORD MOTOR CO.

Fig 14: IAT, ECT And CHT Sensor Inspection Procedure (5 Of 5)

Courtesy of FORD MOTOR CO.
