DTC P0032, P0051, P0052, P0057, P0058, P0134, P0135, P0141, P0155, P0161, P1135, P1136, P1141, P1142, P1153, P1154, P1169, P1170: Ho2S Heater Circuit

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

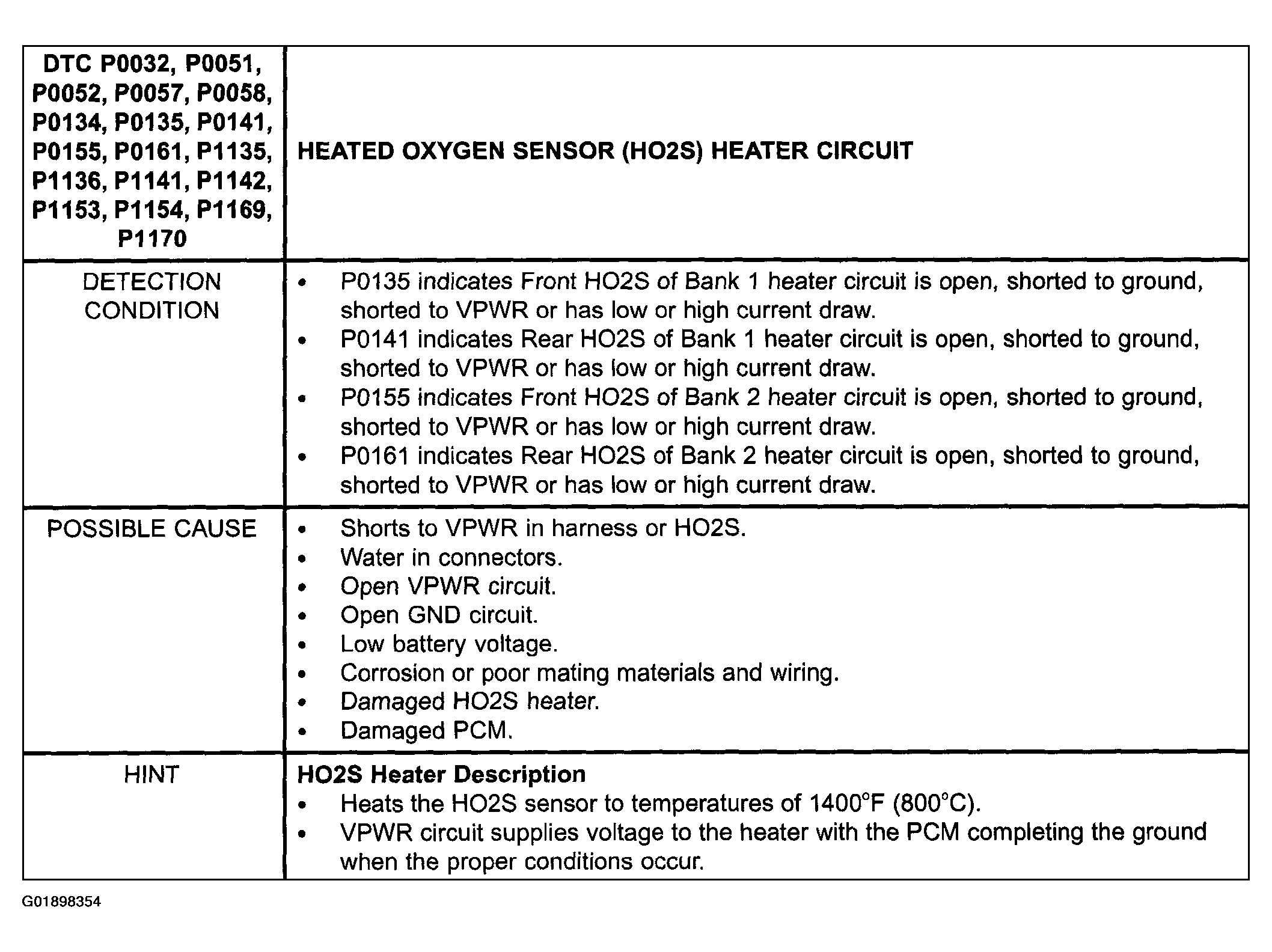

Fig 1: Heated Oxygen Sensor Heater Circuit Troubleshooting Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Heated Oxygen Sensor Heater Circuit Troubleshooting Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Heated Oxygen Sensor Heater Circuit Inspection Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 4: Heated Oxygen Sensor Heater Circuit Inspection Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.
