Pinpoint Test 5: The Individual Trailer Lamps Is Inoperative - Parking Lamps
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

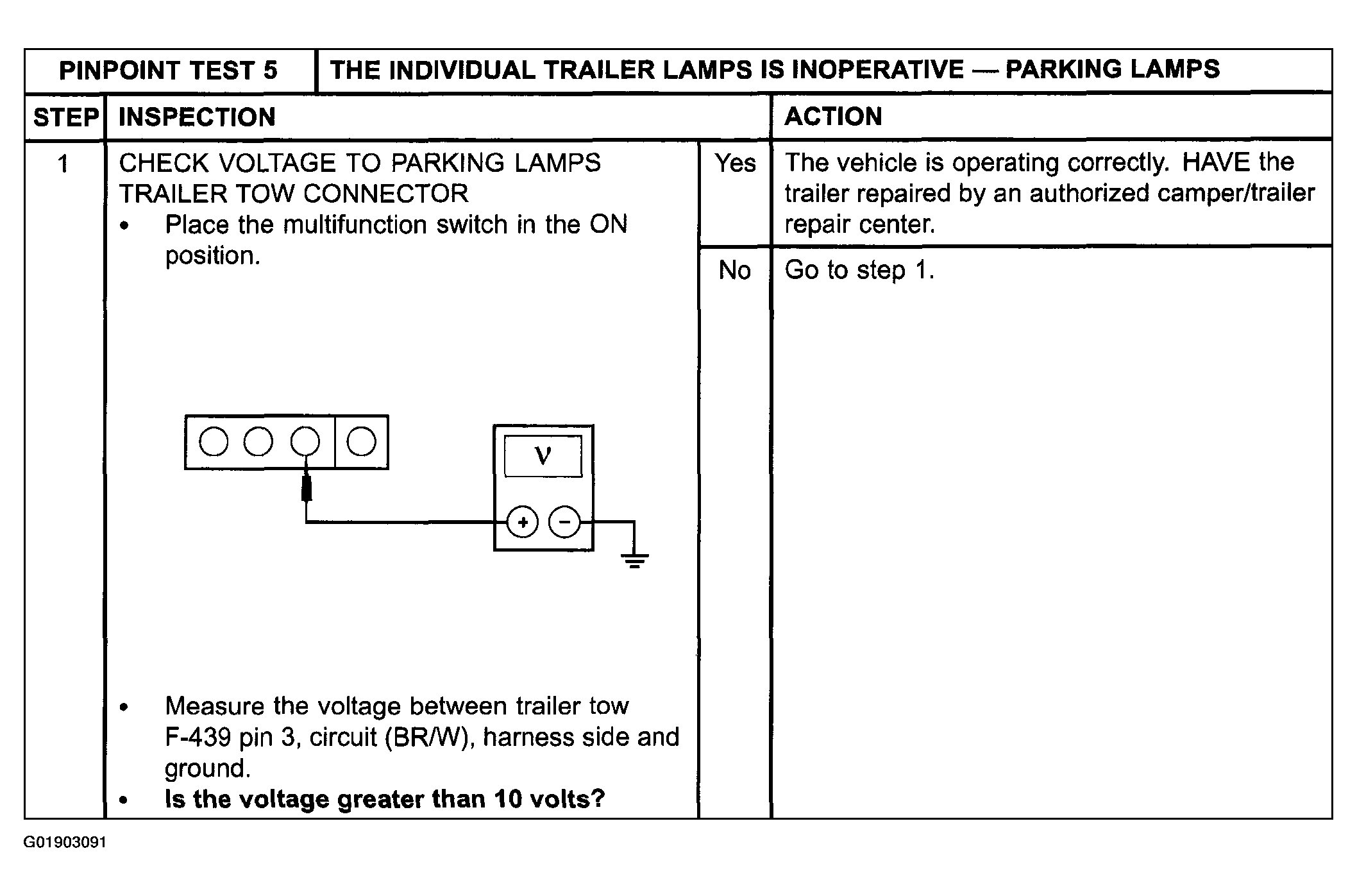

Fig 1: Pinpoint Test 5: Individual Trailer Lamps Is Inoperative - Parking Lamps (Step 1)
Courtesy of MAZDA MOTORS CORP.

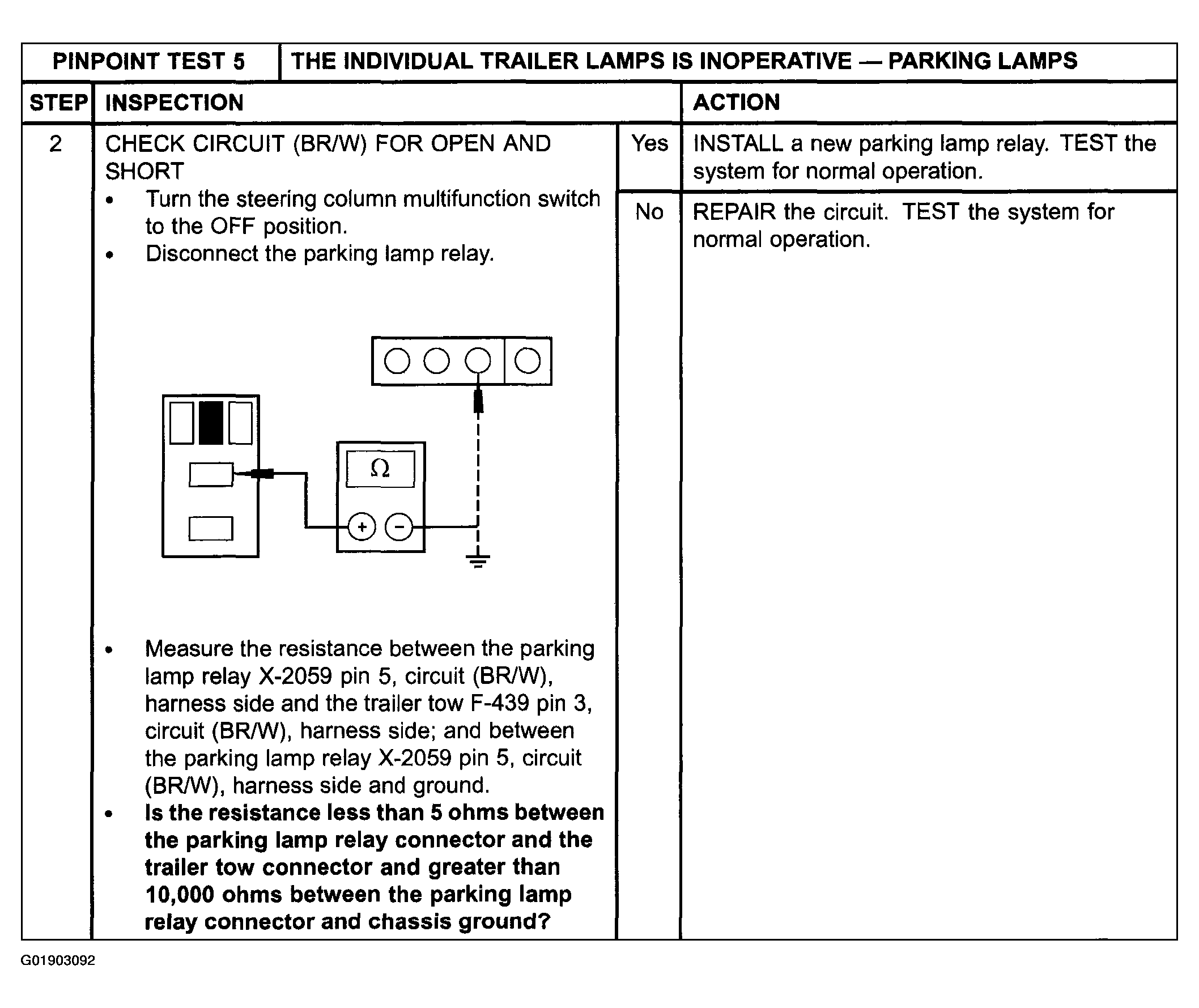

Fig 2: Pinpoint Test 5: Individual Trailer Lamps Is Inoperative - Parking Lamps (Step 2)
