Diagnostic procedure

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

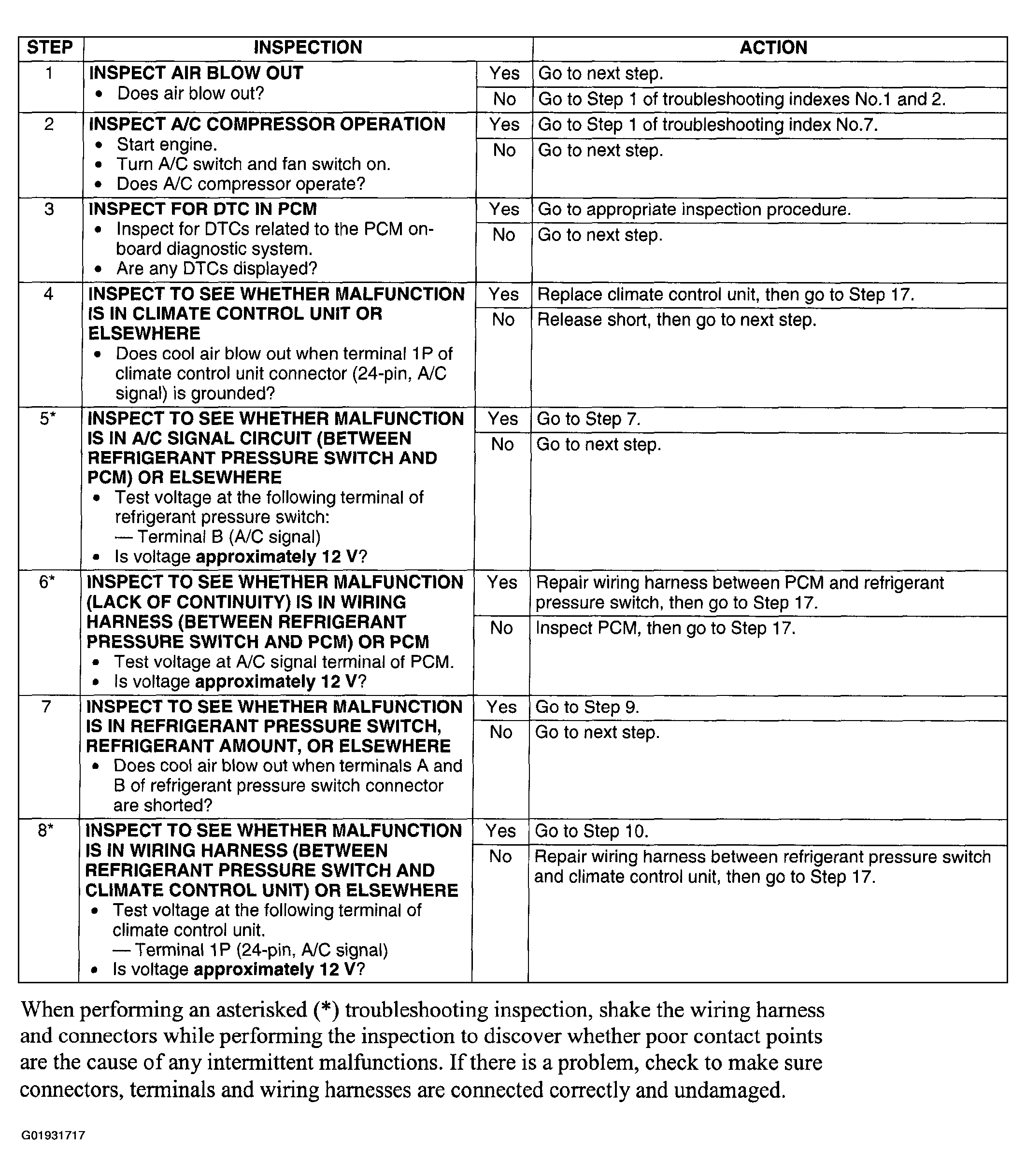

Fig 1: No.8 No Cool Air - Diagnosis Procedure (Steps 1-8)

Courtesy of MAZDA MOTORS CORP.

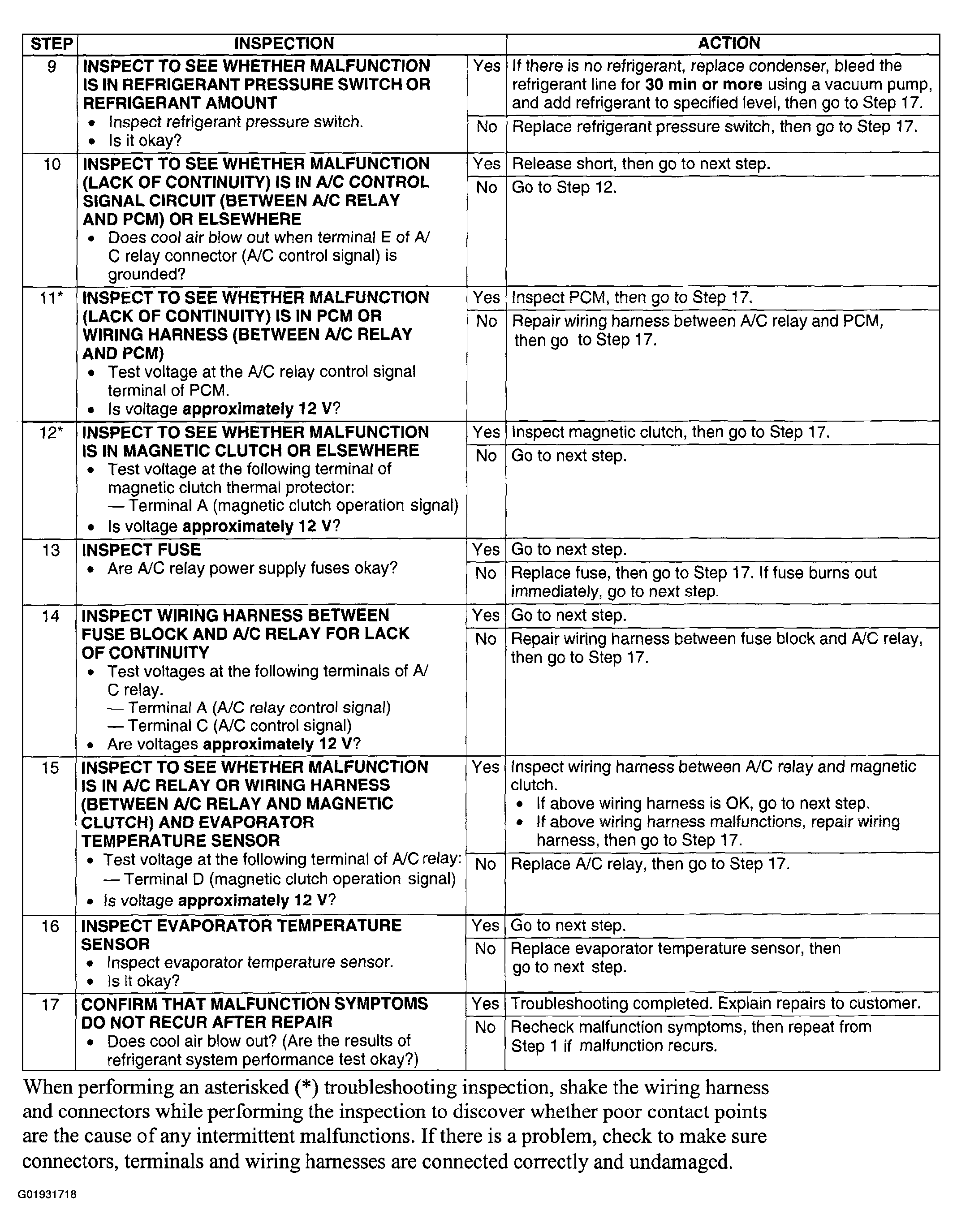

Fig 2: No.8 No Cool Air - Diagnosis Procedure (Steps 9-17)

Courtesy of MAZDA MOTORS CORP.
