Clutch Pedal Free Play

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.
    • If not as specified, adjust the pedal free play by loosening locknut C and turning push rod D as necessary.
      1. Pedal free play 1.0-3.0 mm {0.04-0.11 in}
      2. Push rod free play at clutch pedal 0.1-0.5 mm {0.004-0.020 in} (Reference value)

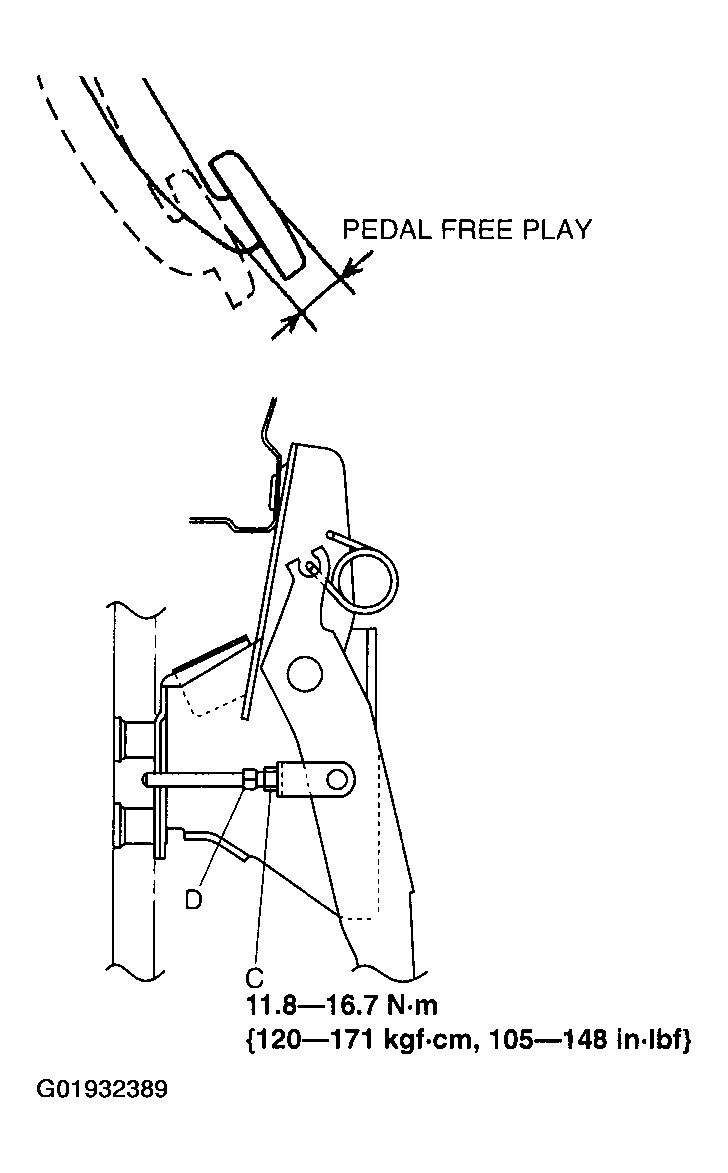

      Fig 1: Identifying Clutch Pedal Free Play
      G01932389Courtesy of MAZDA MOTORS CORP.
