Front Drive Belt Auto Tensioner

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front drive belt. (See FRONT DRIVE BELT .)
  2. Verify that the drive belt auto tensioner moves smoothly in the operational direction.
    • Replace the drive belt auto tensioner if necessary.

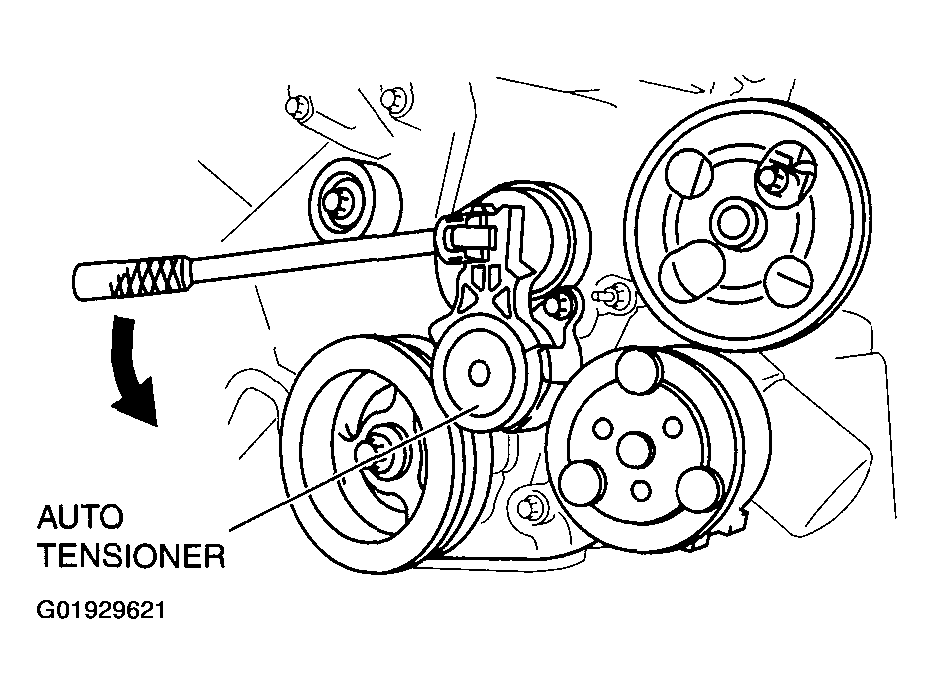

    Fig 1: Inspecting Front Drive Belt Auto Tensioner Movement
    G01929621Courtesy of MAZDA MOTORS CORP.
  3. Turn the drive belt auto tensioner pulley and verify that it rotates smoothly.
    • Replace the drive belt auto tensioner if necessary.

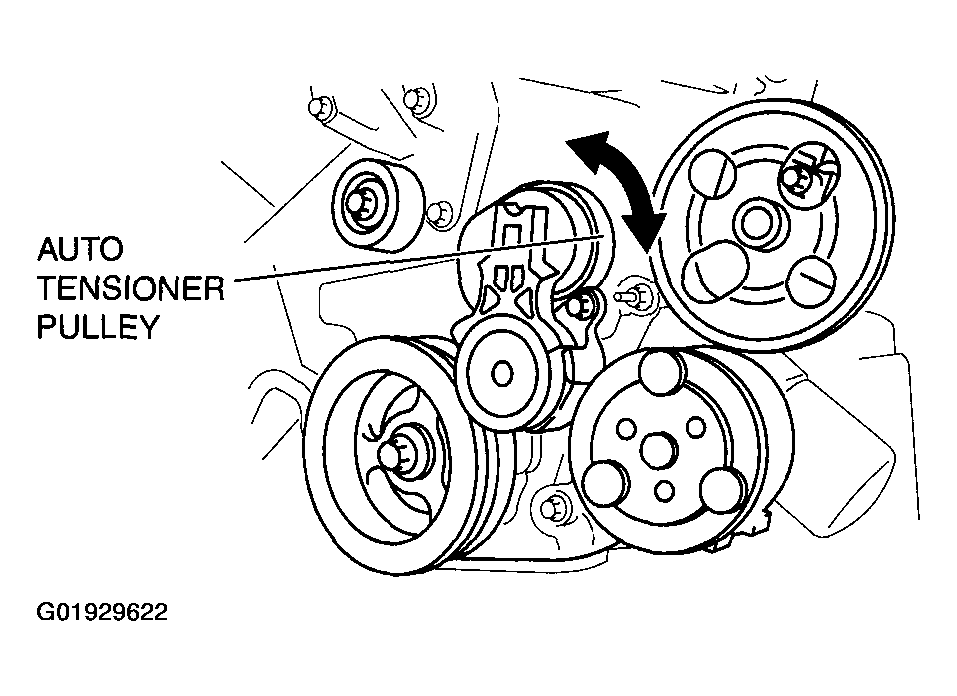

      • Fig 2: Inspecting Front Drive Belt Auto Tensioner Pulley
      G01929622Courtesy of MAZDA MOTORS CORP.
  4. Install the drive belt.
