Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

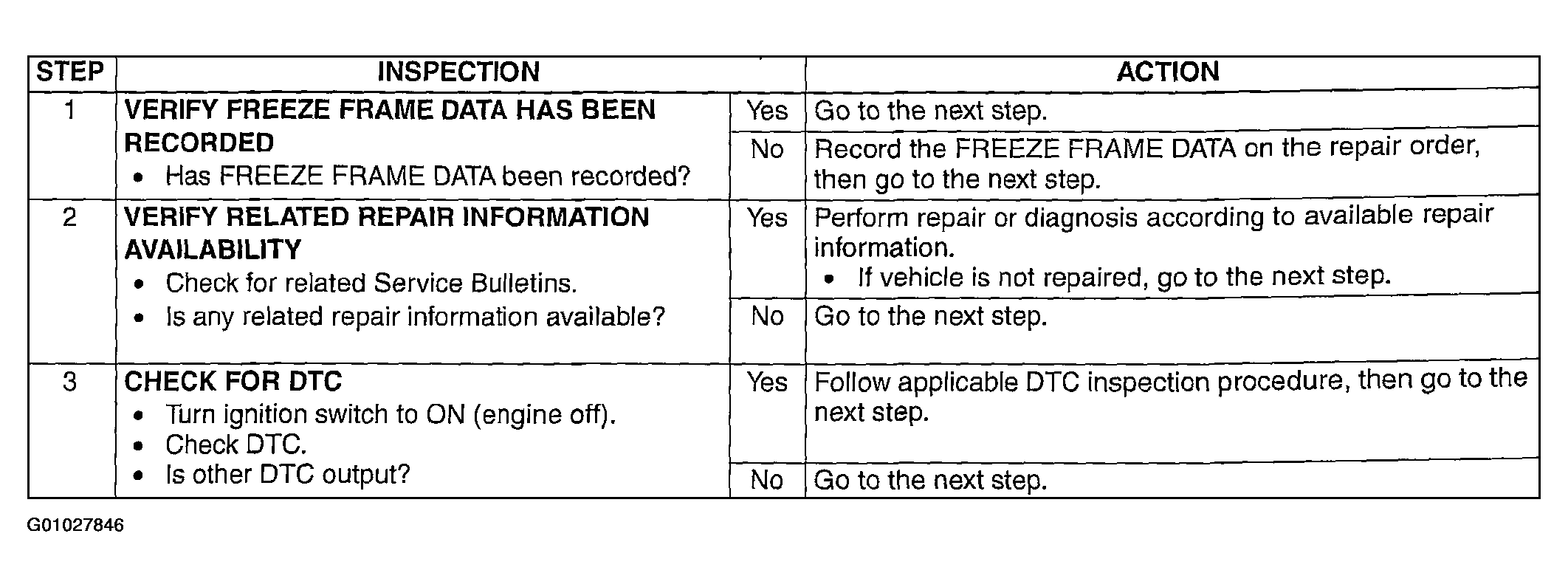

Fig 1: Diagnostic Procedure - DTC P0756 (Steps 1 - 3)
G01027846Courtesy of MAZDA MOTORS CORP.

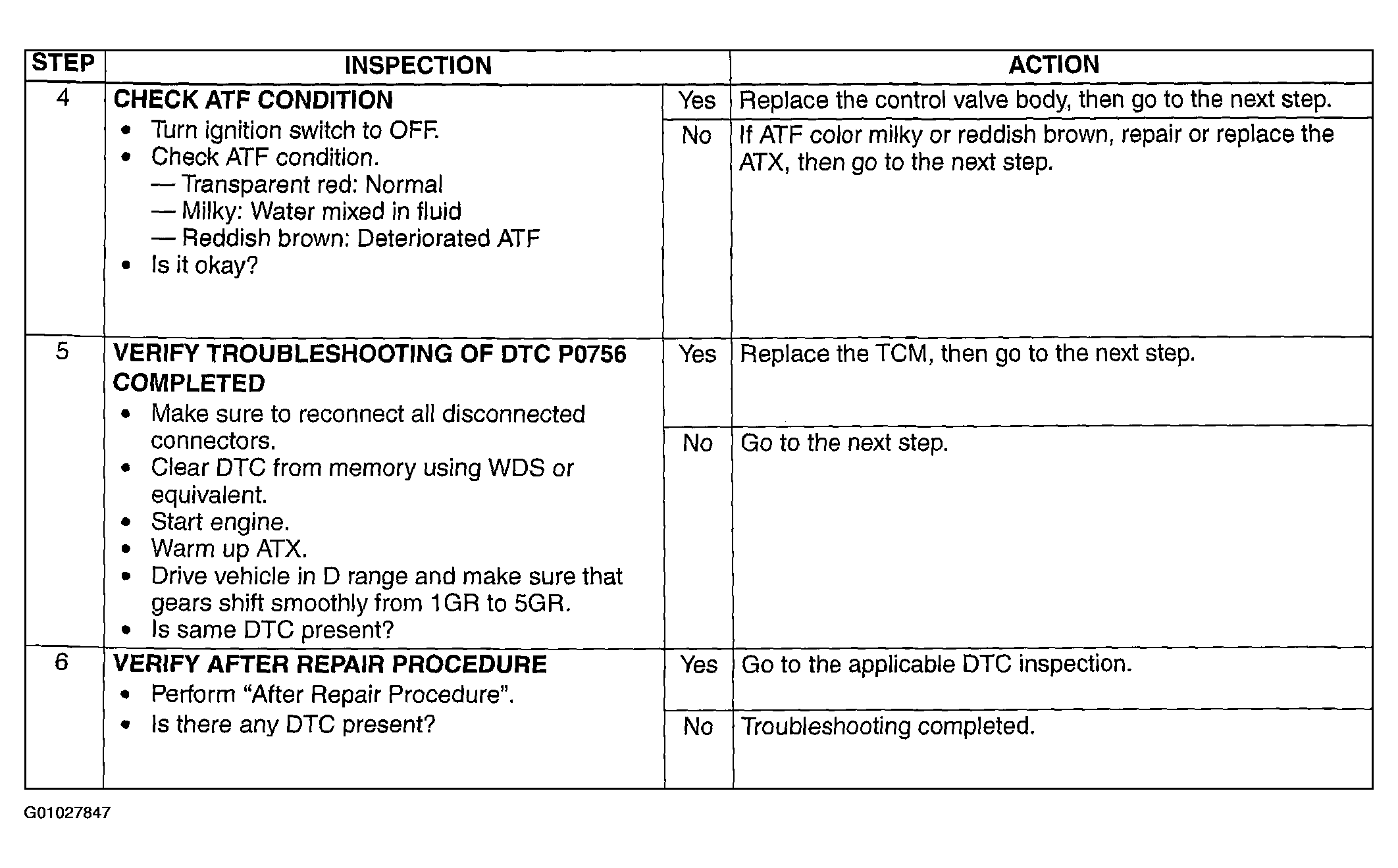

Fig 2: Diagnostic Procedure - DTC P0756 (Steps 4 - 6)
G01027847Courtesy of MAZDA MOTORS CORP.
