Valve Cover: Installation

WARNING: This page is about a different car, the 2002 Mazda B3000 and 2001 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing gasket, note position of studs and bolts before removing. Replace valve cover gasket if necessary. Ensure gasket lies flat in valve cover channel. Lightly oil threads of bolts and studs. Ensure sealing surfaces are clean.
  2. Apply a bead of silicone sealant onto intake manifold-to-cylinder head joining area. Install valve cover and tighten bolts in sequence to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

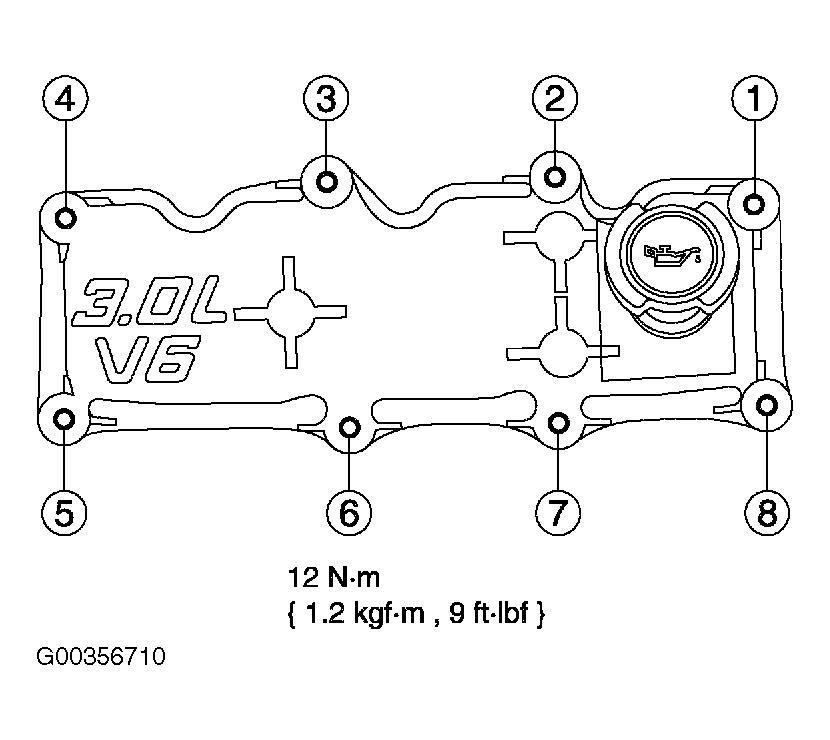

    Fig 1: Valve Cover Bolt Tightening Sequence
    G00356710Courtesy of MAZDA MOTORS CORP.
