Installation (Upper)
WARNING: This page is about a different car, the 2002 Mazda B3000 and 2001 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

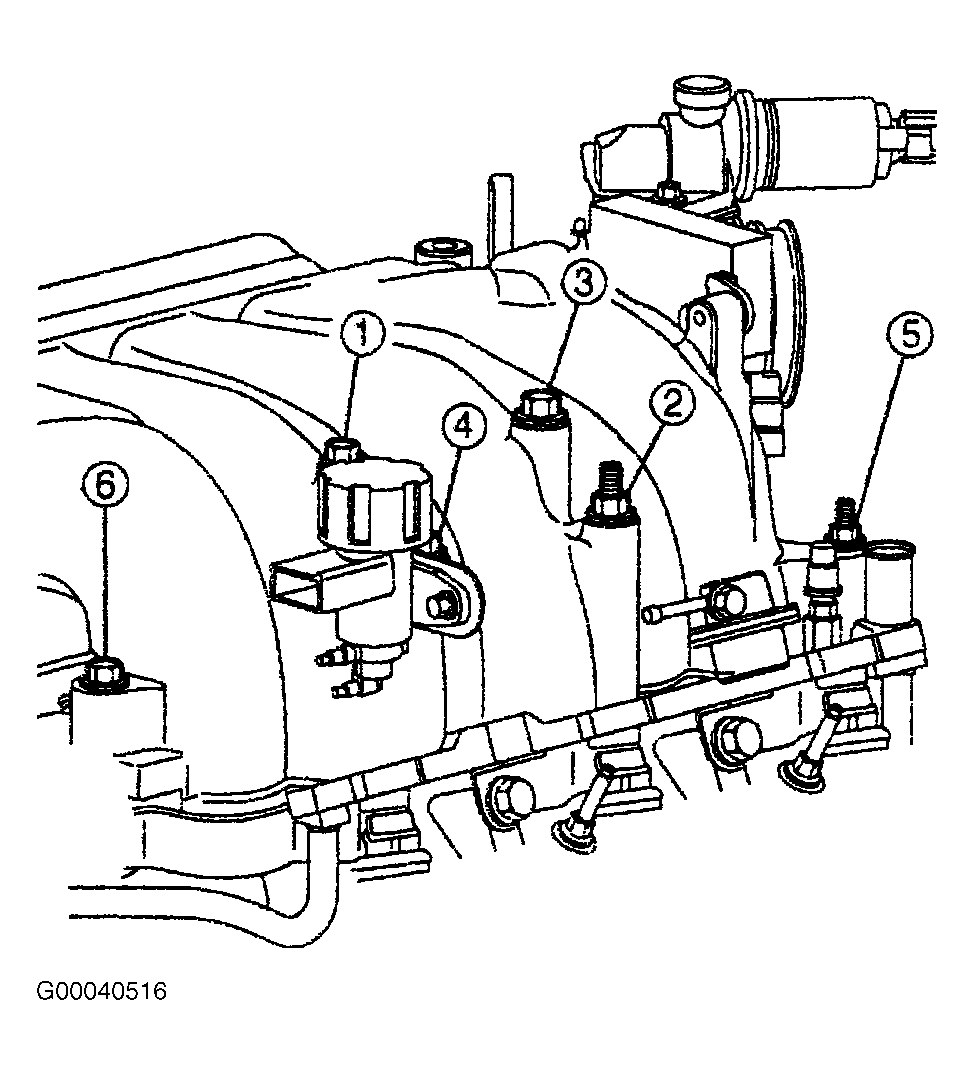

Clean gasket mating surfaces. DO NOT gouge plastic or aluminum parts. Install NEW gasket. Use guide pins and install upper intake manifold. Tighten bolts in sequence to specification. See Fig 1. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
