Exhaust Manifold: Installation

WARNING: This page is about a different car, the 2002 Mazda B3000 and 2001 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Clean carbon from mating surfaces. Lightly oil threads of bolts and stud before installation. Install exhaust manifold(s) and tighten bolts to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

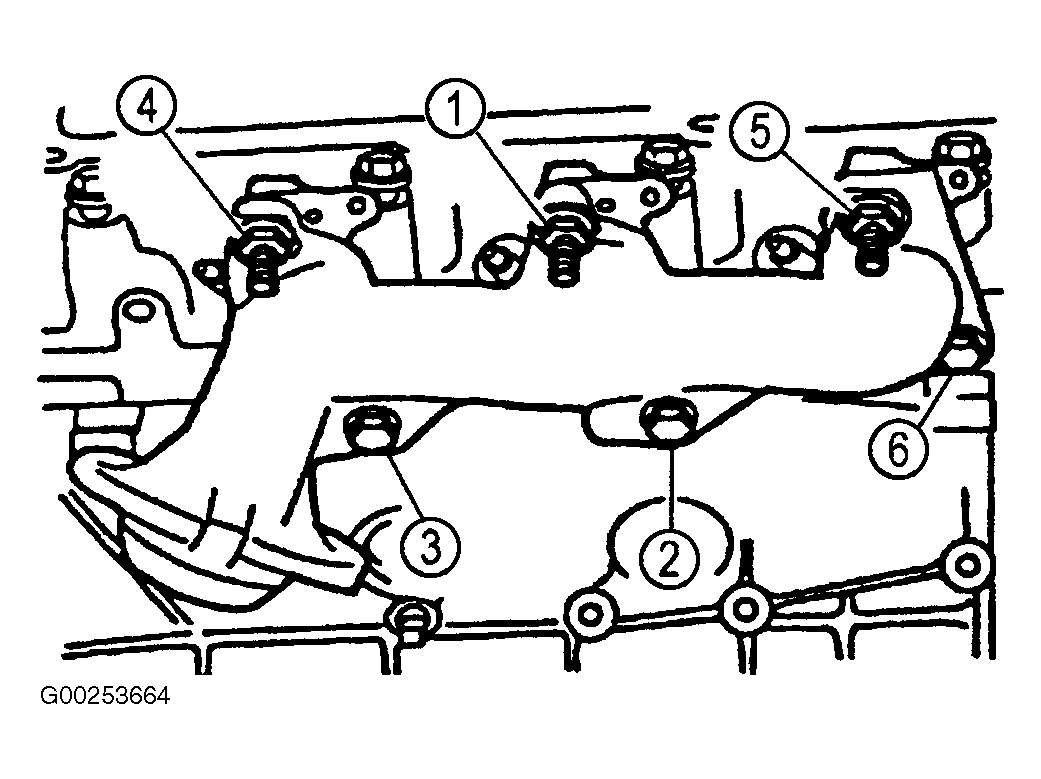

Fig 1: Exhaust Manifold Tightening Sequence (Left Side)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Exhaust Manifold Bolt Tightening Sequence (Right Side)

Courtesy of MAZDA MOTORS CORP.
