Water Pump Belt - 3.0L DURATEC (4V) Without TENSIONER: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially start the water pump belt on the pulley.

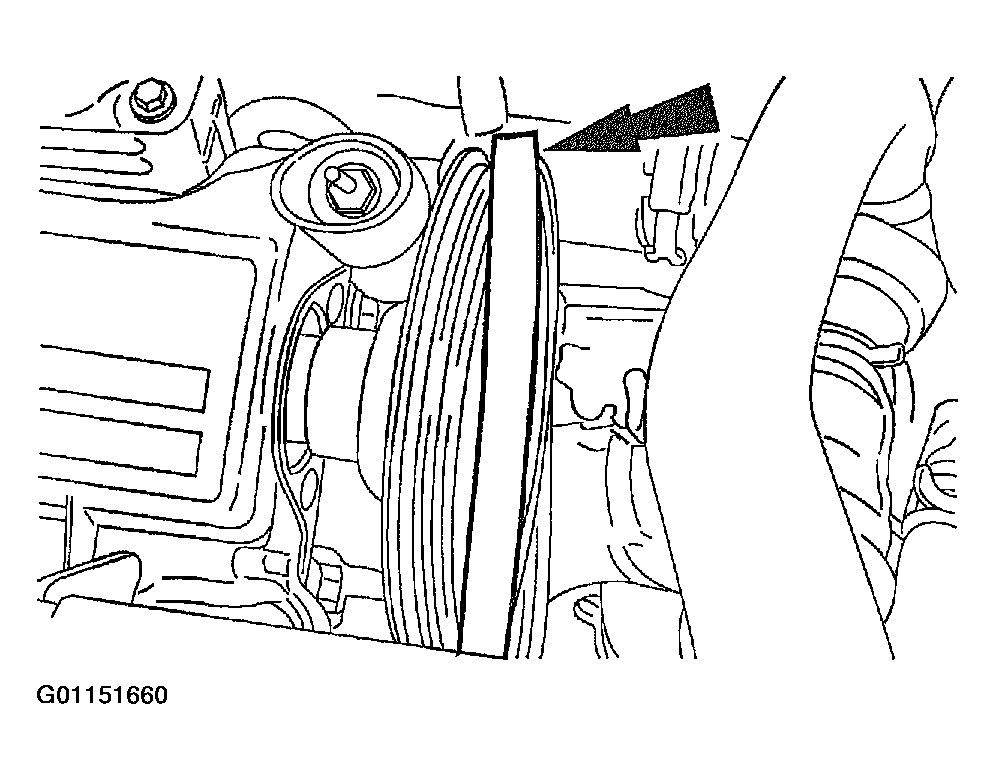

    Fig 1: Partially Starting Water Pump Belt On Pulley
    G01151660Courtesy of MAZDA MOTORS CORP.
  2. Rotate the crankshaft clockwise and install the water pump belt by walking on the pulley.
  3. Install the engine appearance cover and the nuts.

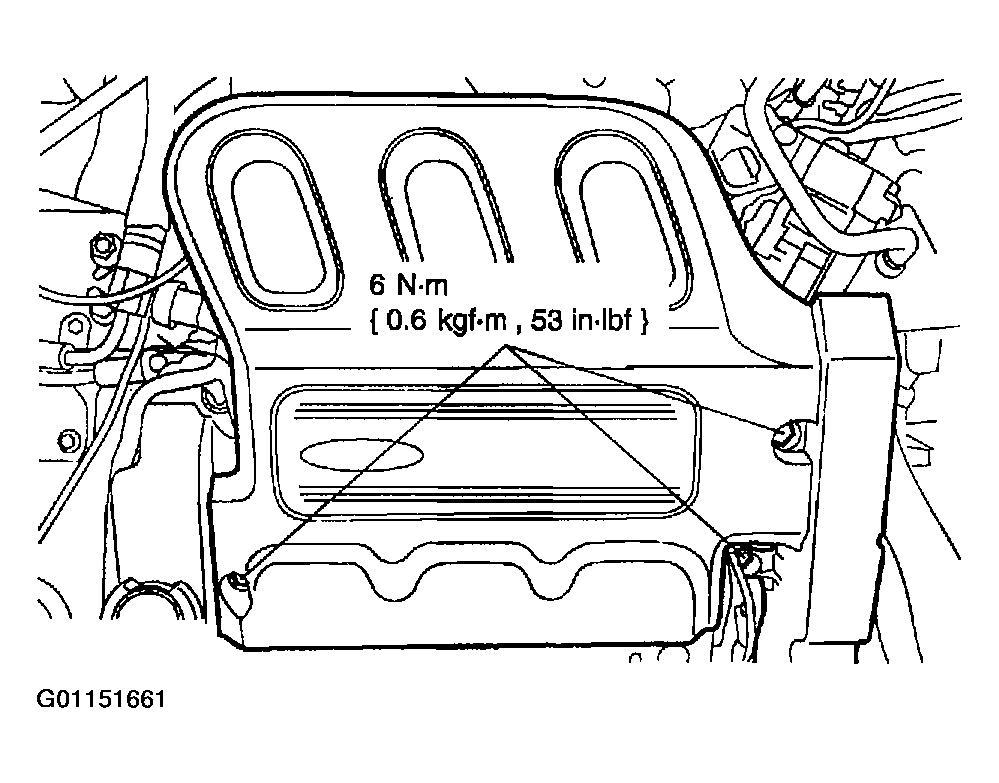

    Fig 2: Installing Engine Appearance Cover
    G01151661Courtesy of MAZDA MOTORS CORP.
