Removal & Installation
WARNING: This page is about a different car, the 2003 Mazda Tribute and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

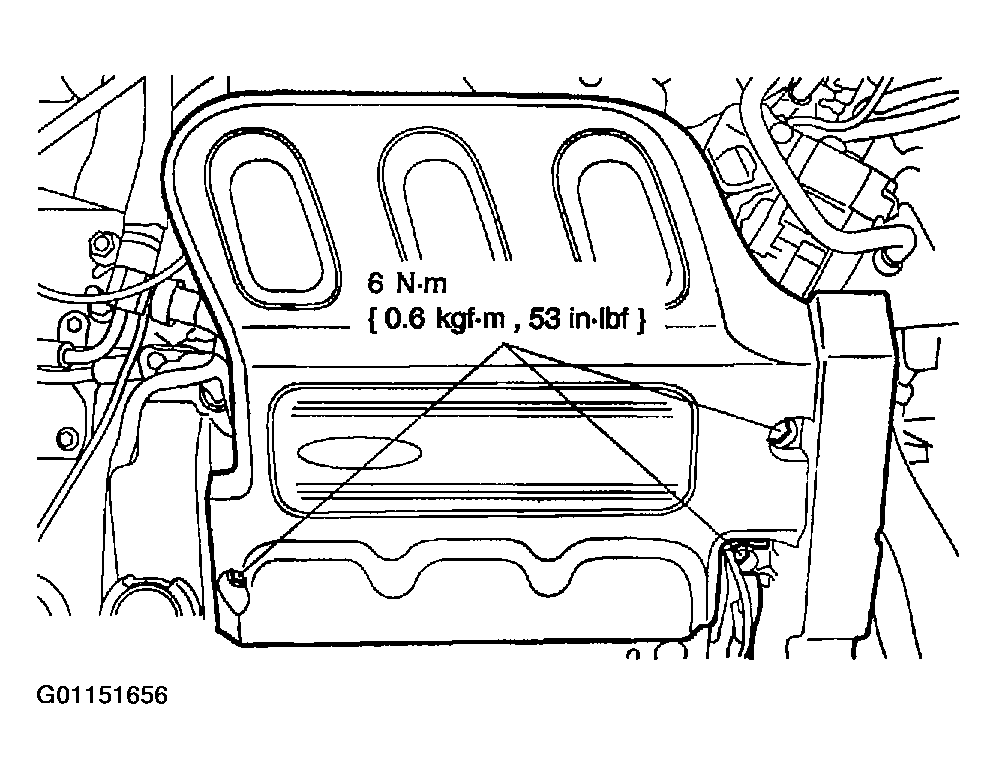

- Remove the nuts and the engine appearance cover.
Courtesy of MAZDA MOTORS CORP.

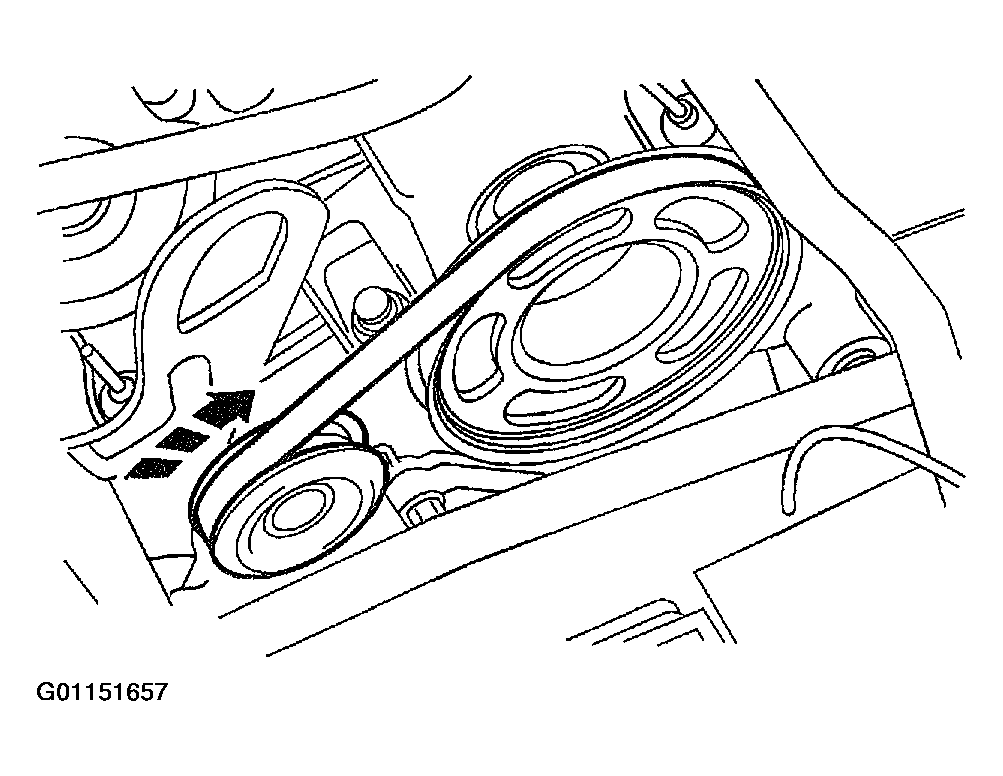

- Rotate the drive belt tensioner clockwise and remove the water pump belt.
Courtesy of MAZDA MOTORS CORP.
- To install, reverse the removal procedure.
