Crankshaft Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate. Refer to FLEXPLATE .
  2. Using the special tools, remove the crankshaft rear oil seal.

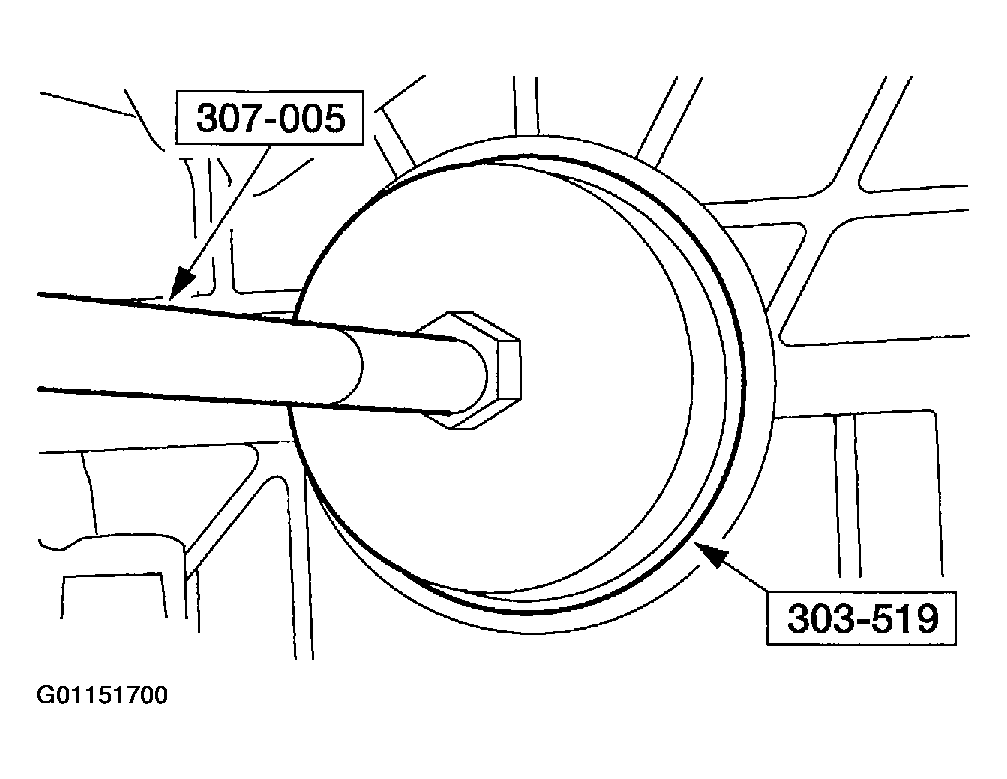

    Fig 1: Removing Crankshaft Rear Oil Seal
    G01151700Courtesy of MAZDA MOTORS CORP.
