Removal & Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to ACCESSORY DRIVE BELT .
  2. Remove the bolt and the accessory drive belt tensioner.

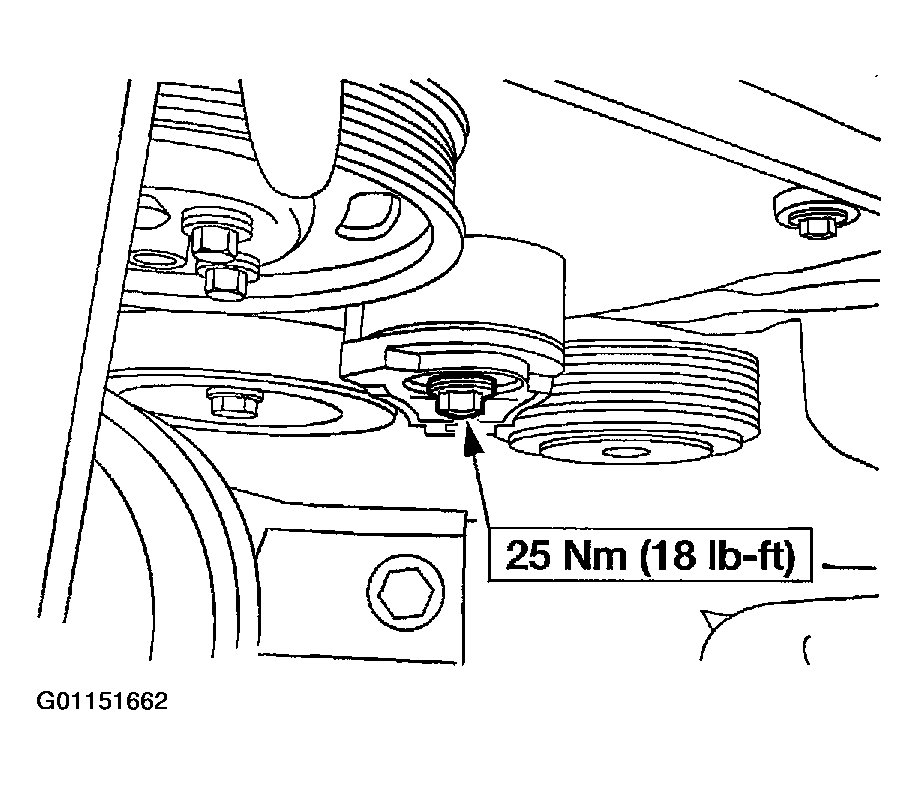

    Fig 1: Removing Accessory Drive Belt Tensioner
    G01151662Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
