Removal (Vehicles Without ABS)

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When a new wheel knuckle is installed, a new wheel bearing must also be installed.
  1. Remove the brake shoes. Refer to REAR BRAKE DRUM SHOES .
  2. CAUTION: Anti-seize compound must be applied to halfshaft before removing nut to avoid damaging halfshaft.
    NOTE: If equipped, remove the ABS sensor ring.

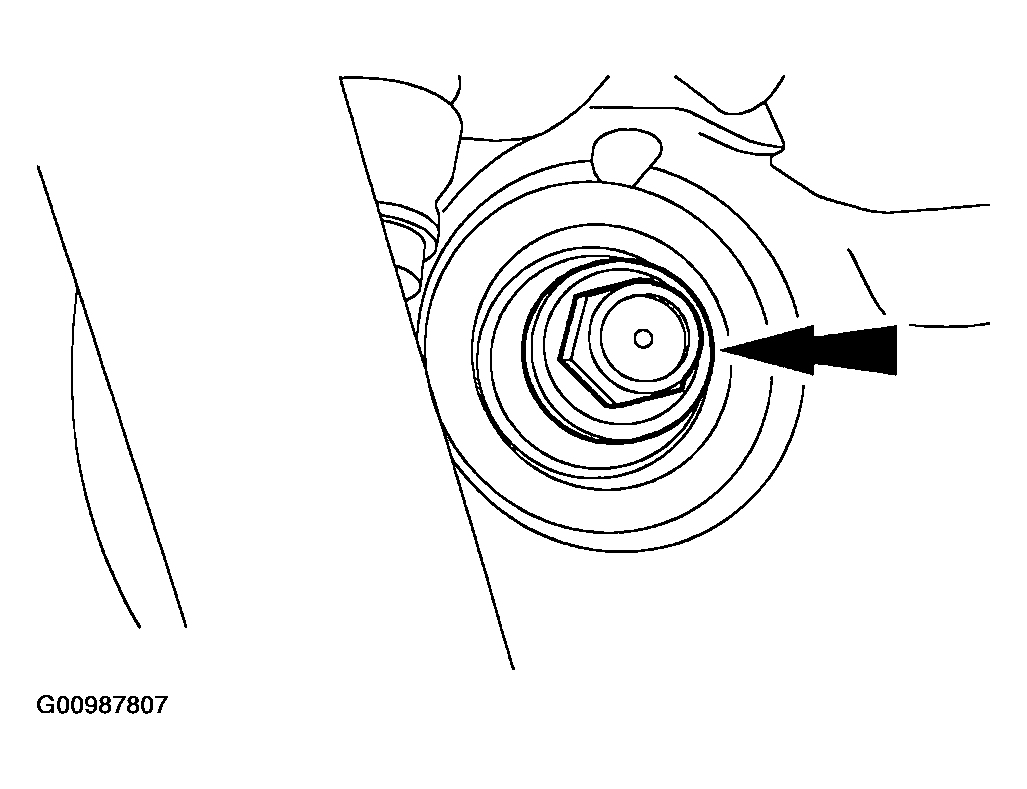

    Fig 1: Identifying Rear Hub Nut
    G00987807Courtesy of MAZDA MOTORS CORP.
  3. Remove the wheel hub nut and discard.
  4. Using the special tools, remove the wheel hub.

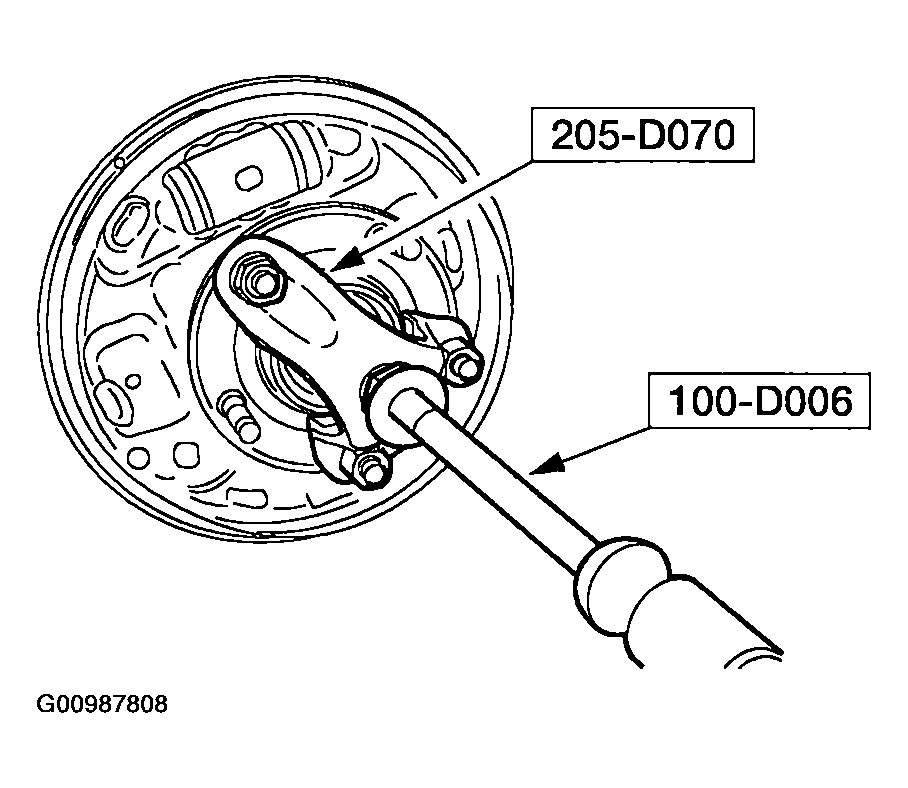

    Fig 2: Removing Wheel Hub
    G00987808Courtesy of MAZDA MOTORS CORP.
  5. NOTE: This step may not be necessary if the inner wheel bearing race remains in the wheel knuckle, after removing the wheel hub.

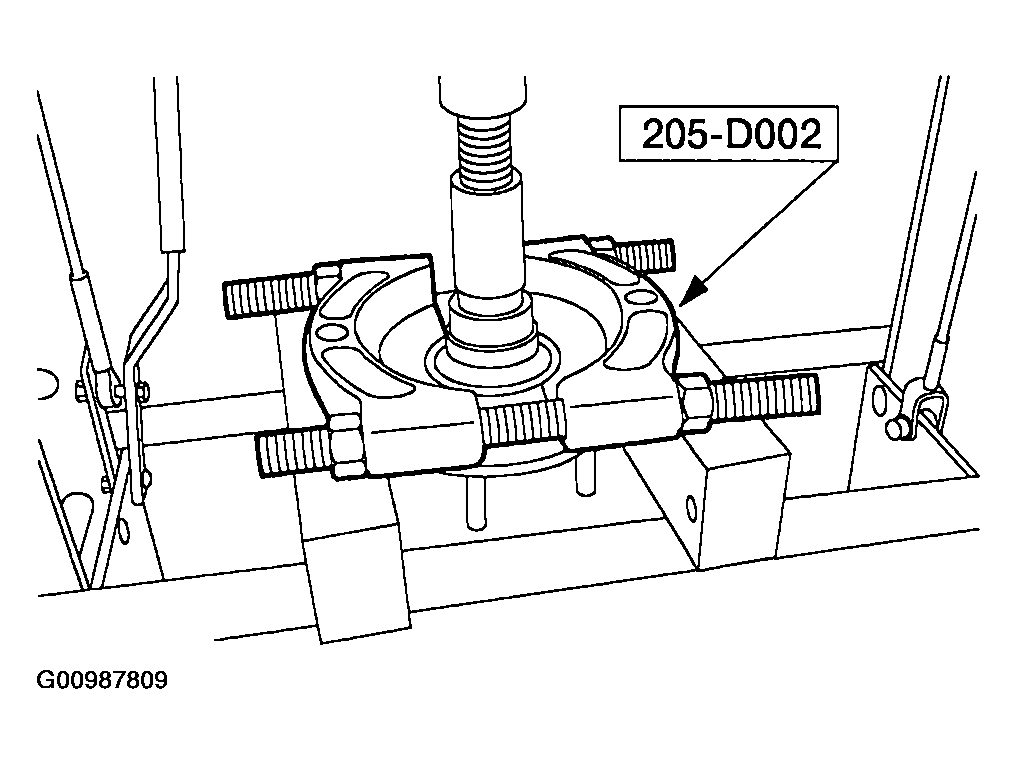

    Fig 3: Removing Wheel Hub Inner Race
    G00987809Courtesy of MAZDA MOTORS CORP.
  6. Using the special tool, press the inner wheel bearing race from the wheel hub.
  7. Remove the snap ring.

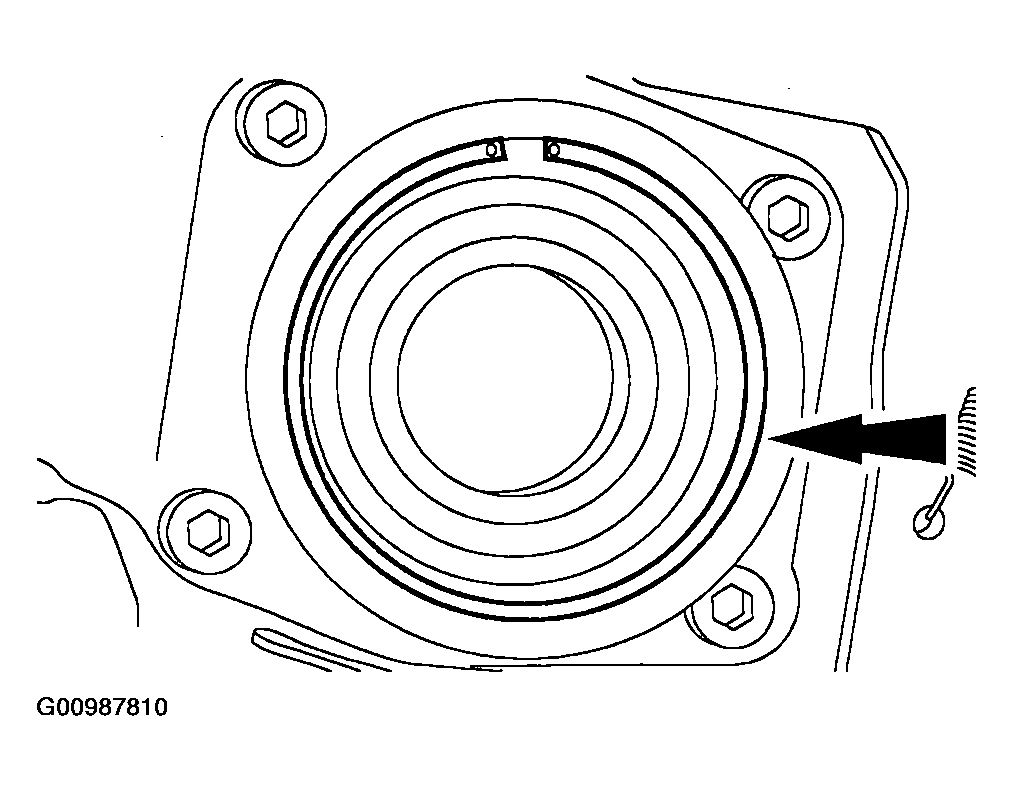

    Fig 4: Identifying Snap Ring
    G00987810Courtesy of MAZDA MOTORS CORP.
  8. On vehicles with Anti-Lock Brake (ABS), position the ABS sensor aside.
    • Remove the ABS sensor bolt and bracket bolts.

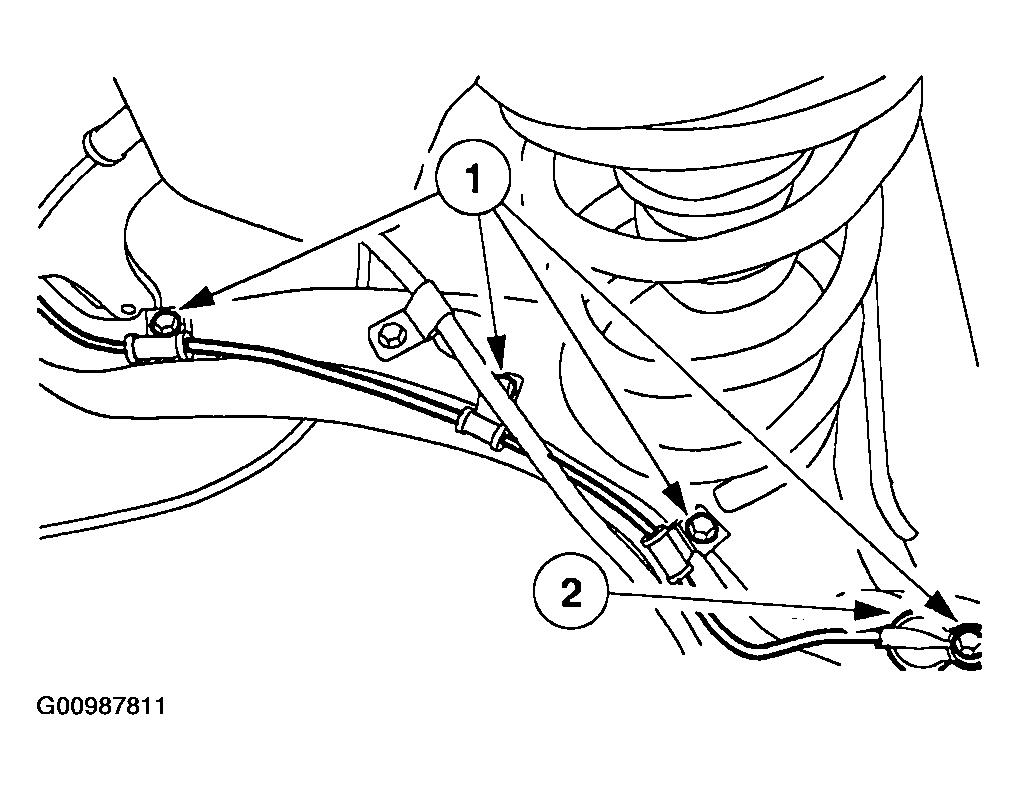

      Fig 5: Identifying ABS Bracket Bolts & Sensor
      G00987811Courtesy of MAZDA MOTORS CORP.
    • Position the ABS sensor aside.
  9. On all models, disconnect the parking brake cable from the brake backing plate.
    • Remove the parking brake cable bolt from the wheel knuckle.

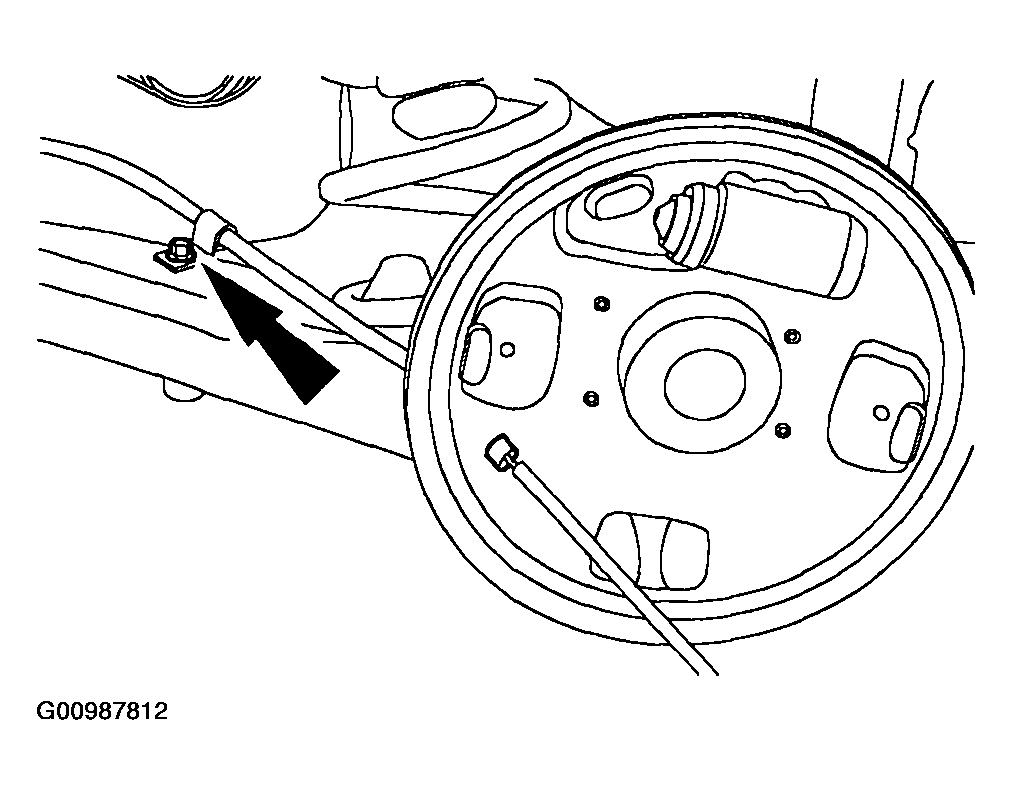

      Fig 6: Identifying Parking Brake Cable Bolt
      G00987812Courtesy of MAZDA MOTORS CORP.
  10. Disconnect the brake line from the wheel cylinder.
    • Remove the brake line bracket bolt.

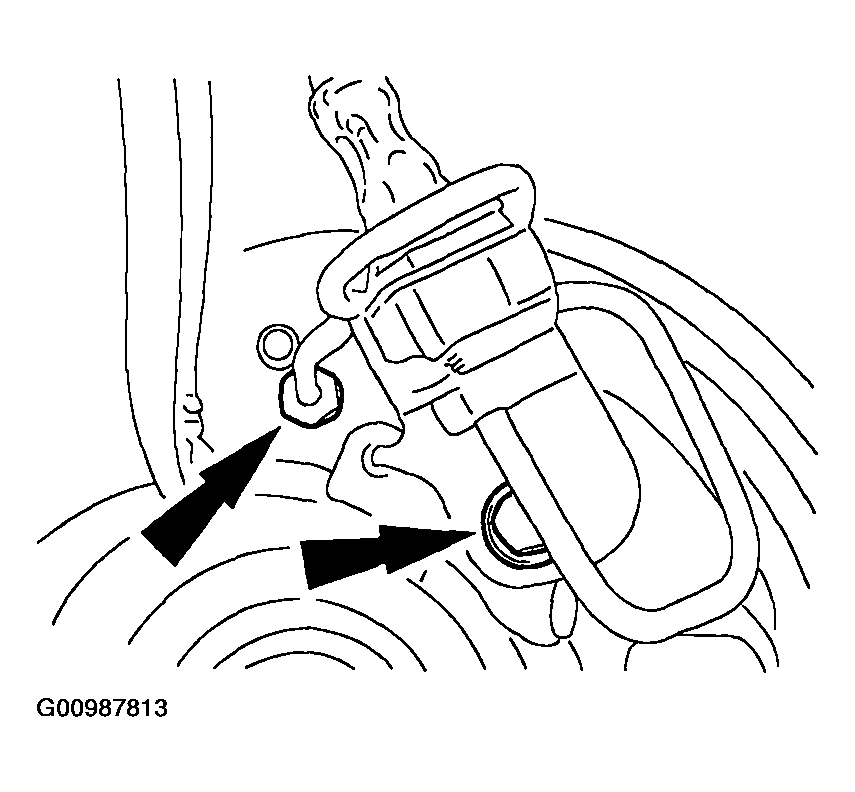

      Fig 7: Identifying Brake Line & Bracket Bolt
      G00987813Courtesy of MAZDA MOTORS CORP.
  11. Support the wheel knuckle.
  12. Remove the lower shock absorber bolt.

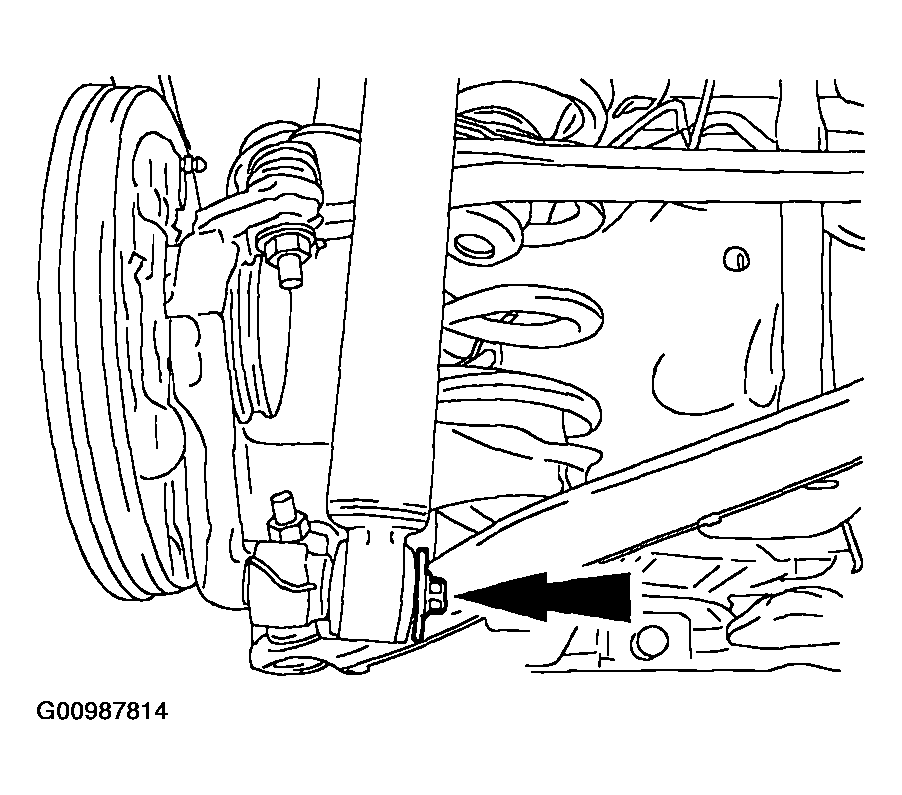

    Fig 8: Identifying Lower Shock Absorber Bolt
    G00987814Courtesy of MAZDA MOTORS CORP.
  13. NOTE: It may be necessary to hold the ball joint stud to keep it from turning while removing the nut.

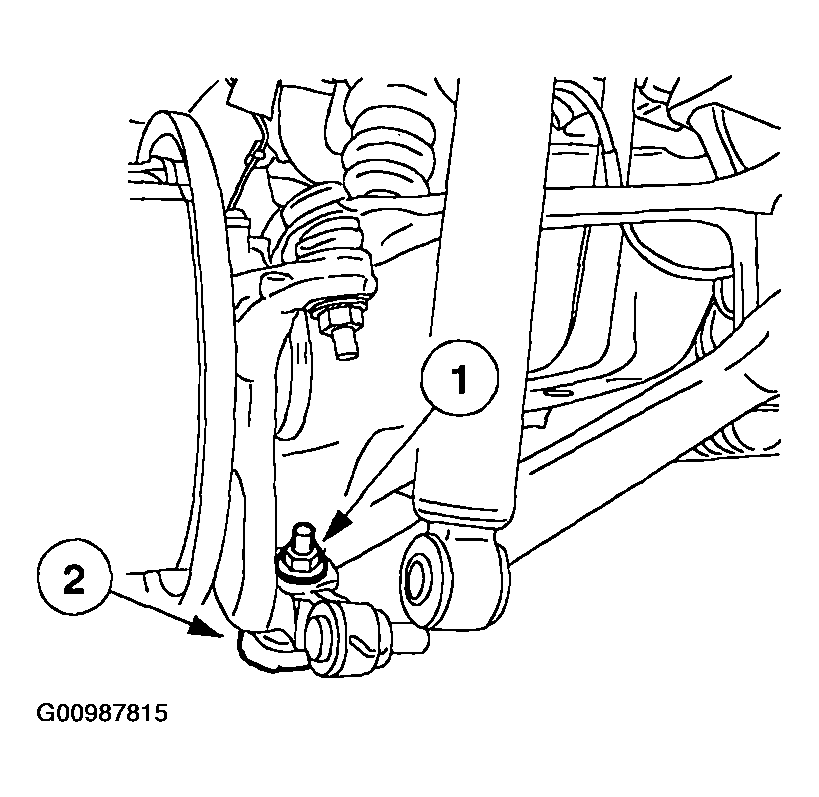

    Fig 9: Identifying Lower Ball Joint Nut & Wheel Knuckle
    G00987815Courtesy of MAZDA MOTORS CORP.
  14. Separate the lower ball joint from the wheel knuckle.
    • Remove the nut.
    • Separate the lower ball joint from the wheel knuckle.
  15. NOTE: It may be necessary to hold the ball joint stud to keep it from turning while removing the nut.

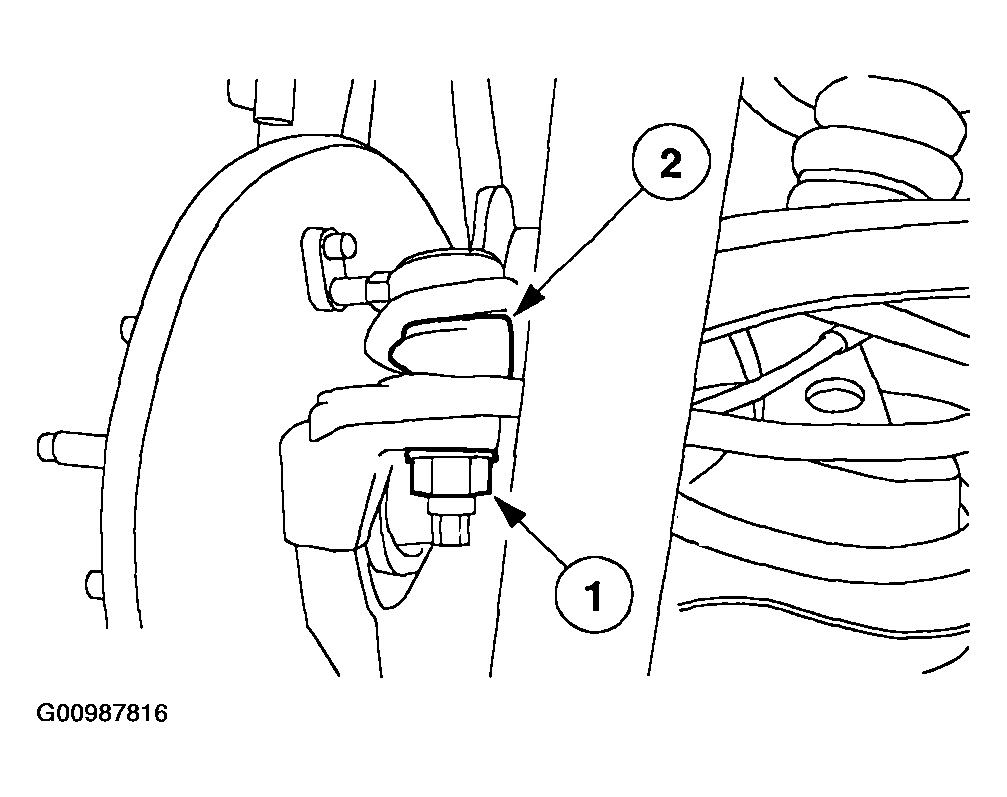

    Fig 10: Identifying Upper Ball Joint & Wheel Knuckle
    G00987816Courtesy of MAZDA MOTORS CORP.
  16. Separate the upper ball joint from the wheel knuckle.
    • Remove the nut.
    • Separate the upper ball joint from the wheel knuckle.
  17. NOTE: Note the position of the spring insulator and spring for installation.

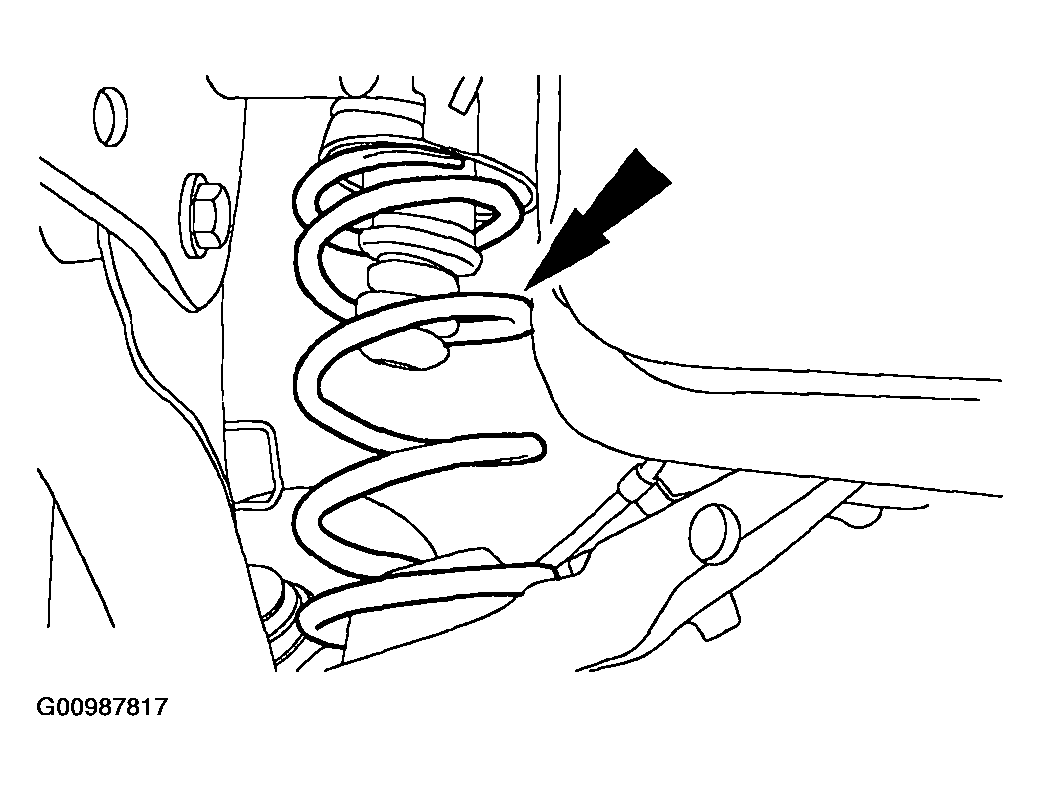

    Fig 11: Identifying Coil Spring
    G00987817Courtesy of MAZDA MOTORS CORP.
  18. Remove the spring.
    • Lower the support to the wheel knuckle.
  19. Remove the wheel knuckle cam bolt and nut.
    • Mark the position of the adjustment cam notch.
    • Remove the wheel knuckle cam bolt and nut.

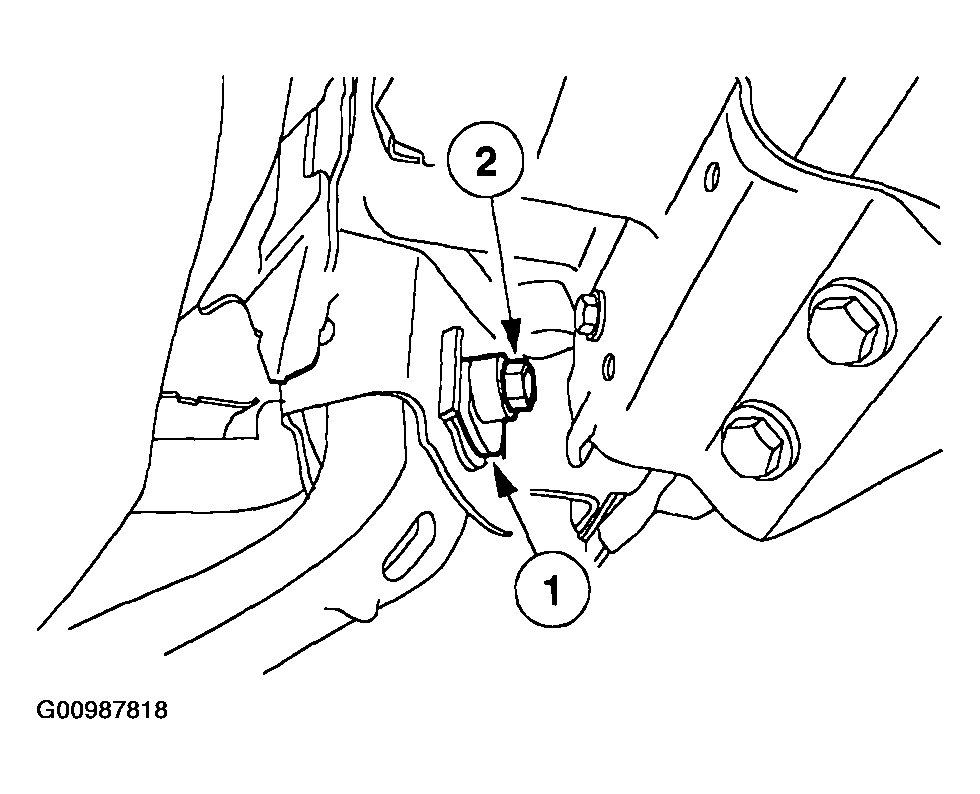

      Fig 12: Identifying Wheel Knuckle Cam Bolt & Nut
      G00987818Courtesy of MAZDA MOTORS CORP.
  20. Remove the wheel knuckle.

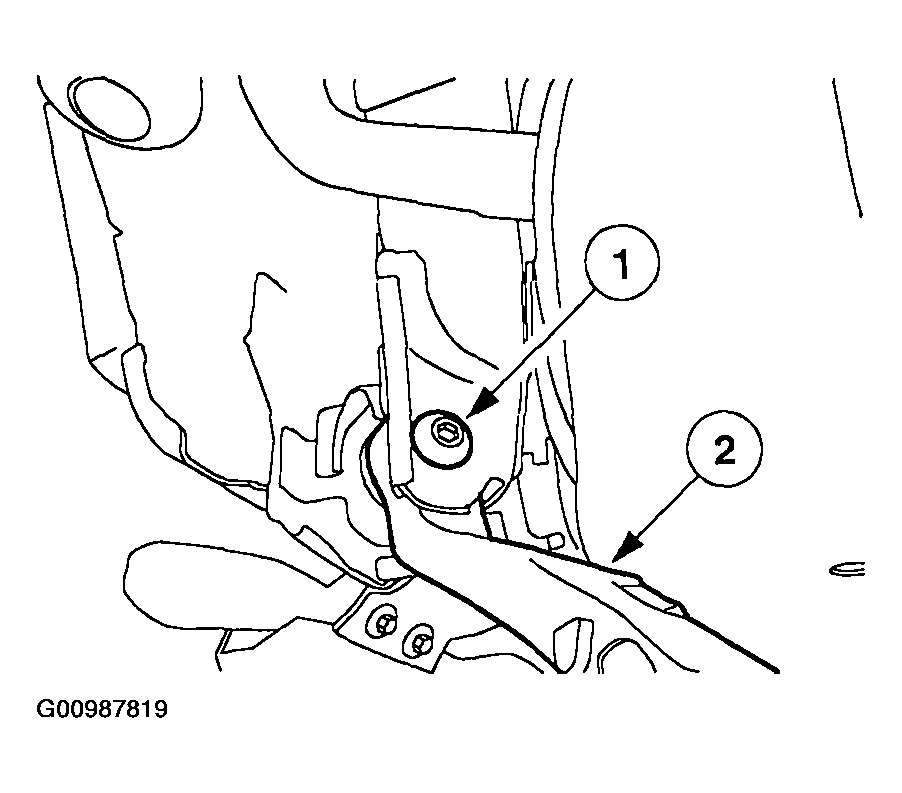

    Fig 13: Identifying Wheel Knuckle & Cam
    G00987819Courtesy of MAZDA MOTORS CORP.
    • Remove the wheel knuckle cam.
    • Remove the wheel knuckle.
  21. Remove the brake backing plate from the wheel knuckle.
    • Remove the bolts.

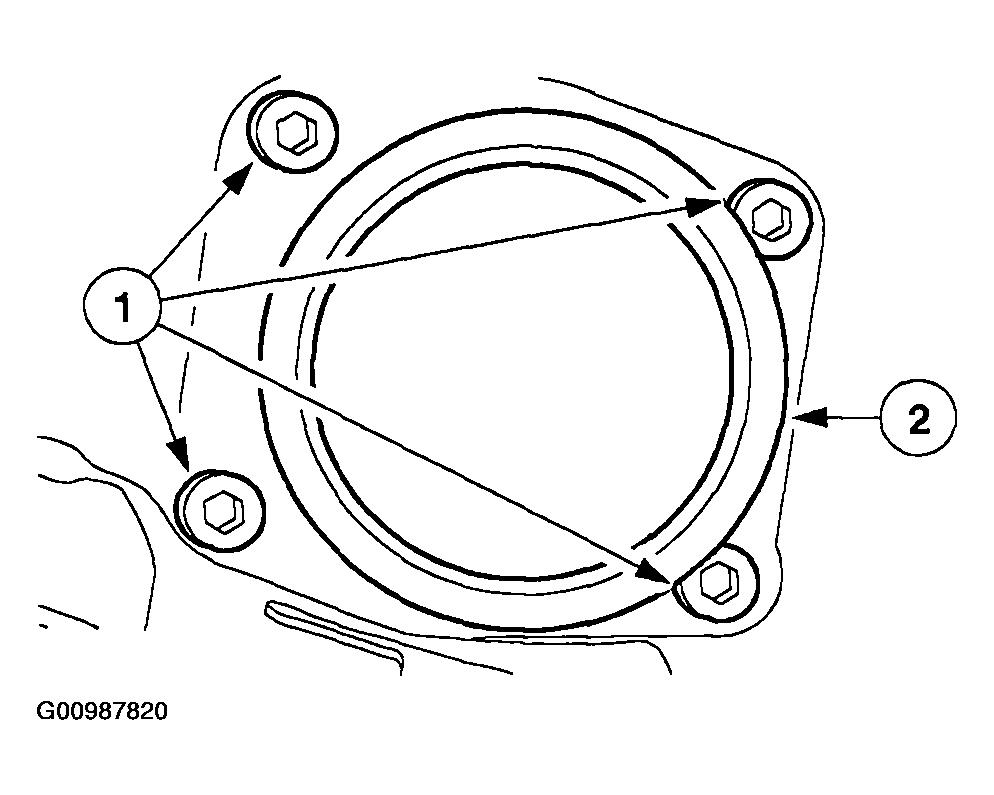

      Fig 14: Identifying Backing Plate Bolts
      G00987820Courtesy of MAZDA MOTORS CORP.
    • Remove the brake backing plate from the wheel knuckle.
