Wheel Runout

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Measure radial and lateral wheel runout at the positions shown in the illustration. Runout should not exceed specifications.

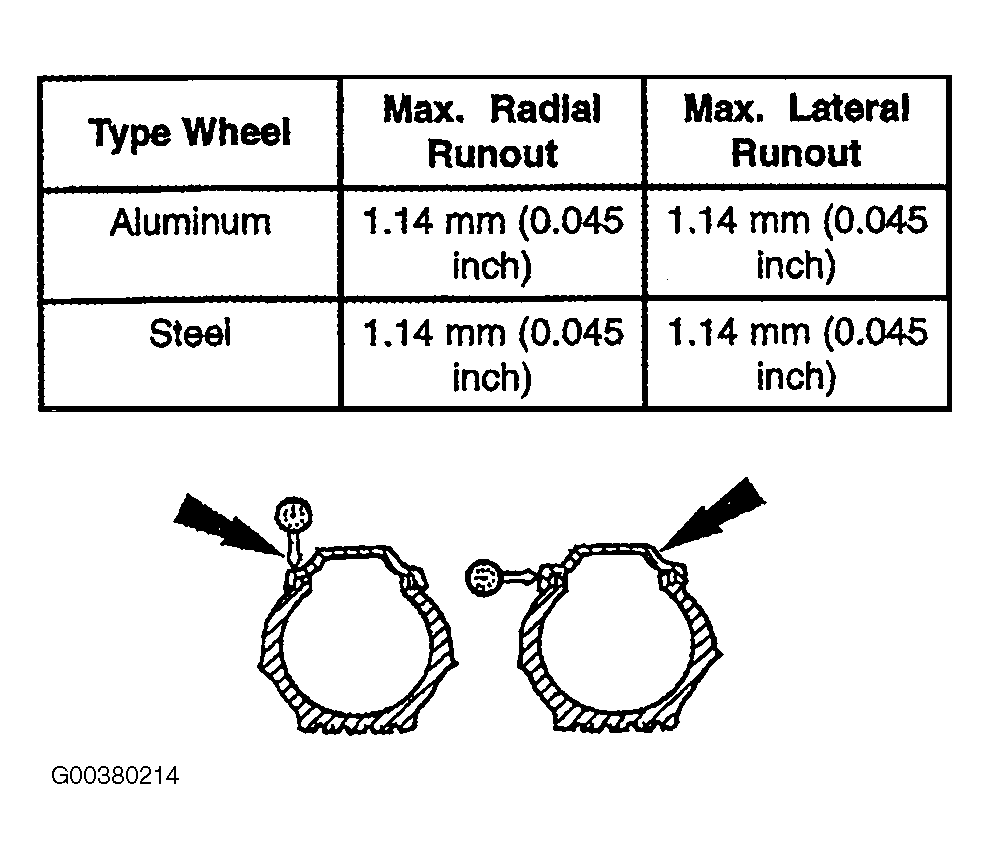

Fig 1: Identifying Wheel Runout Specifications
G00380214Courtesy of MAZDA MOTORS CORP.
