Removal & Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right side front halfshaft. See HALFSHAFT (FRONT) .
Remove the two inner halfshaft bearing retainer nuts. See Fig 1 .
Remove the inner halfshaft. See Fig 2 .
To install, reverse the removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

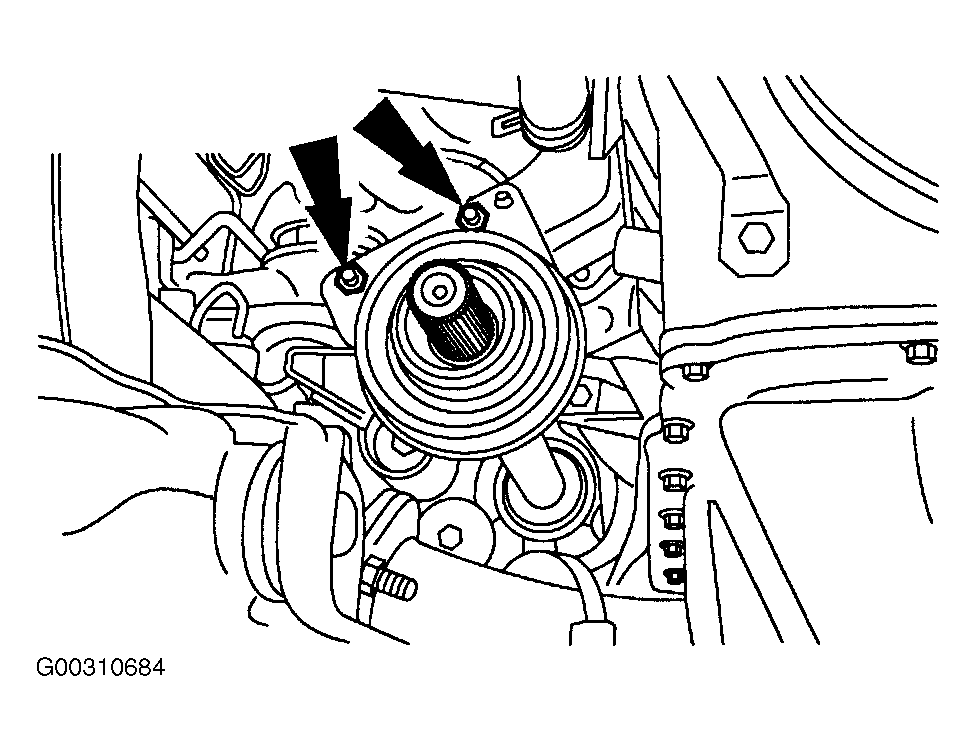

Fig 1: Removing Inner Halfshaft Bearing Retainer Nuts

Courtesy of MAZDA MOTORS CORP.

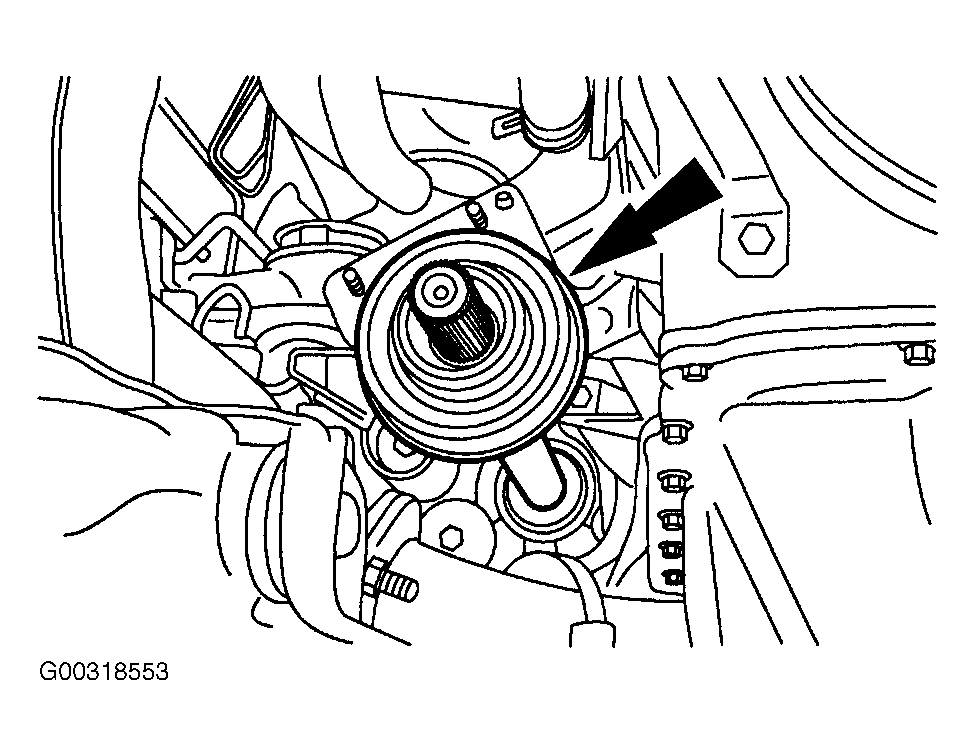

Fig 2: Removing Inner Halfshaft

Courtesy of MAZDA MOTORS CORP.
