Removal and Installation

NOTE: If installing a new instrument cluster, it is necessary to upload the instrument cluster configuration to the diagnostic tool. See MODULE CONTROLLED FUNCTIONS .

Depower the supplemental restraint system (SRS). See DEPOWERING AND REPOWERING .

Fig 1: Center Finish Panel Screws
Remove the 2 screws and remove the center instrument panel finish panel.
- Disconnect the electrical connectors.
Fig 2: Removing/Installing Inner Hood Lock Release Handle With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the 2 screws and position aside the hood latch release handle.

Fig 3: Removing Instrument Panel Steering Column Opening Cover
Courtesy of MAZDA MOTORS CORP.
Remove the 2 screws and remove the instrument panel steering column cover.

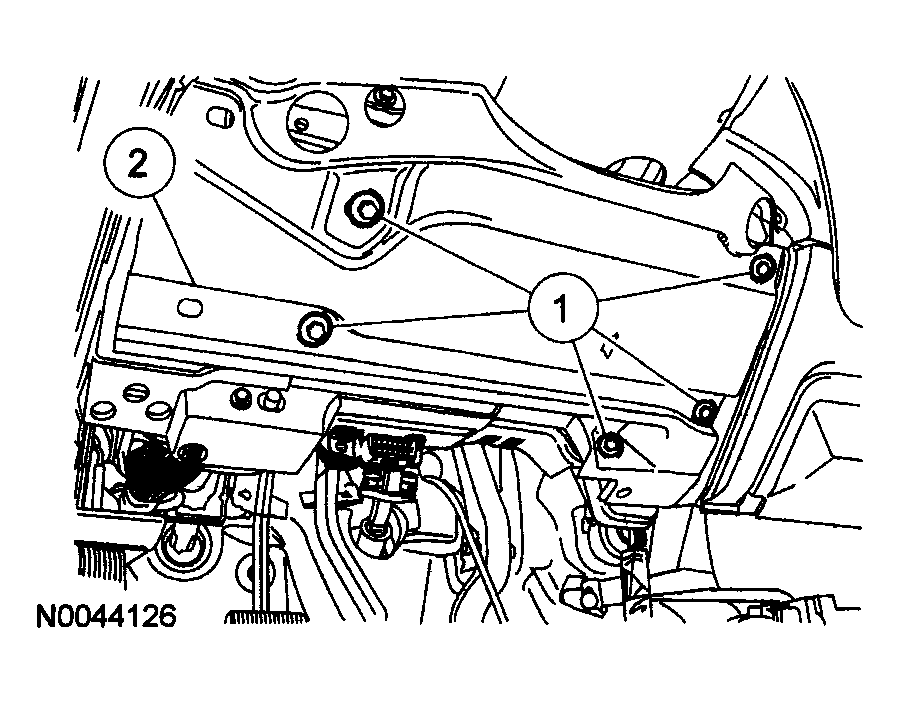

Fig 4: Removing Instrument Panel Steering Column Opening Cover Reinforcement
Remove the 5 bolts and the lower instrument panel reinforcement.
If equipped, position the column-mounted gear shift lever to the lowest position.
Remove the 5 screws and remove the instrument cluster finish panel.
- Disconnect the electrical connectors.

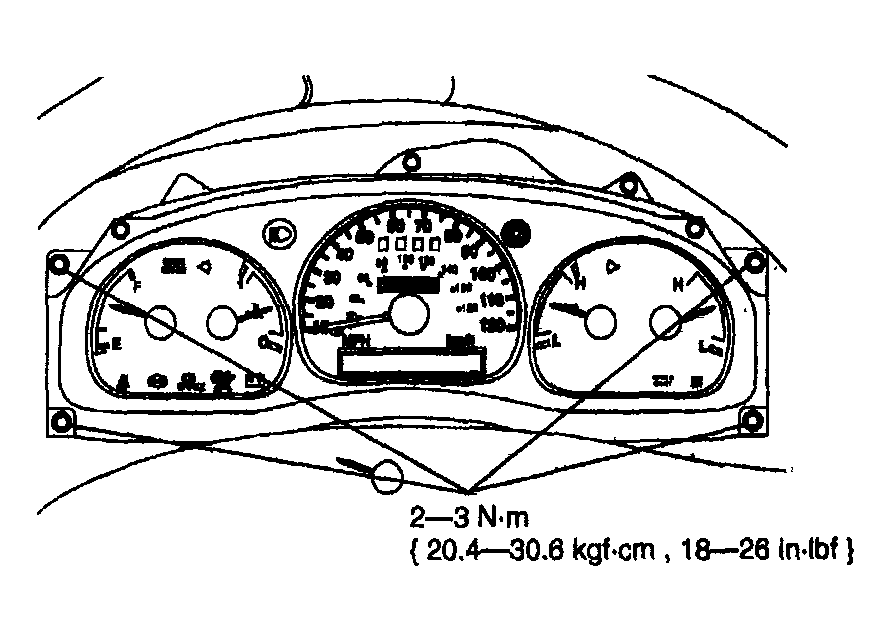

Fig 5: Removing/Installing Instrument Cluster Screws With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the 4 instrument cluster screws.

Fig 6: Disconnecting Transmission Range Indicator
Courtesy of MAZDA MOTORS CORP.
If equipped with an automatic transaxle, release the retaining tab and remove the transmission range indicator.
Disconnect the electrical connectors and remove the instrument cluster.
