Removal and Installation

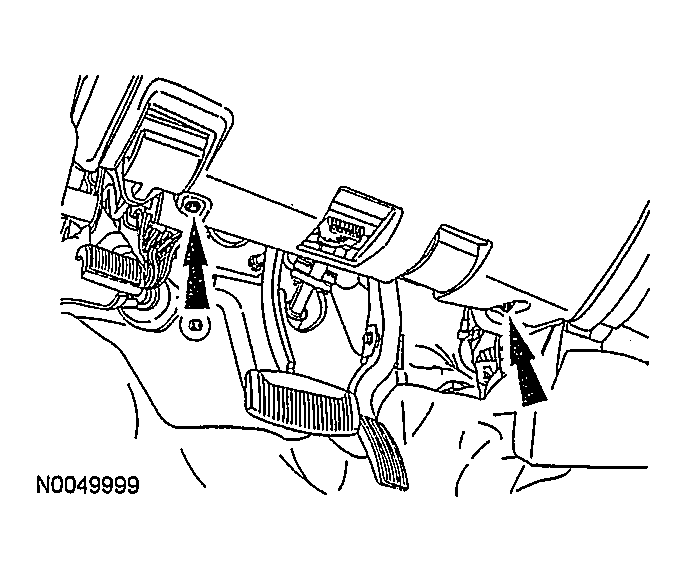

Fig 1: Removing Screws For Positioning Hood Release Handle Aside

Remove the 2 screws and position the hood release handle aside.

Fig 2: Steering Column Opening Panel Screws
Courtesy of MAZDA MOTOR CORP.
Remove the 2 screws from the steering column opening panel.
Remove the steering column opening panel from the retainers and remove the panel.

Fig 3: Removing Instrument Panel Steering Column Opening Cover Reinforcement
Remove the instrument panel steering column opening cover reinforcement.
1. Remove the 5 bolts.
  Tightening Torque: 8 Nm {0.8 kgf-m, 71 lb-in}
2. Remove the reinforcement.
Remove the instrument panel center finish panel. See INSTRUMENT CLUSTER CENTER FINISH PANEL .

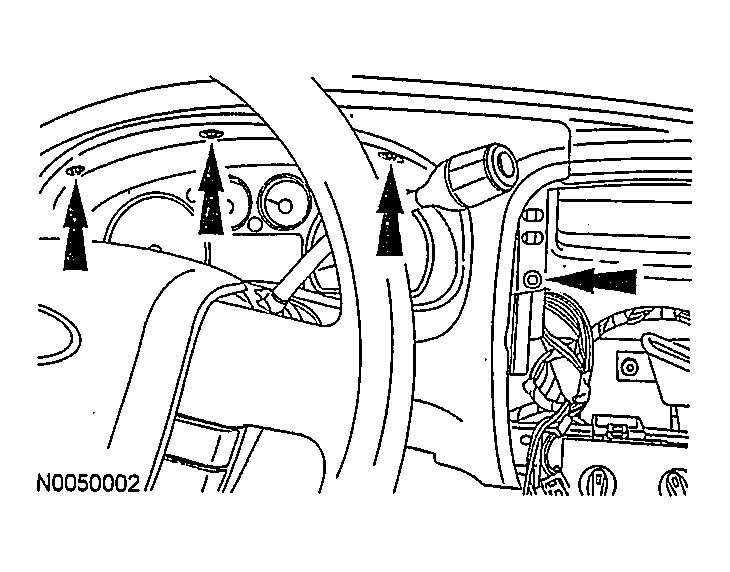

Fig 4: Instrument Cluster Finish Panel Screws
Courtesy of MAZDA MOTOR CORP.
Remove the 4 upper screws from the instrument cluster finish panel.

Fig 5: Instrument Cluster Finish Panel Screws
Courtesy of MAZDA MOTOR CORP.
Remove the 2 lower screws from the instrument cluster finish panel.

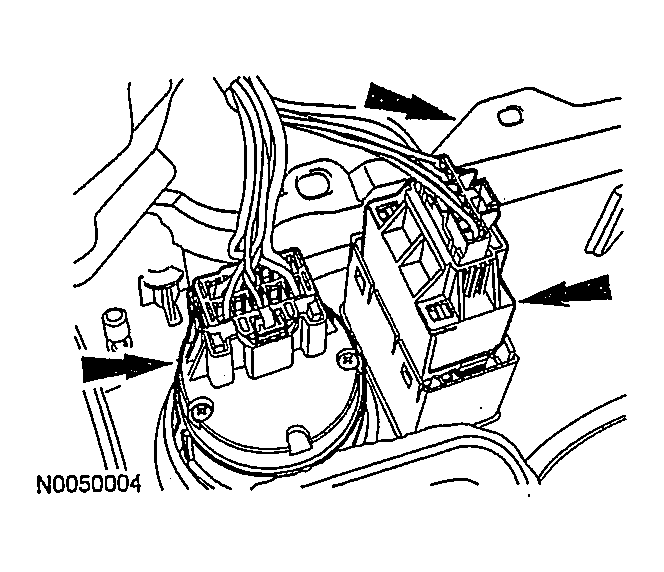

Fig 6: Electrical Connectors
Courtesy of MAZDA MOTOR CORP.
Disconnect the electrical connectors and remove the instrument cluster finish panel.
To install, reverse the removal procedure.
