Home >> Mazda >> 2007 >> B4000 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrumentation/Driver Info >> Instrument Cluster Center Finish Panel >> Removal and Installation

Removal and Installation

  1. Remove the audio unit. See AUDIO UNIT .
    Fig 1: Center Finish Panel Screws
    G00432092Courtesy of MAZDA MOTOR CORP.
  2. Remove the 2 center finish panel screws.

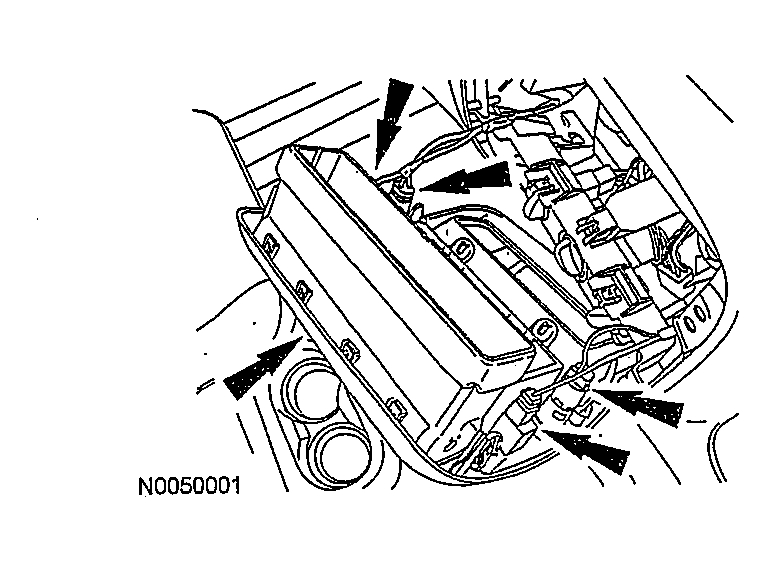

    Fig 2: Retainers And Electrical Connectors
    G00432093Courtesy of MAZDA MOTOR CORP.
  3. Remove the center finish panel from the retainers and disconnect the electrical connectors.
  4. To install, reverse the removal procedure.
