Pinpoint Test 5

PINPOINT TEST 5: ONE OR MORE ILLUMINATION SOURCE(S) IS INOPERATIVE

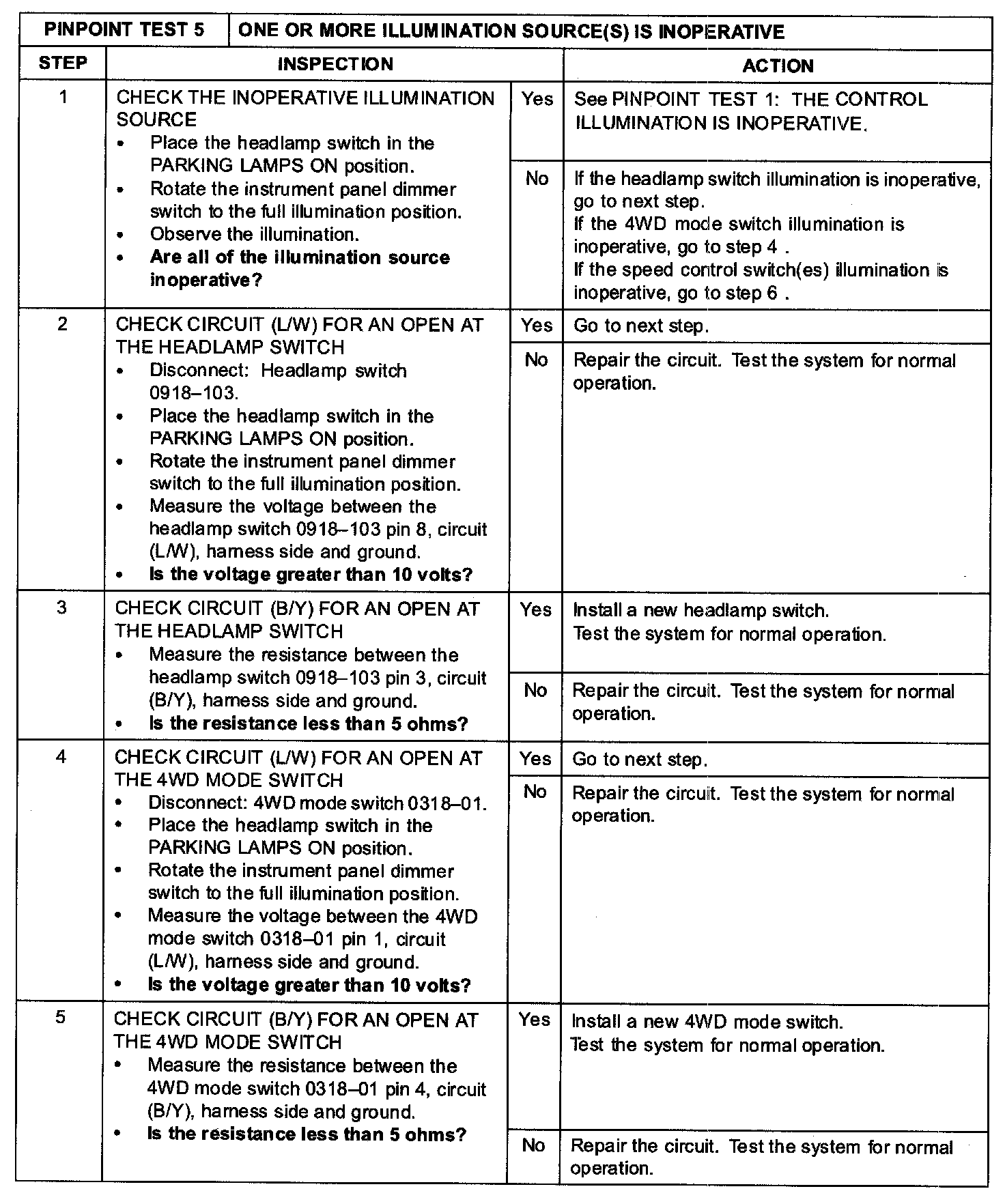

Step 1-Step 5:

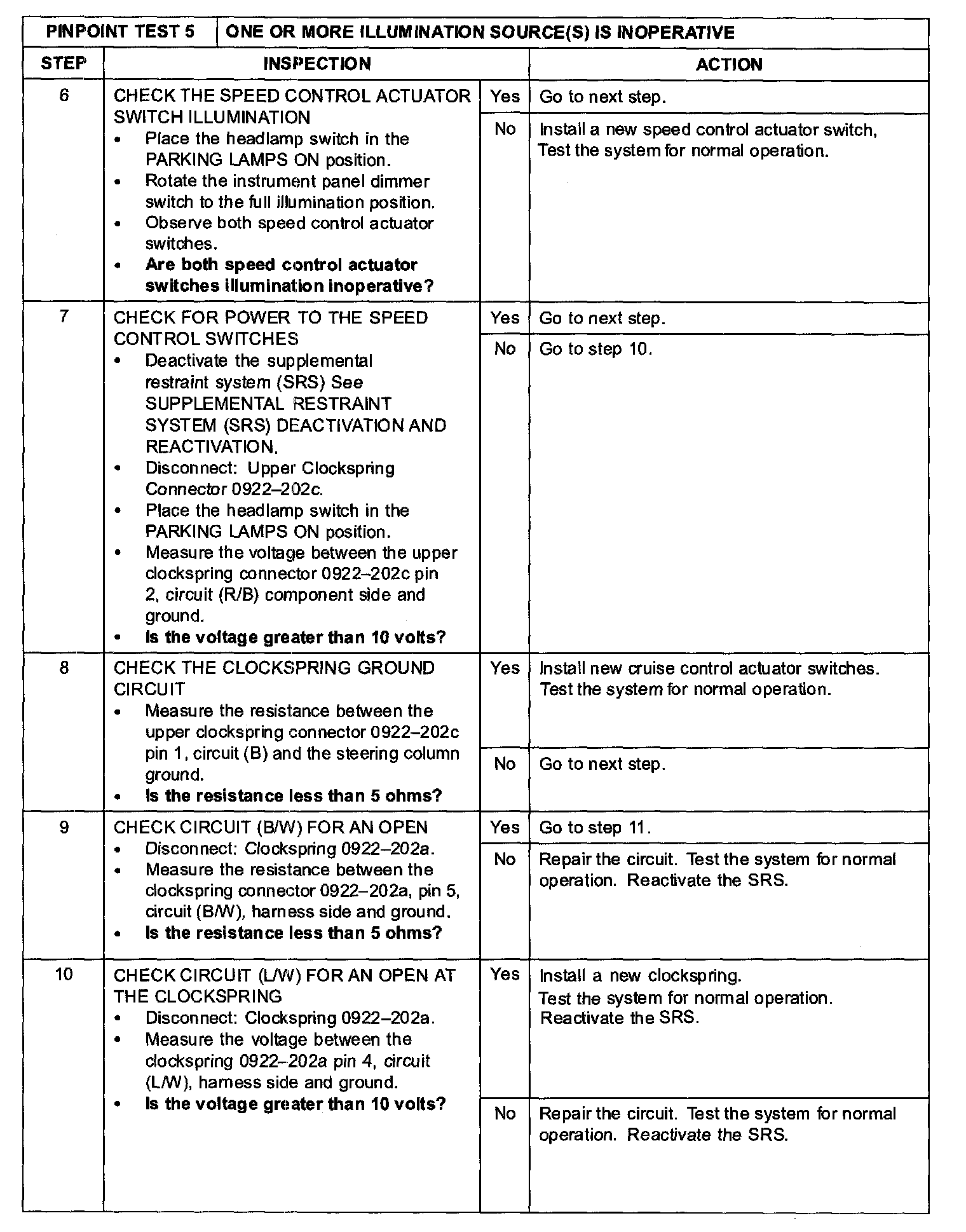

Step 6-Step 10:

Step 11:

Normal Operation
Variable voltage is supplied to the illumination source(s) from the instrument panel dimmer switch on circuit (L/W). The headlamp and four-wheel drive (4WD) mode switches are grounded through circuit (B/Y). The cruise control switches are grounded through circuit (B/W).

Possible Causes
- Circuit (L/W) open
- Circuit (B/Y) open
- Circuit (B/W) open
- Headlamp switch
- 4WD mode switch
- Speed control switch(es)
- Steering wheel control switch harness
- Clockspring

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
