Home >> Mazda >> 2007 >> B3000 V6-3.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Drive Belts, Mounts, Brackets and Accessories >> Drive Belt >> Testing and Inspection

Drive Belt: Testing and Inspection

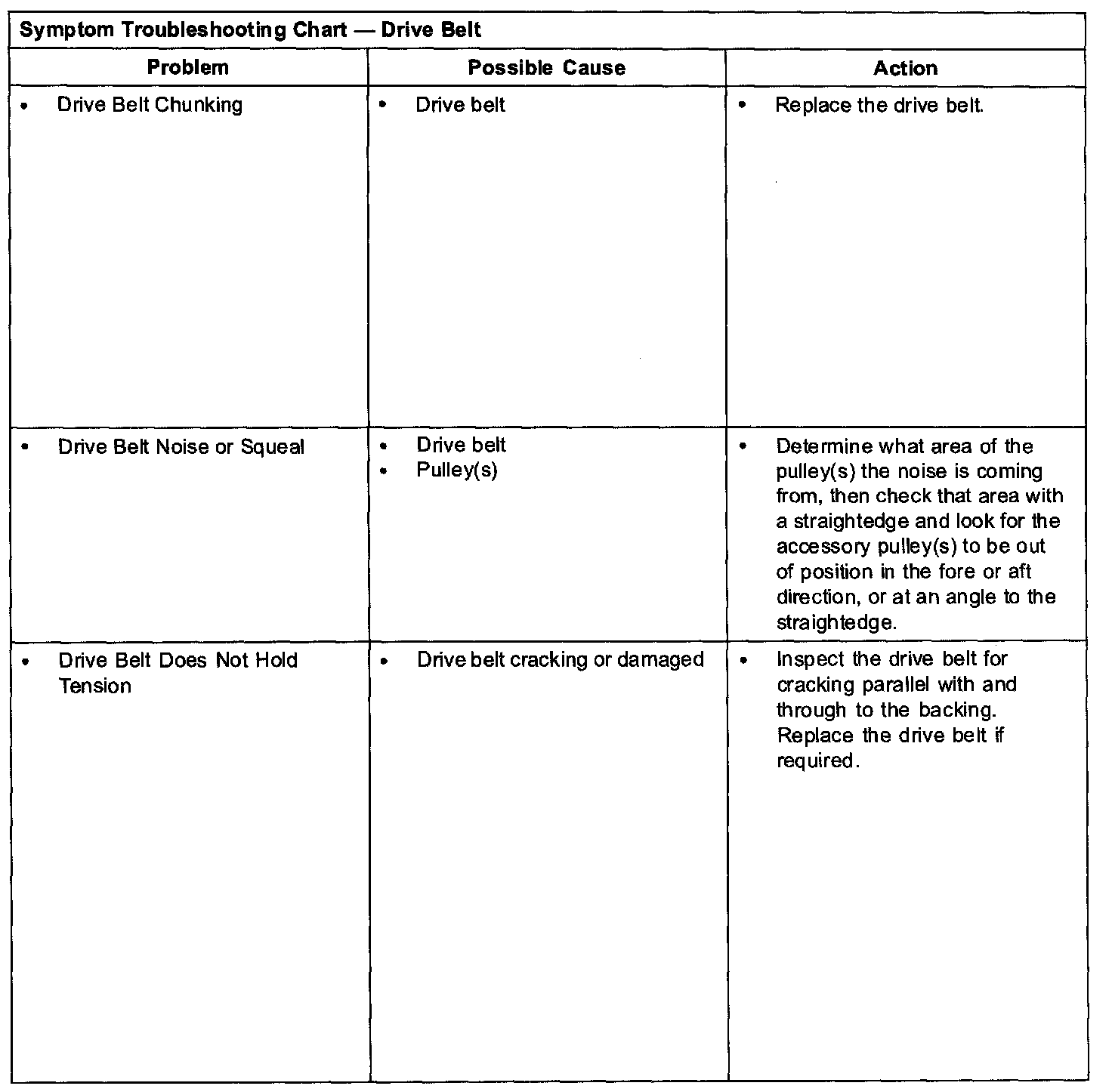

Symptom Troubleshooting Chart - Drive Belt (Part 1):

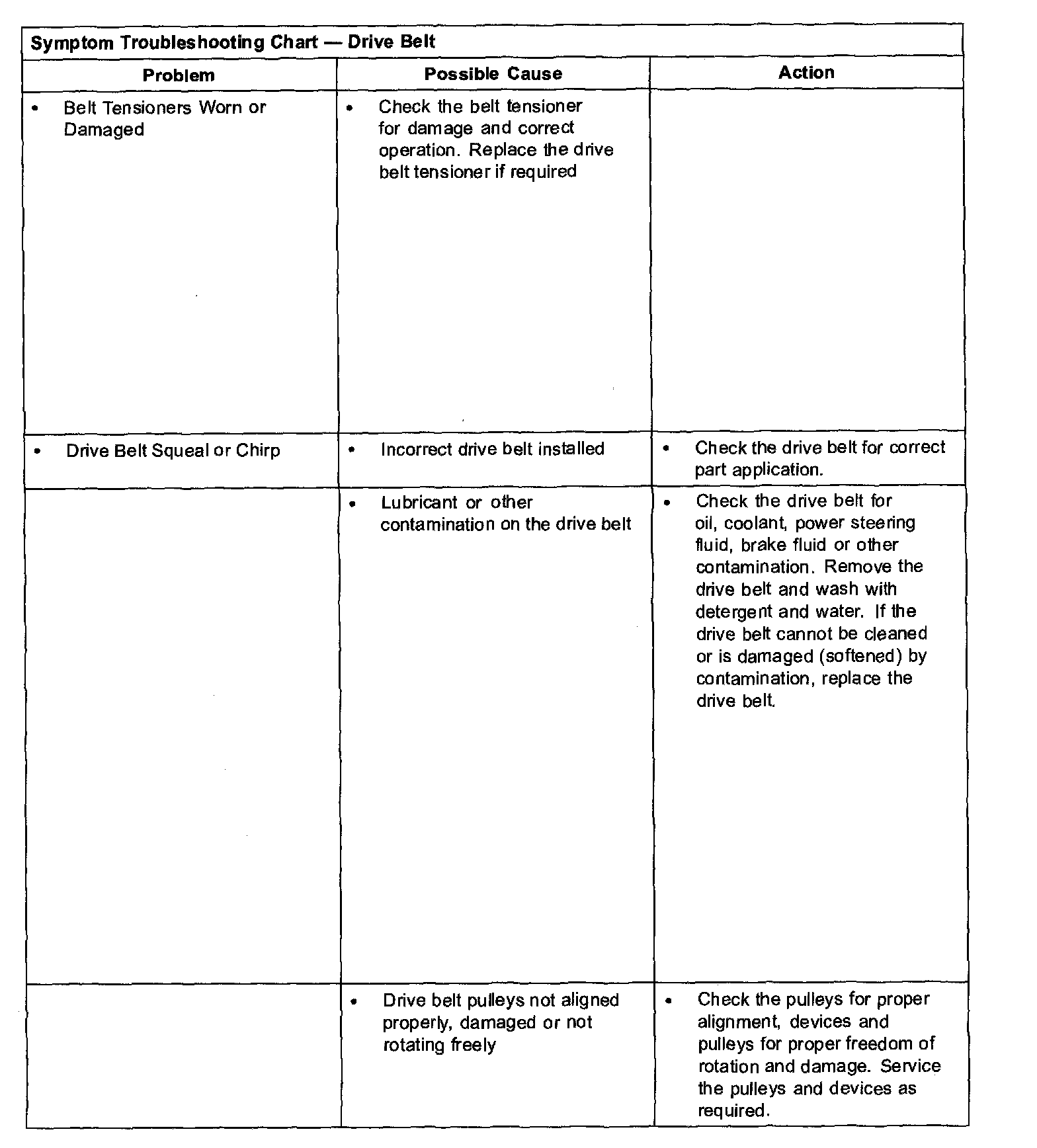

Symptom Troubleshooting Chart - Drive Belt (Part 2):



Symptom Troubleshooting Chart - Drive Belt (Part 3):
