Home >> Mazda >> 2007 >> B3000 V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 00G-2 (Ground Point)

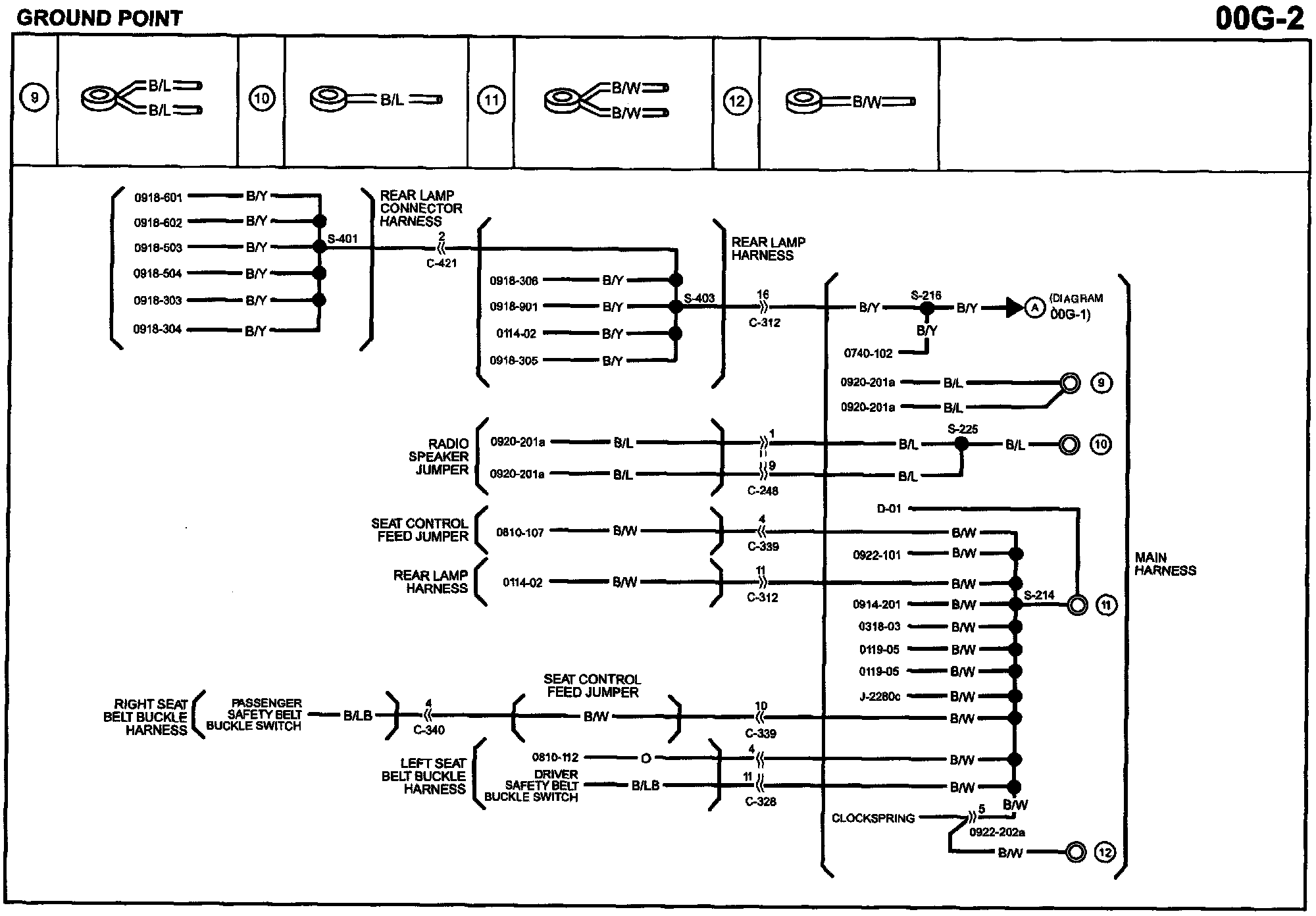

Diagram 00G-2 (Ground Point)

Diagram 00G-2:
