Air Cleaner Outlet Tube Removal / Installation - 3.0L

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the mass air flow (MAF) sensor wiring pushpin, the brake booster vacuum hose and the crankcase ventilation tube quick connect coupling.
Loosen the 2 clamps and remove the air cleaner outlet pipe.

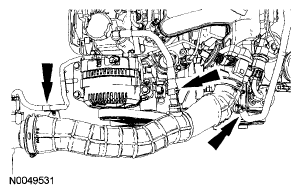

Fig 1: Locating Air Cleaner Outlet Pipe Clamps
Courtesy of MAZDA MOTORS CORP.

Tightening torque:

3 Nm {0.3 kgf-m, 27 in-lbf}
NOTE:
- Visually check the air cleaner intake duct and outlet pipe for any foreign objects, obstructions or punctures.
To install, reverse the removal procedure.
