Hydraulic Lash Adjusters Removal / Installation - 3.0L

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For a valve train noise concern, inspect the valve-to-rocker arm clearance and rocker arms and push rods for wear. See the .

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Drain the engine cooling system. See ENGINE COOLANT REPLACEMENT -- 3.0L .
Remove the lower intake manifold. See INTAKE MANIFOLD LOWER REMOVAL / INSTALLATION - 3.0L , .
Remove the rocker arms and the push rods.

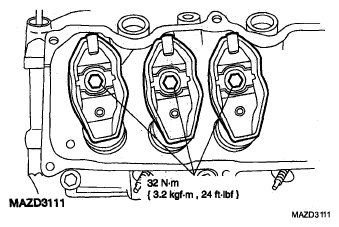

Fig 1: Rocker Arms Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the tappet guide plate retainer.

Fig 2: Locating Tappet Guide Plate Retainer
Courtesy of MAZDA MOTORS CORP.
Remove the valve tappet guide plates.

Fig 3: Locating Valve Tappet Guide Plates
Courtesy of MAZDA MOTORS CORP.
Remove the valve tappets.

Fig 4: Locating Valve Tappets
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

Lubricate the valve tappets and the valve tappet bores with clean engine oil prior to installation.
Tightening Torque 12 N.m {9 lb-ft}
