Oil Pressure Sensor Removal / Installation - 2.3L

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING
Disconnect the battery ground cable. See BATTERY DISCONNECT .
Disconnect the wire connector at the sender.
Remove the oil pressure sender.
To install, reverse the removal procedure.

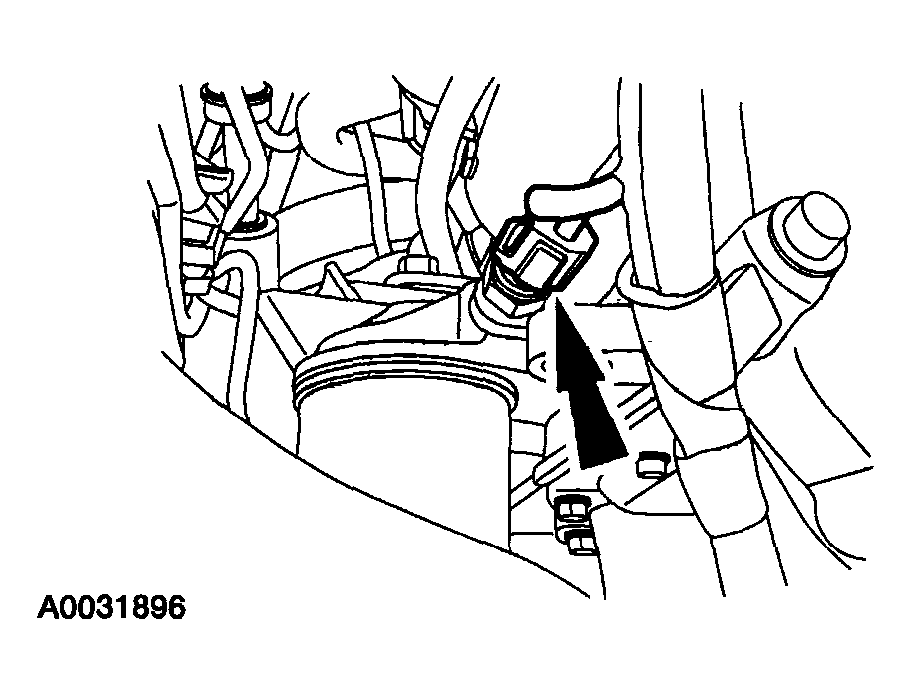

Fig 1: Removing Oil Pressure Sensor
Courtesy of MAZDA MOTORS CORP.

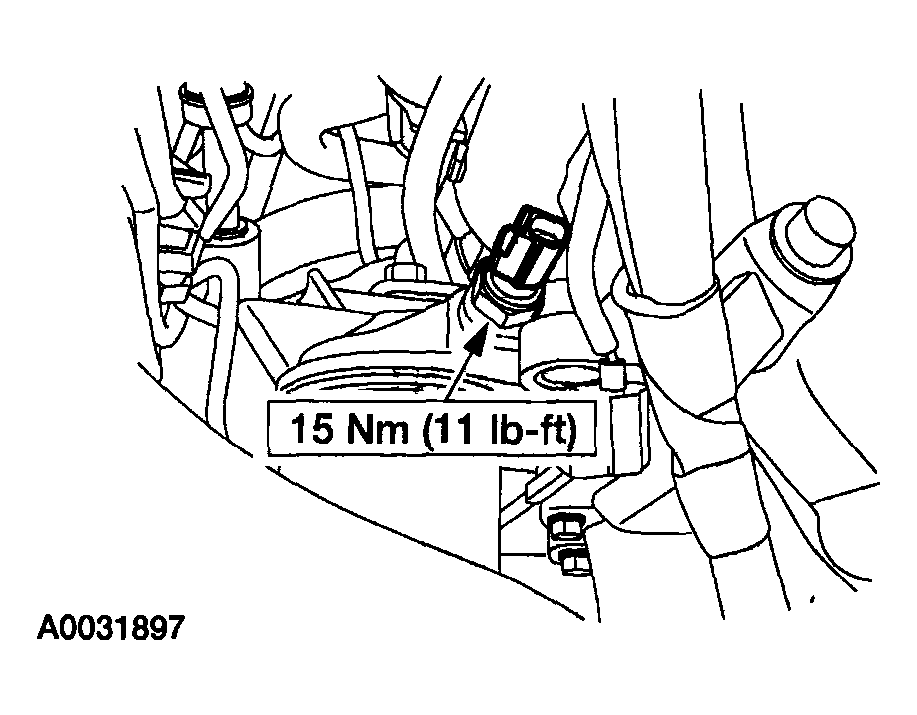

Fig 2: Installing Oil Pressure Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
- Apply sealant to oil pressure sender threads.
