Water Pump Removal / Installation - 2.3L

Remove the air cleaner outlet pipe. See AIR CLEANER OUTLET PIPE REMOVAL / INSTALLATION - 2.3L .
Drain the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L .
Remove the drive belt. See DRIVE BELT REMOVAL / INSTALLATION - 2.3L .

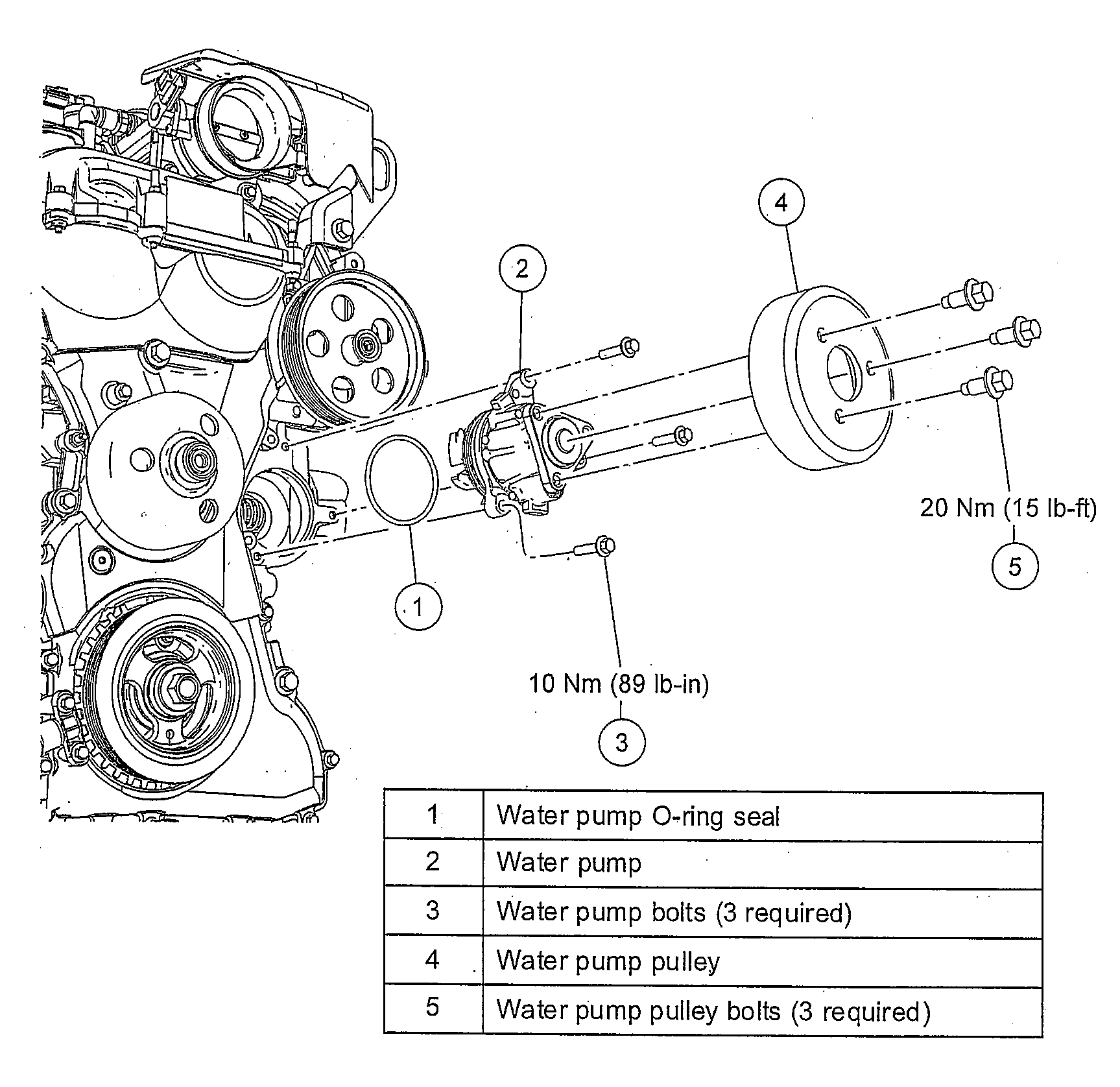

Fig 1: Water Pump Replacement Components With Torque Specifications
Courtesy of MAZDA MOTOR CORP.
Remove the bolts and the water pump pulley.

Fig 2: Removing/Installing Water Pump With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the water pump.

Fig 3: Identifying Water Pump O-Ring
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lubricate the water pump O-ring with clean engine coolant.
To install, reverse the removal procedure.
