2WD

WHEEL SPEED SENSOR - FRONT, 2WD

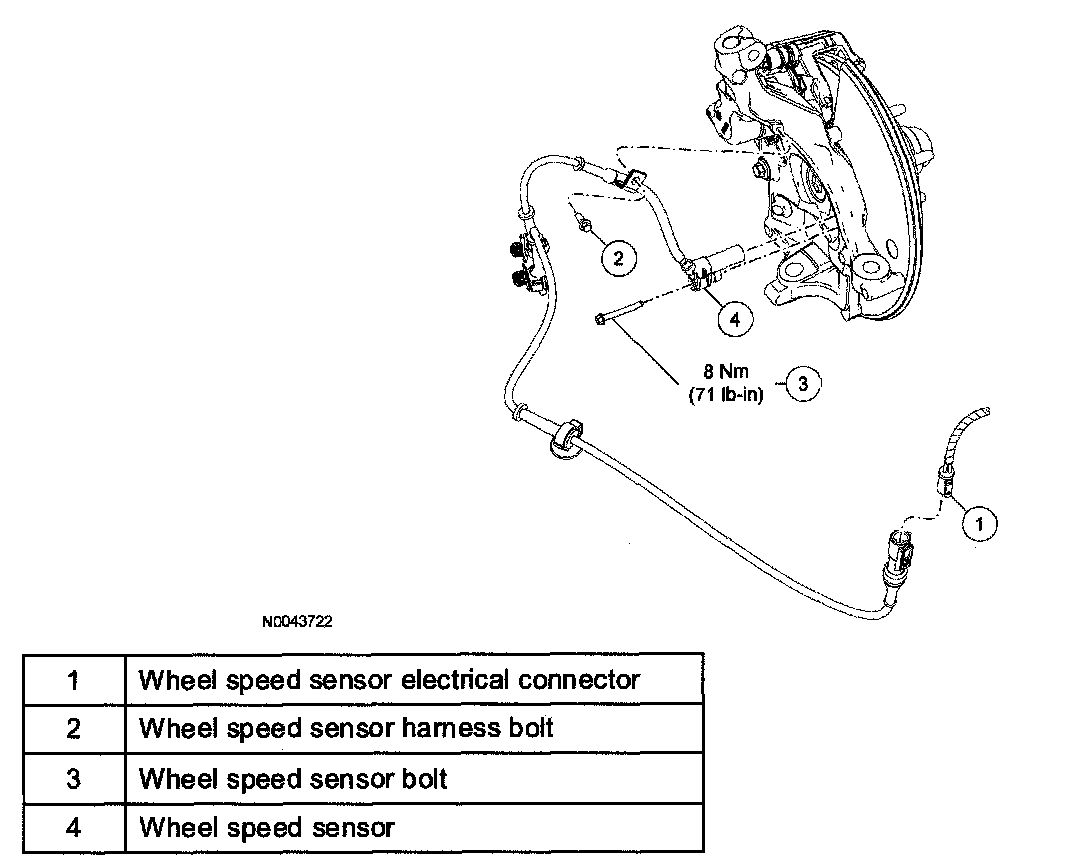

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the negative battery cable.
3. Disconnect the wheel speed sensor electrical connector.
4. Remove the wheel speed sensor harness bolt and unclip the retainers.
5. Remove the wheel speed sensor bolt and the wheel speed sensor.
^ To install, tighten to 8 N-m (0.8 kgf-m, 71 in-lbf).

Note:
^ Plug the sensor cavity and thoroughly clean the sensor mounting surface. Apply wheel bearing grease to the mounting surface.

6. To install, reverse the removal procedure.
