Connectors End Views

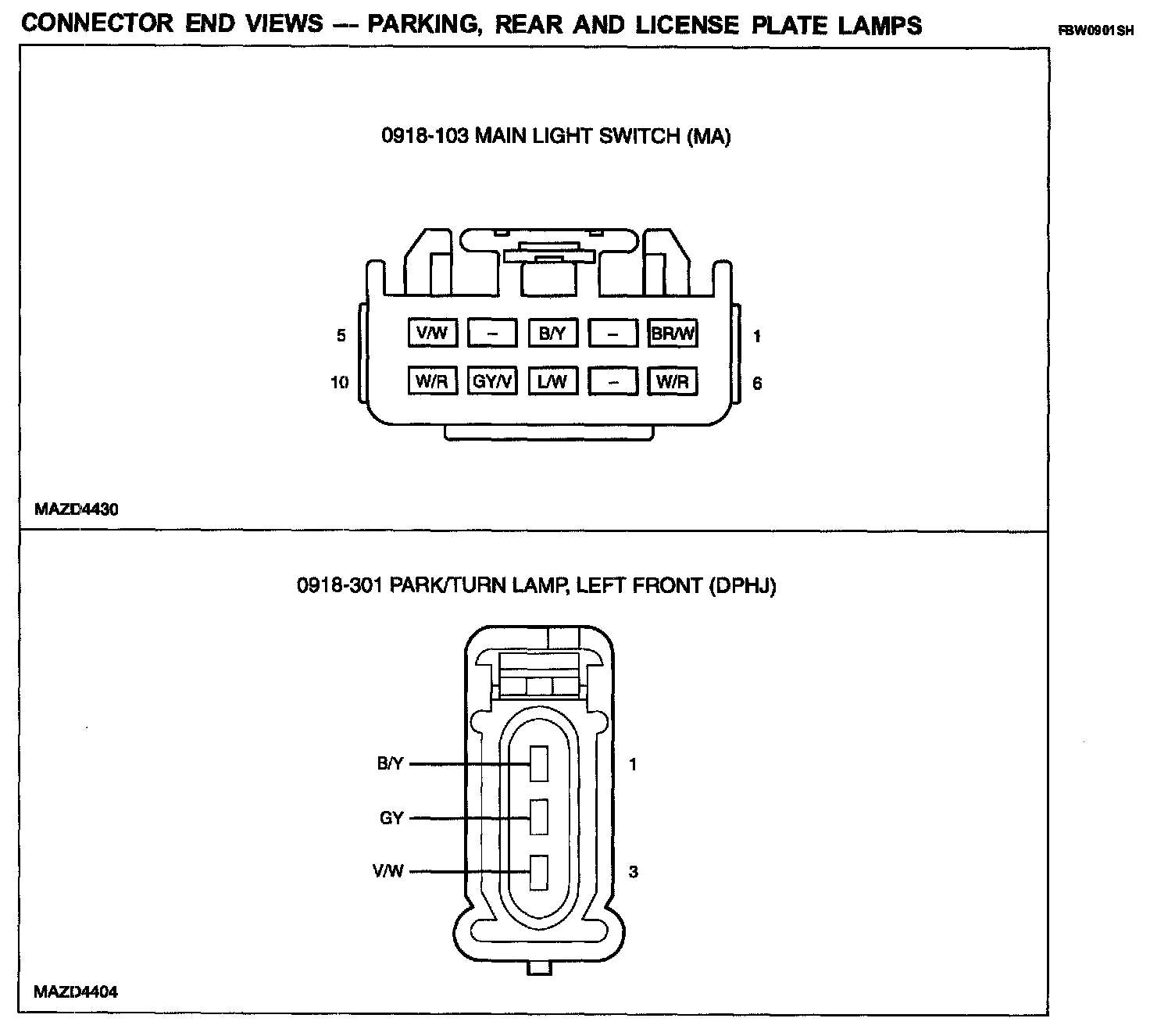

Connector End Views - Parking, Rear And License Plate Lamps (Part 1):

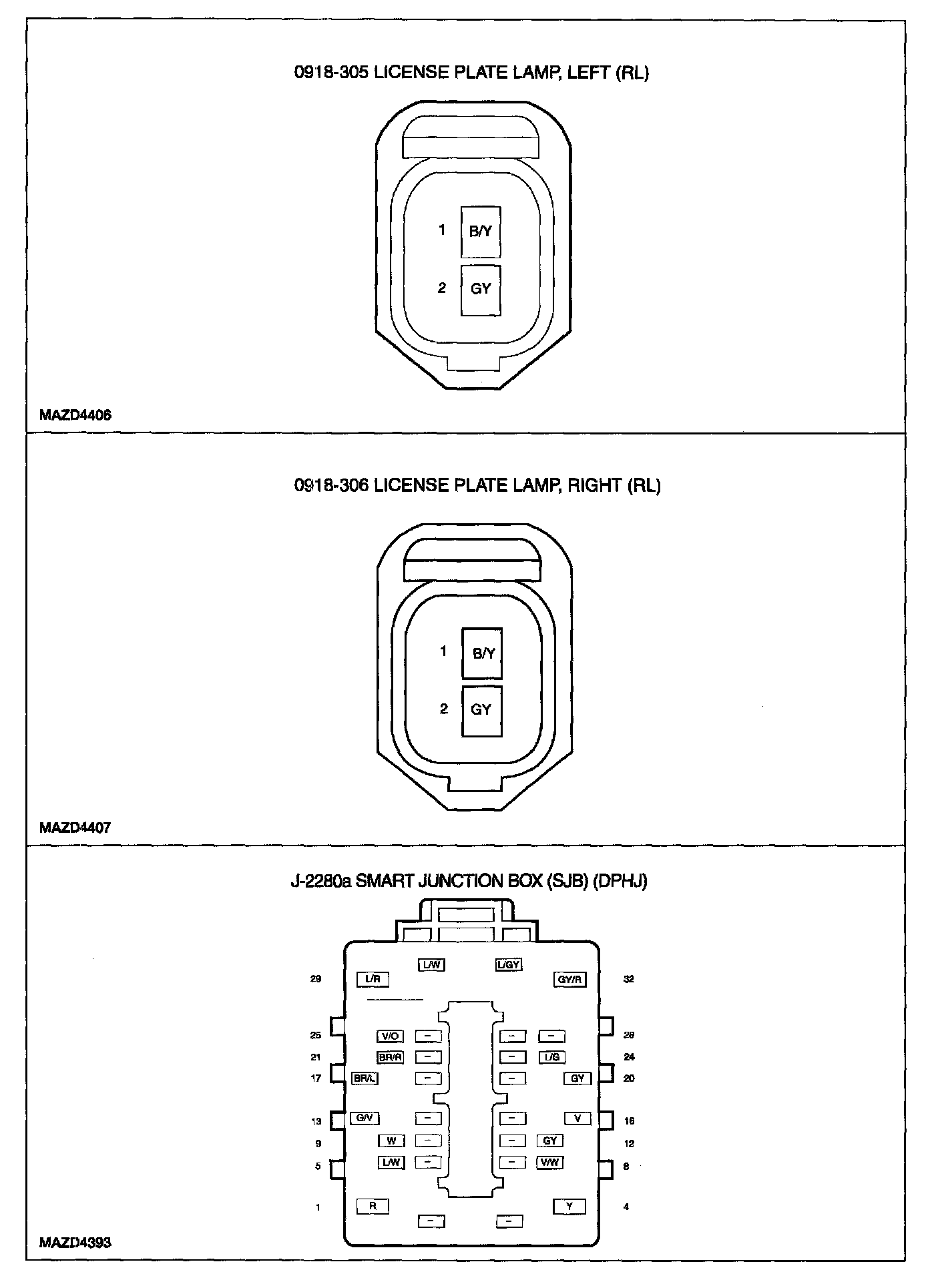

Connector End Views - Parking, Rear And License Plate Lamps (Part 2):

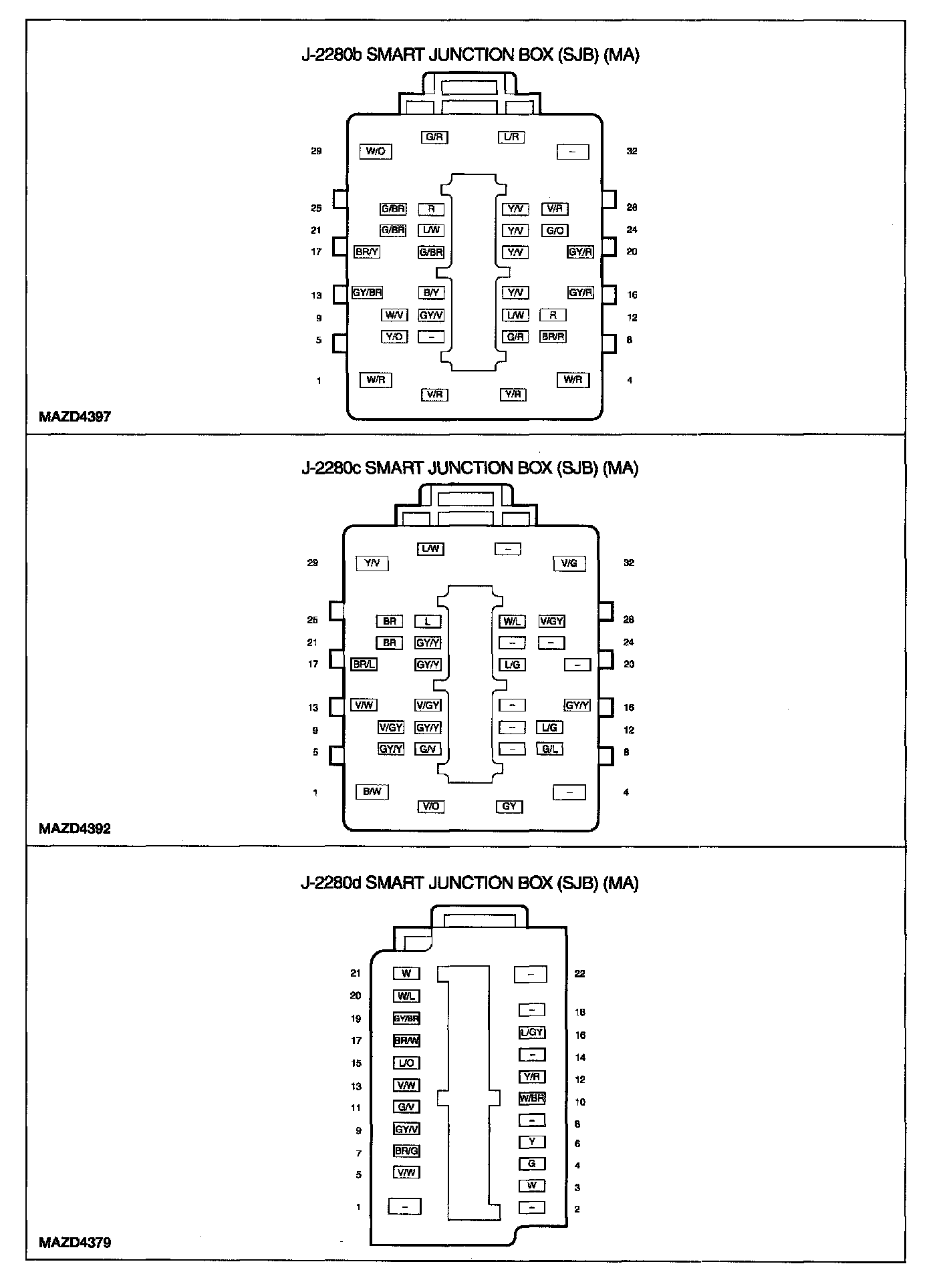

Connector End Views - Parking, Rear And License Plate Lamps (Part 3):

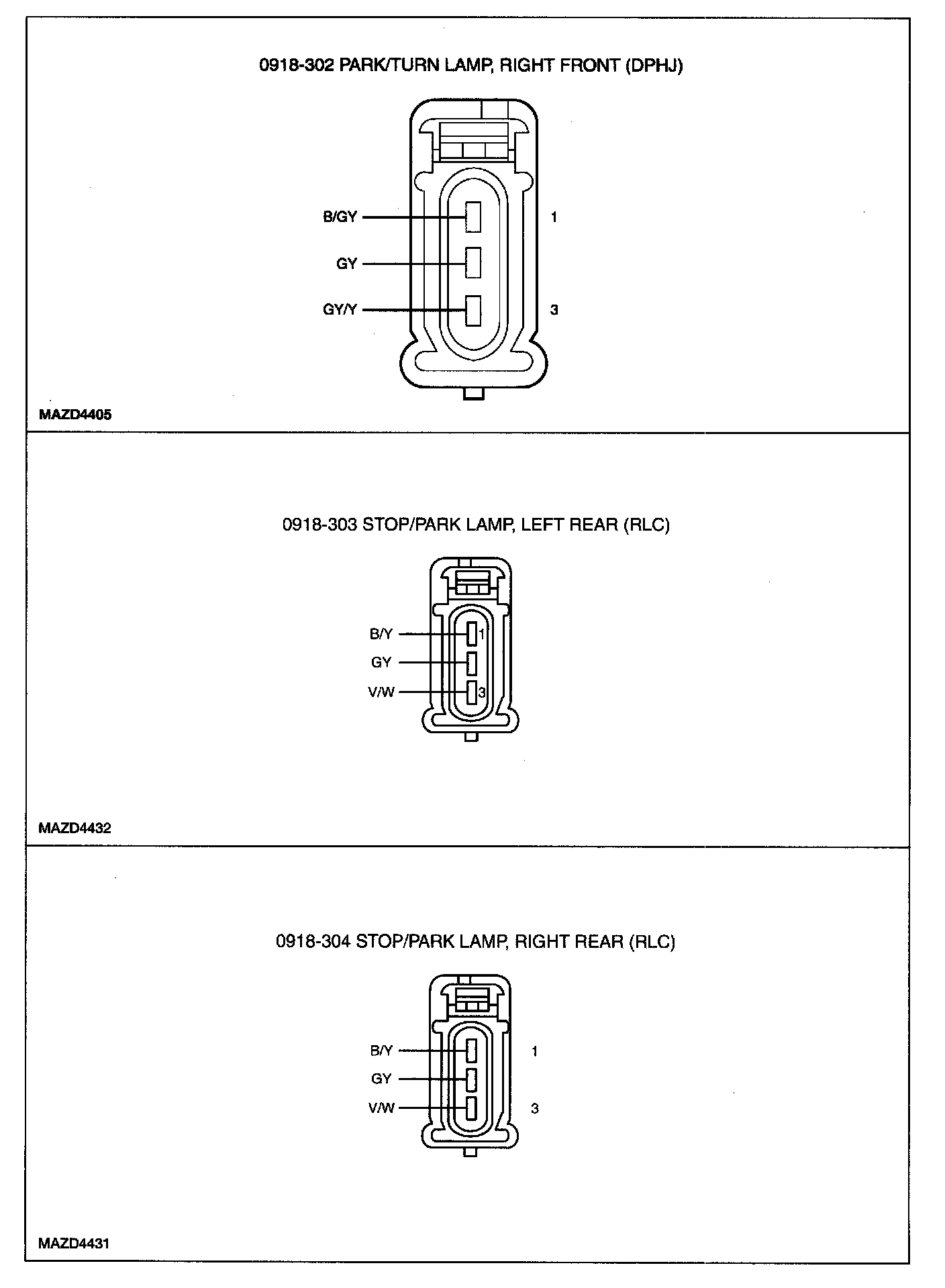

Connector End Views - Parking, Rear And License Plate Lamps (Part 4):
