Antenna Cable: Service and Repair

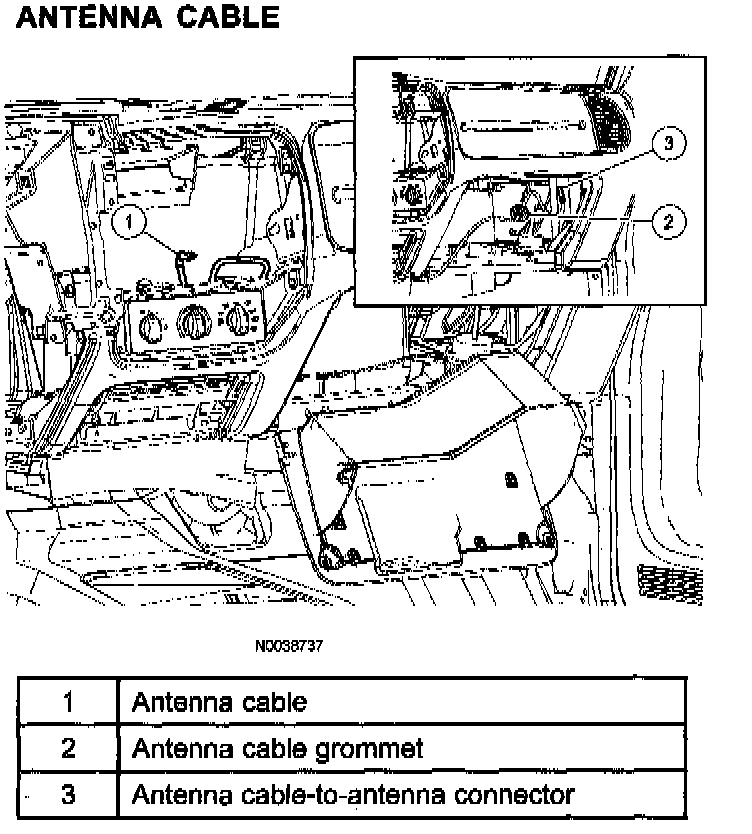

Antenna Cable






Removal and Installation

1. Remove the antenna.
2. Remove the audio unit.
3. Release the tabs and lower the glove compartment door to the full open position.
4. Remove the antenna cable.
- Pull the rubber grommet from the sheet metal.
- Remove the antenna cable through the glove compartment door opening.
5. To install, reverse the removal procedure.
