P1702
P1702

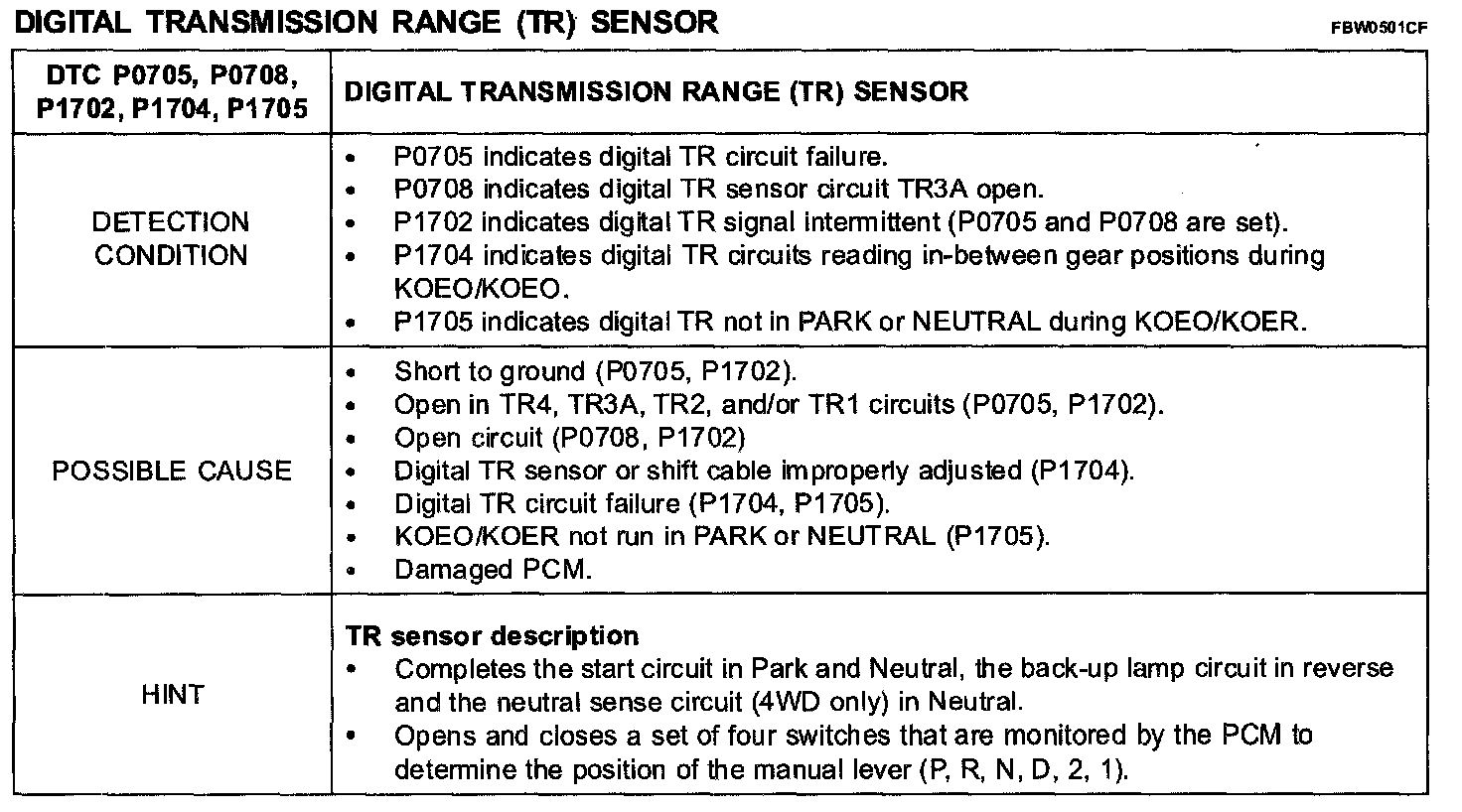

DIGITAL TRANSMISSION RANGE (TR)-SENSOR
Digital Transmission Range (TR) Sensor:

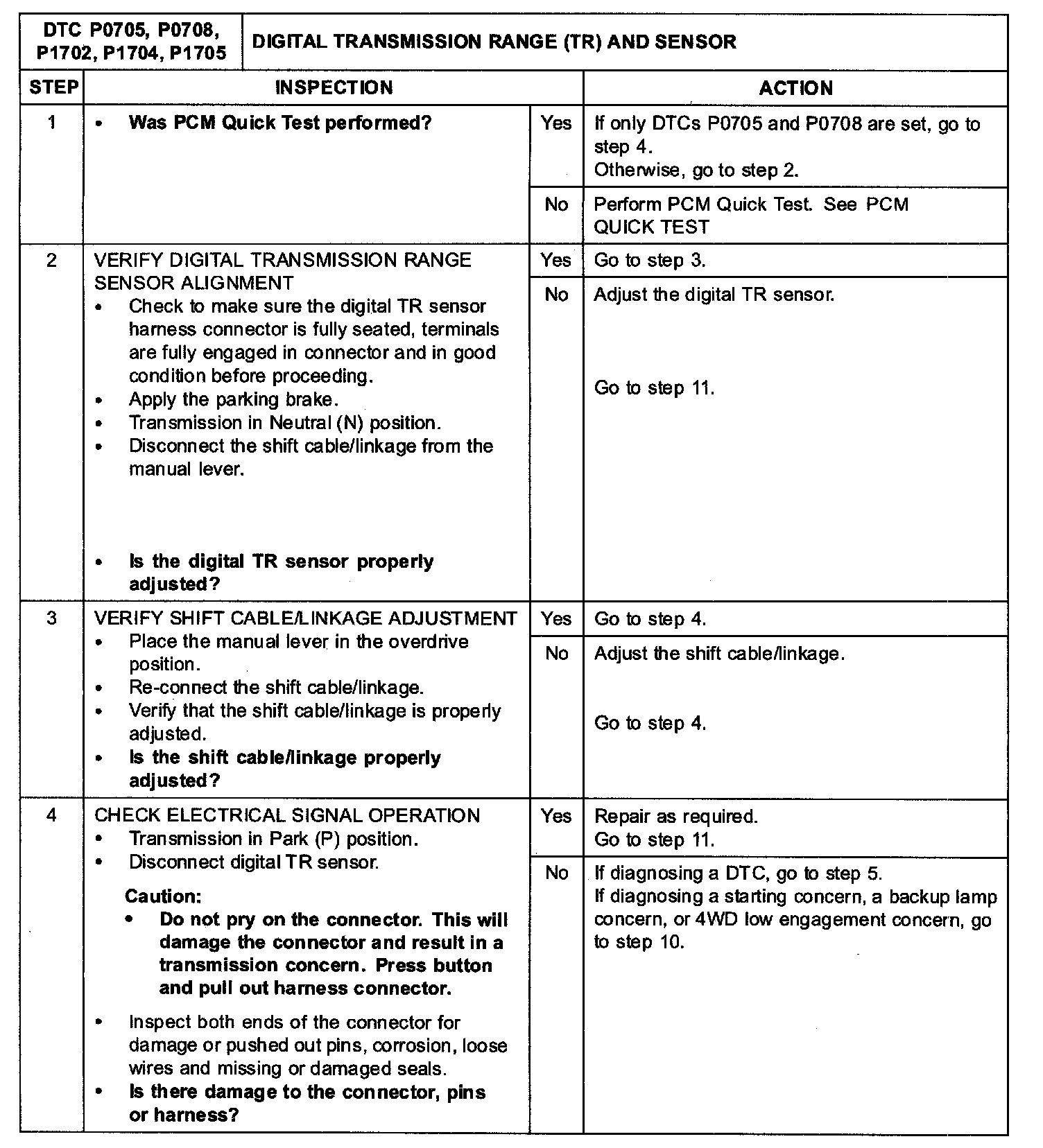

Step 1-Step 4:

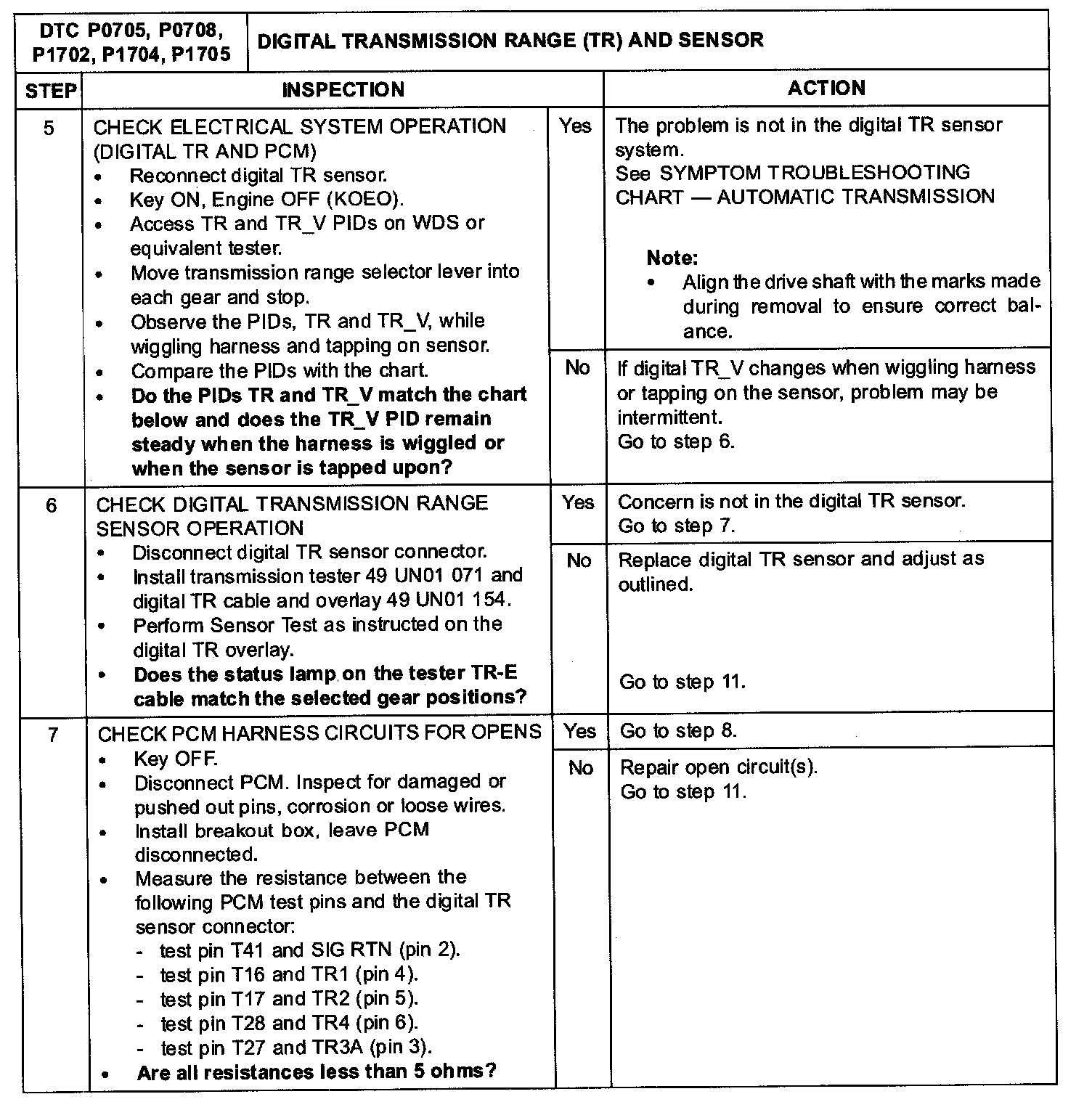

Step 5-Step 7:

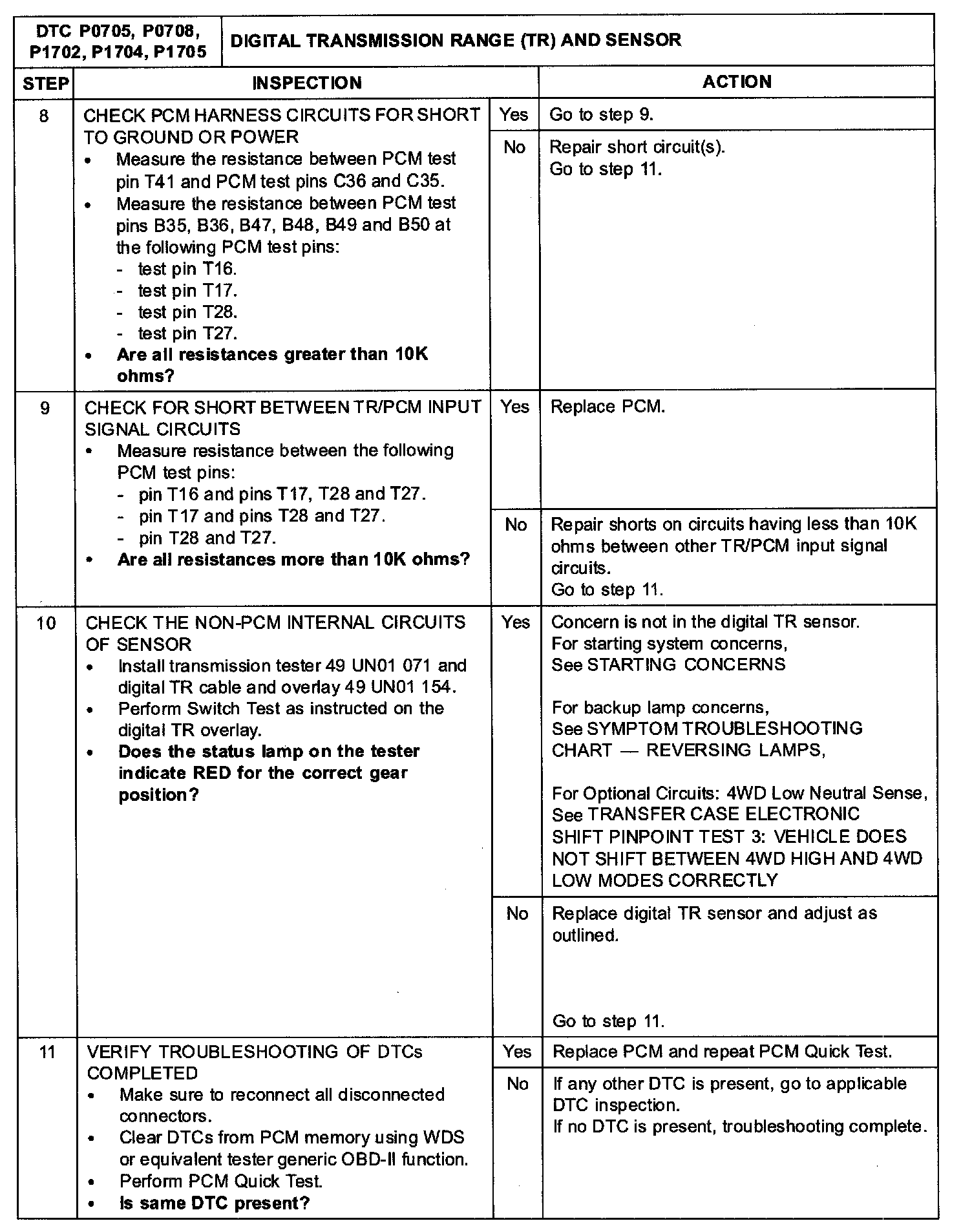

Step 8-Step 11:
