Home >> Mazda >> 2007 >> B2300 L4-2.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> DTC Application Chart - Powertrain Control Module (PCM)

DTC Application Chart - Powertrain Control Module (PCM)

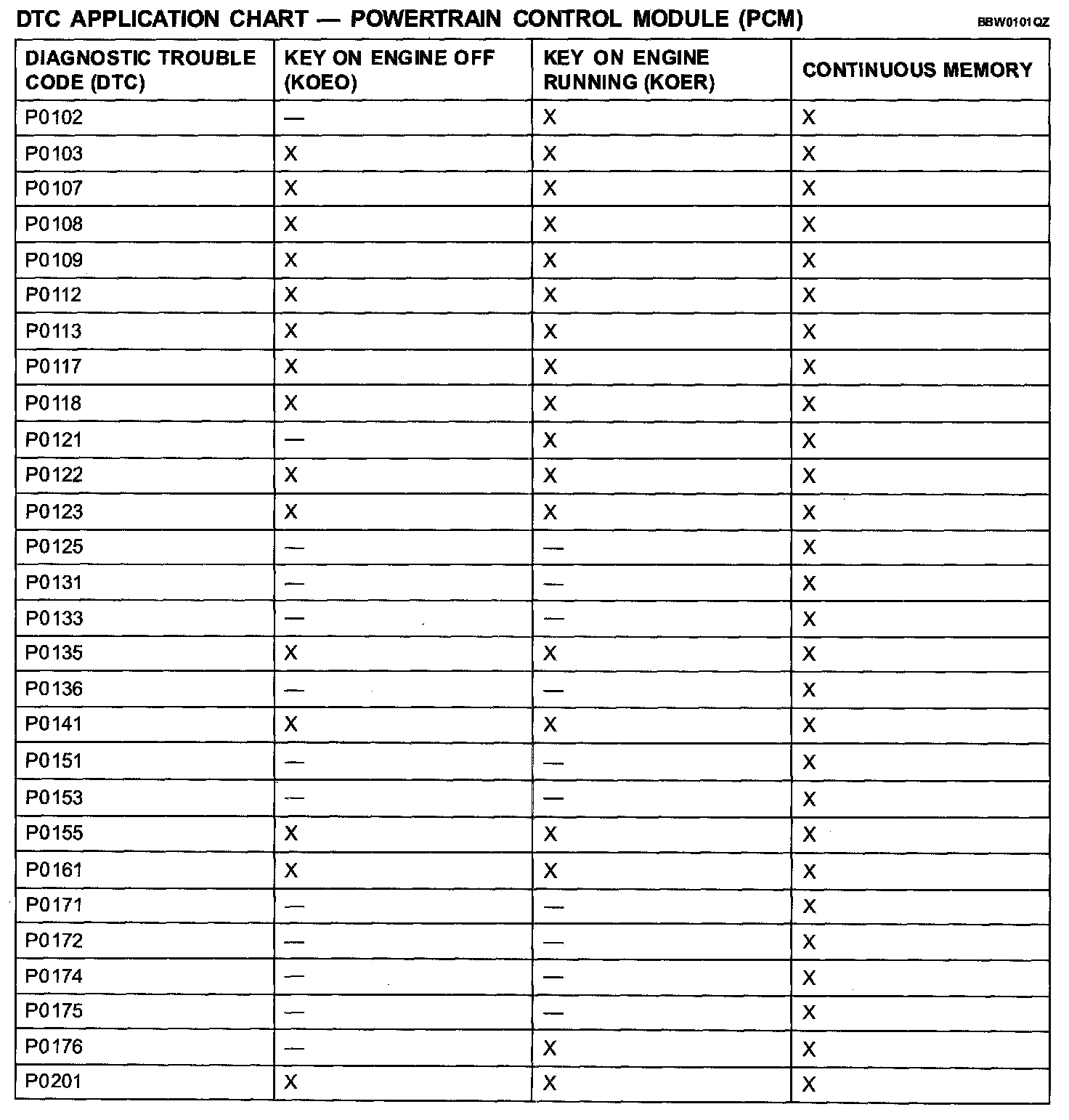

DTC Application Chart - Powertrain Control Module (PCM) (Part 1):

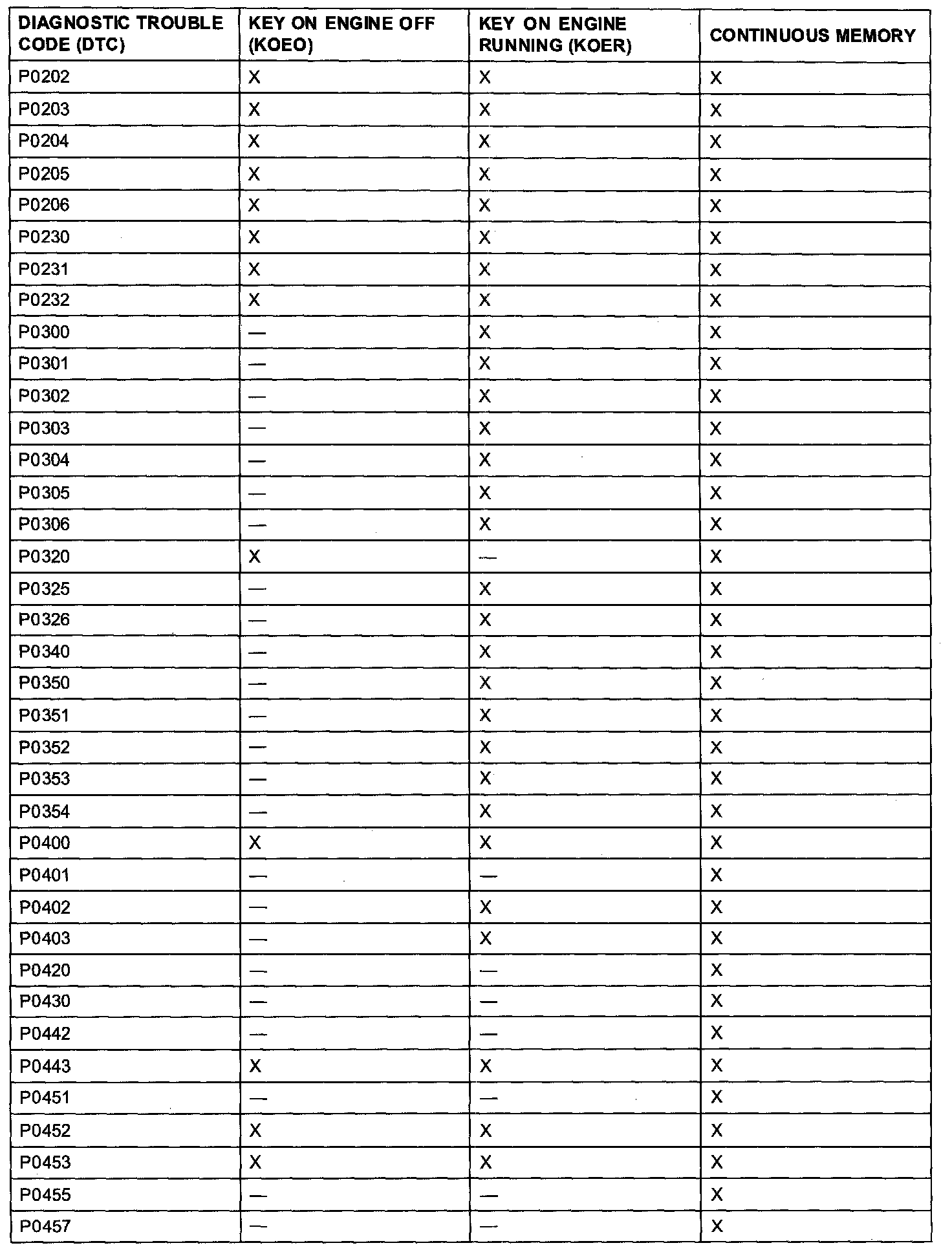

DTC Application Chart - Powertrain Control Module (PCM) (Part 2):

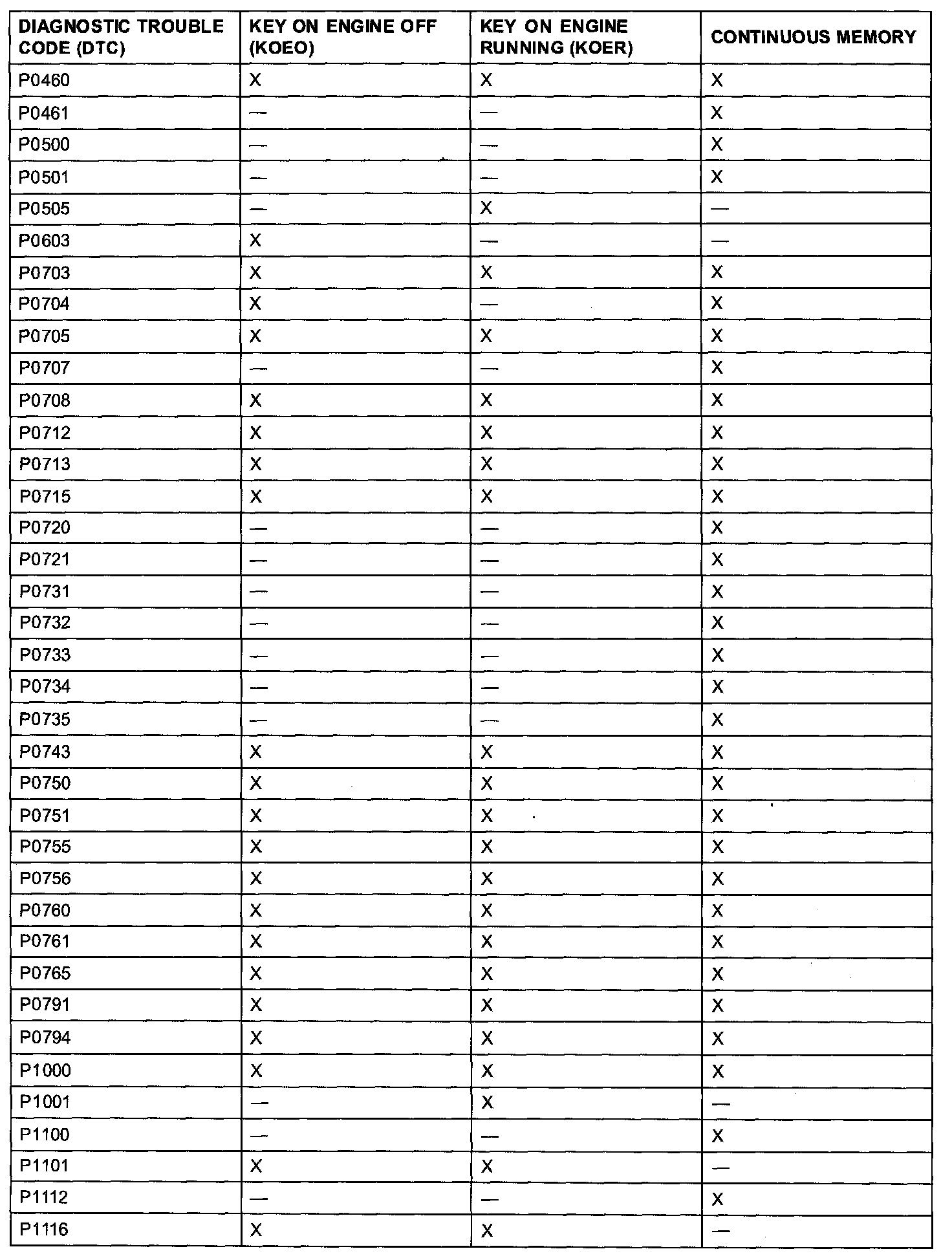

DTC Application Chart - Powertrain Control Module (PCM) (Part 3):

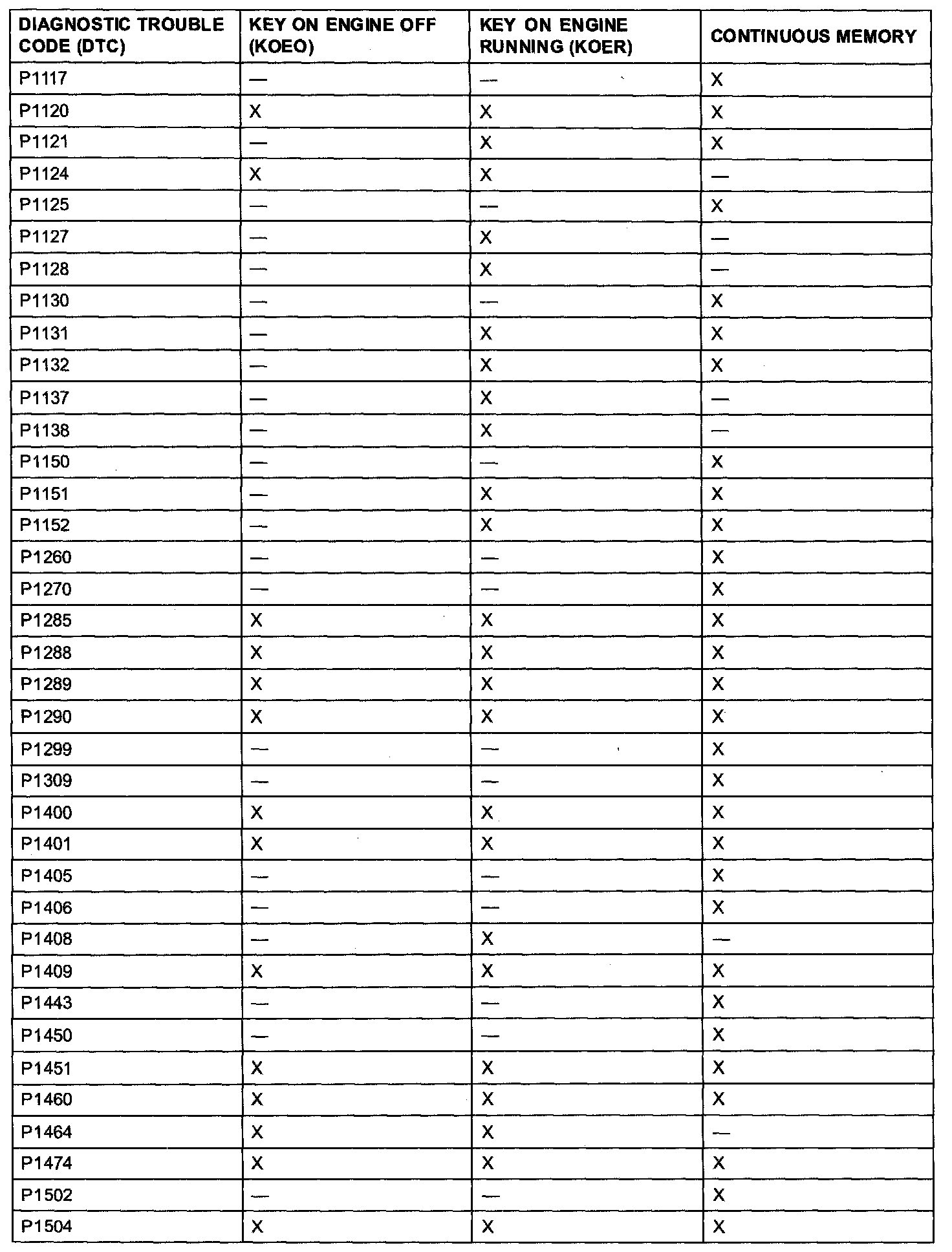

DTC Application Chart - Powertrain Control Module (PCM) (Part 4):

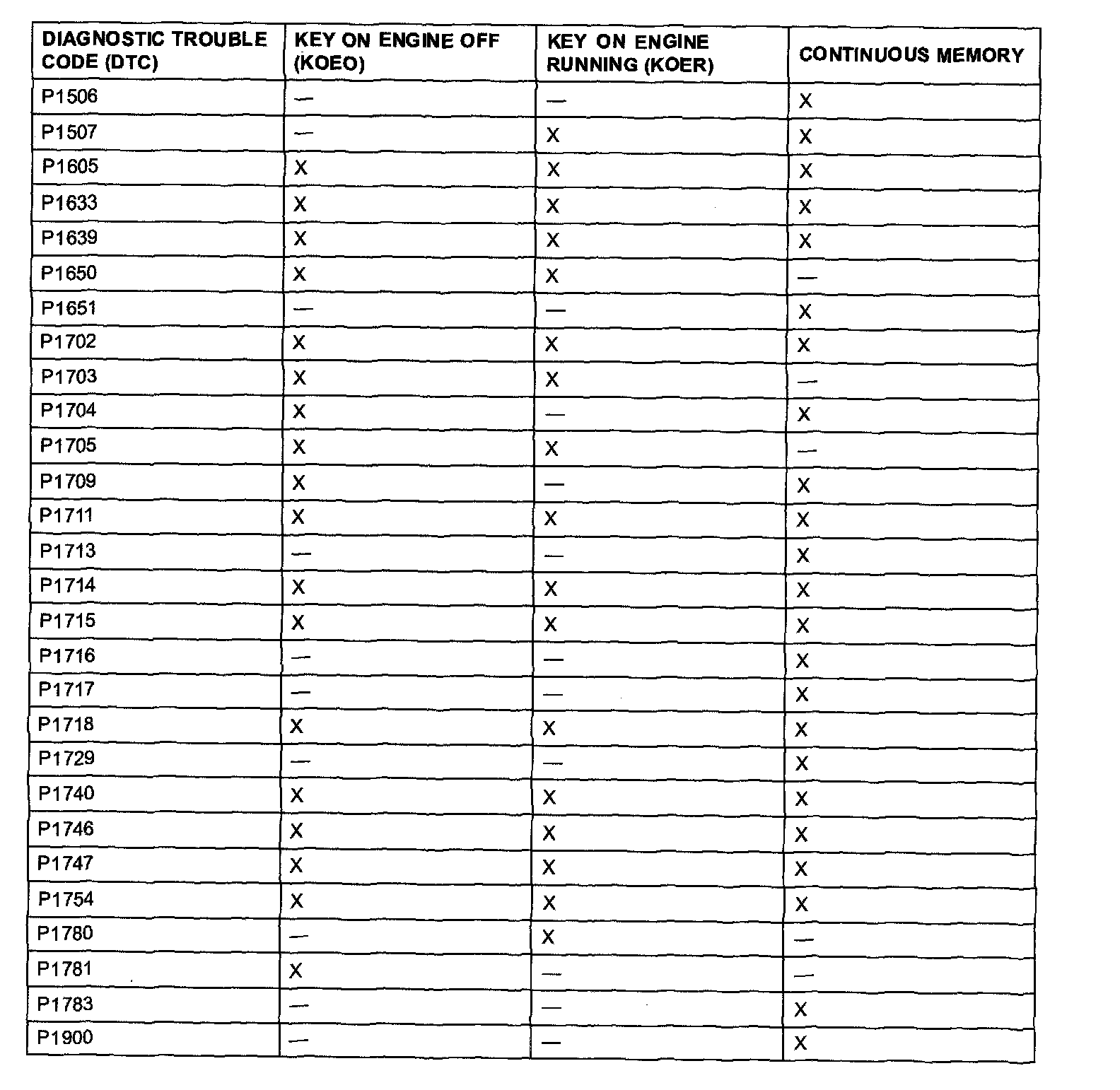

DTC Application Chart - Powertrain Control Module (PCM) (Part 5):
