C1947

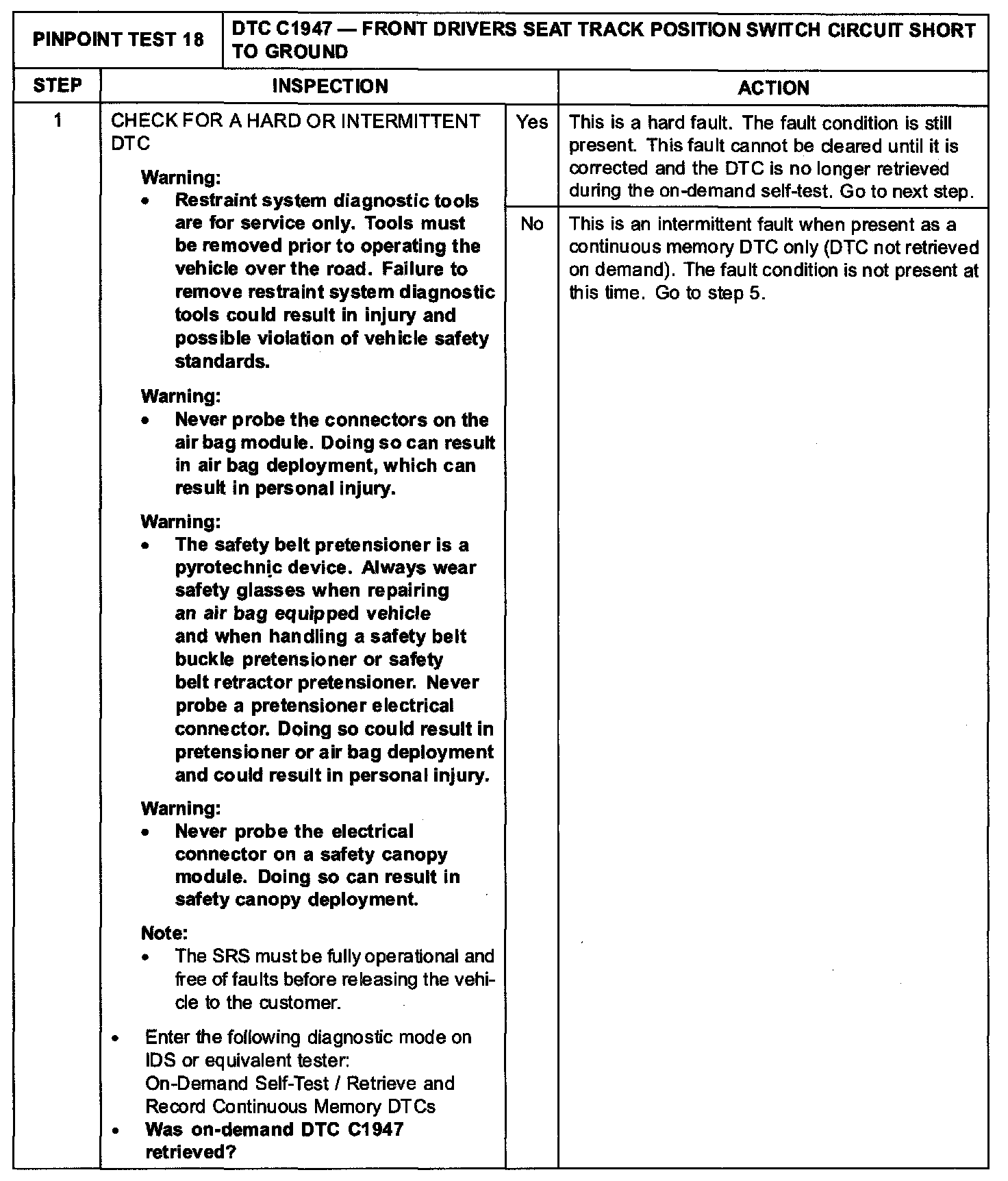

Step 1:

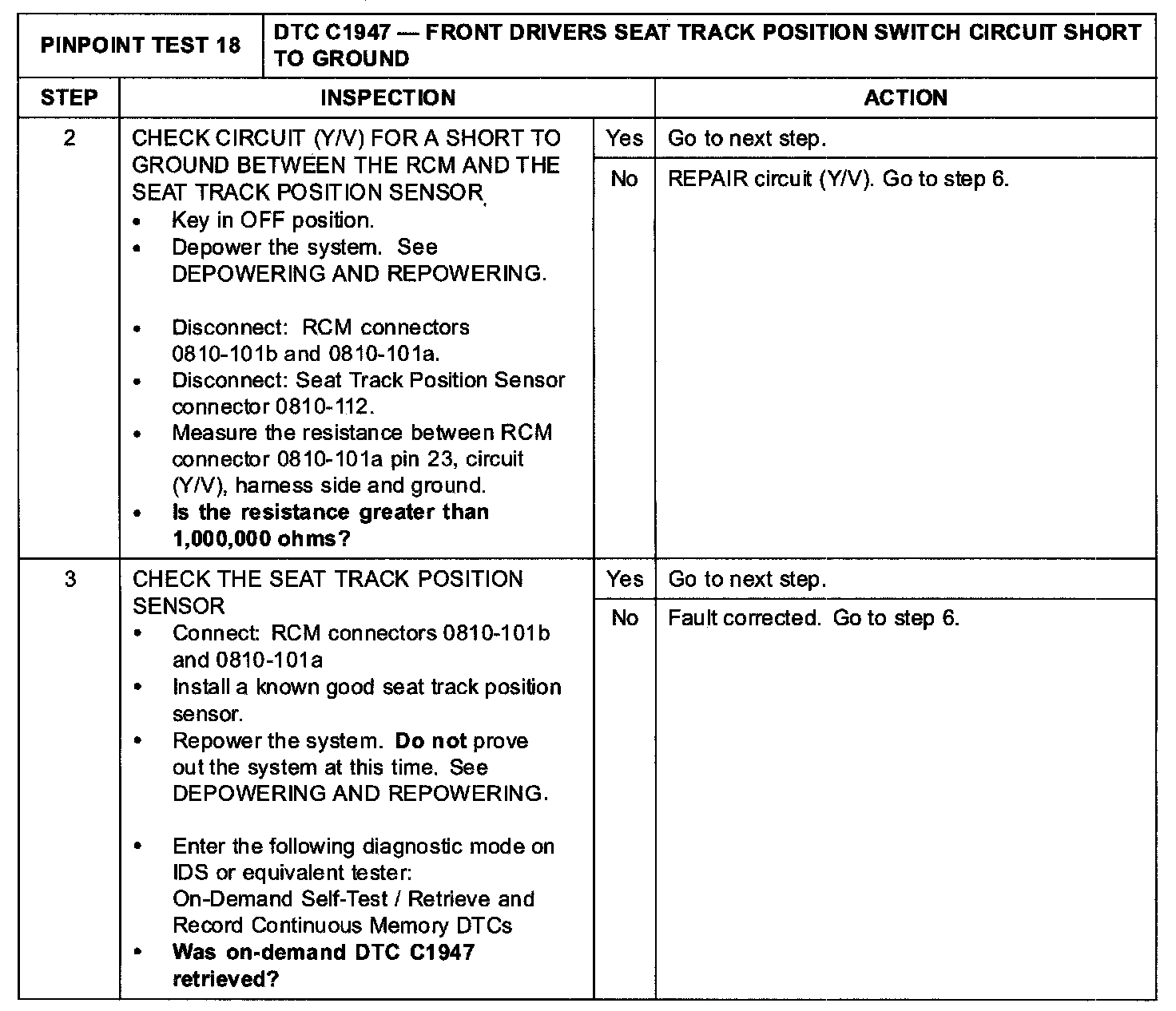

Step 2-Step 3:

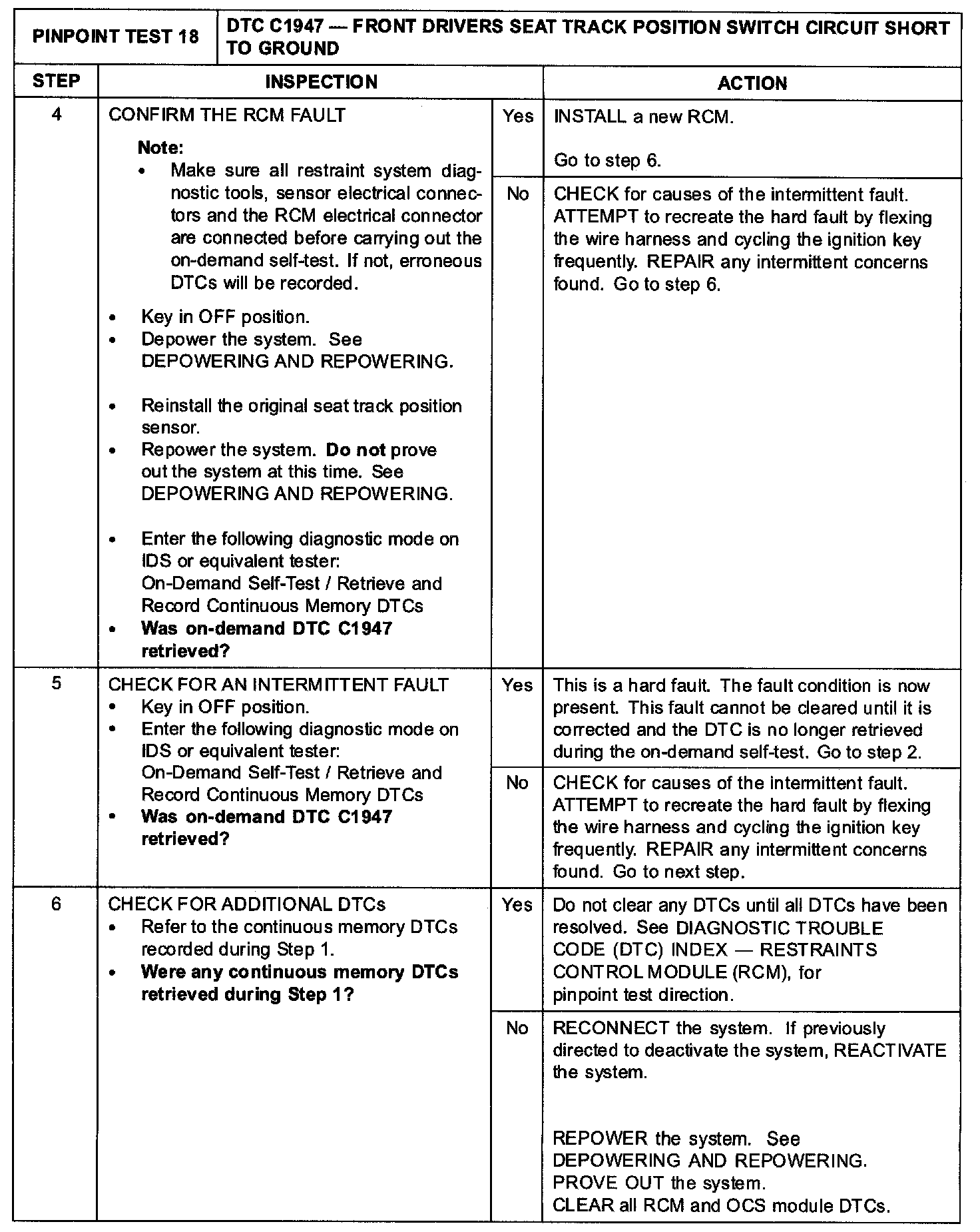

Step 4-Step 6:

PINPOINT TEST 18: DTC C1947 - FRONT DRIVER'S SEAT TRACK POSITION SWITCH CIRCUIT SHORT TO GROUND

Normal Operation
The restraints control module (RCM) monitors the driver seat track position sensor circuits. If the RCM detects a short to ground, it will store diagnostic trouble code (DTC) C1947 in memory and illuminate the air bag indicator.

Possible Causes
A driver seat track position sensor short to ground fault can be caused by:
- damaged wiring, terminals or connectors.
- a faulty driver seat track position sensor.
- RCM is faulted.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough Inspection and Verification before proceeding with the Pinpoint Test.
