B2792

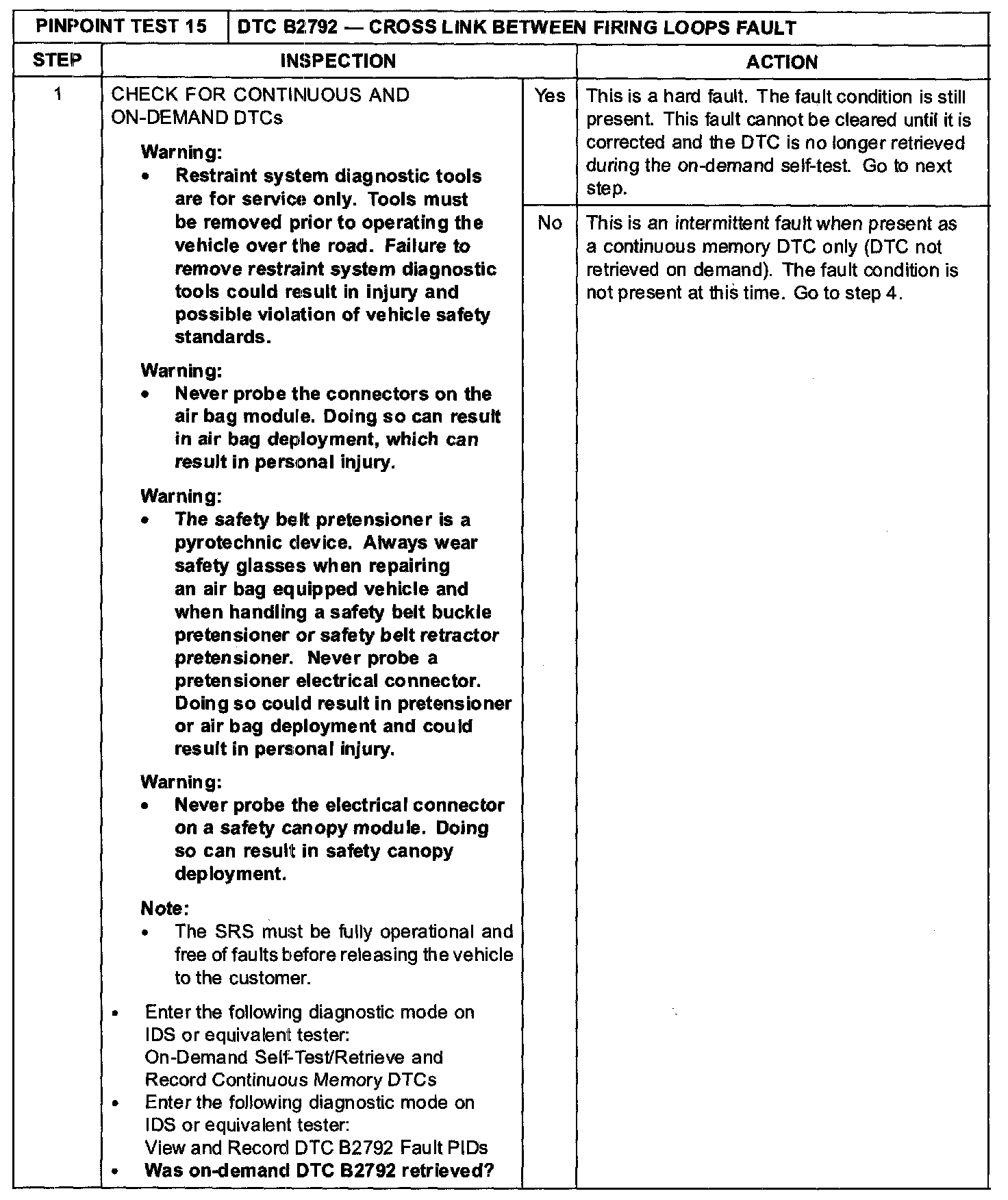

Step 1:

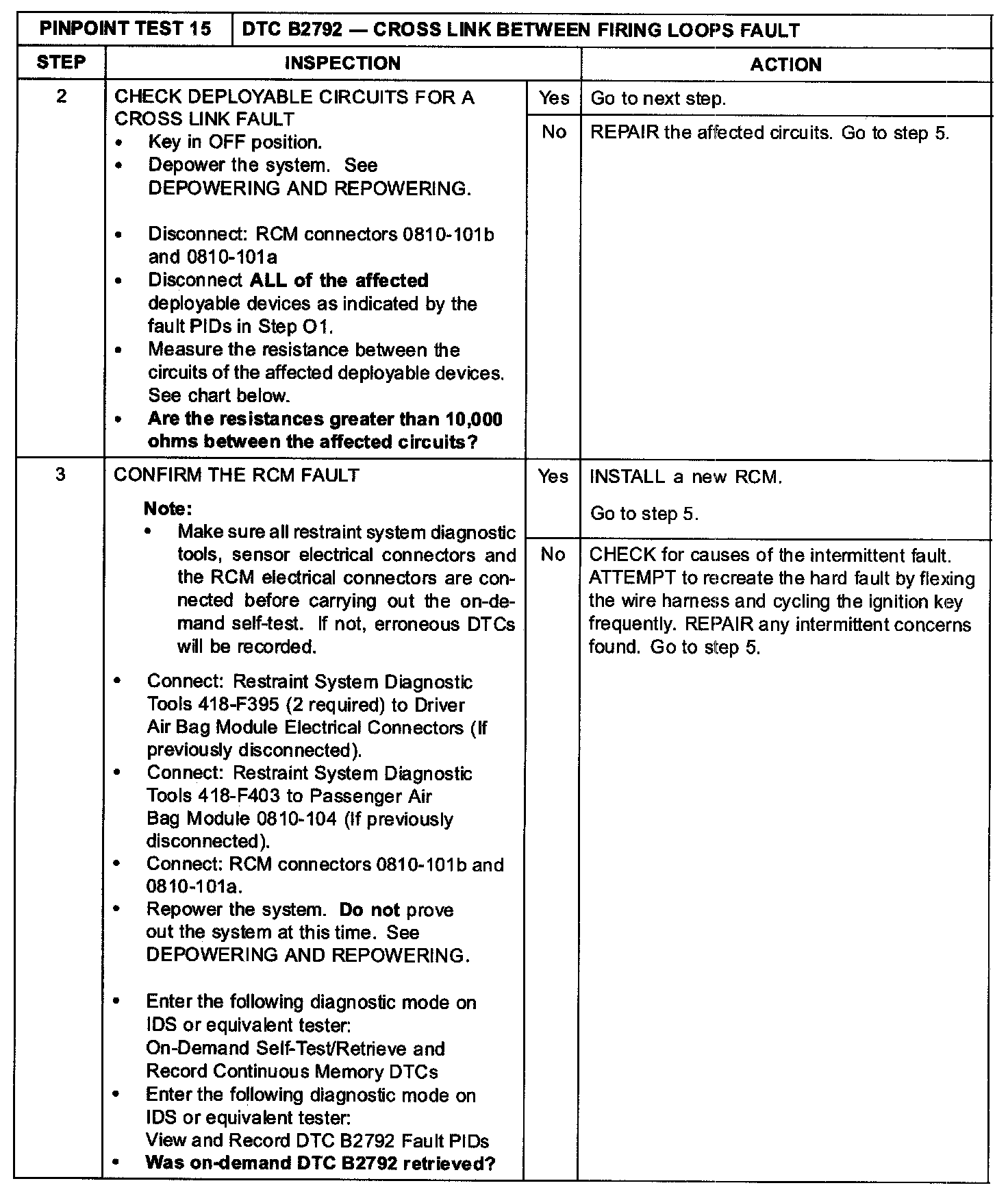

Step 2-Step 3:

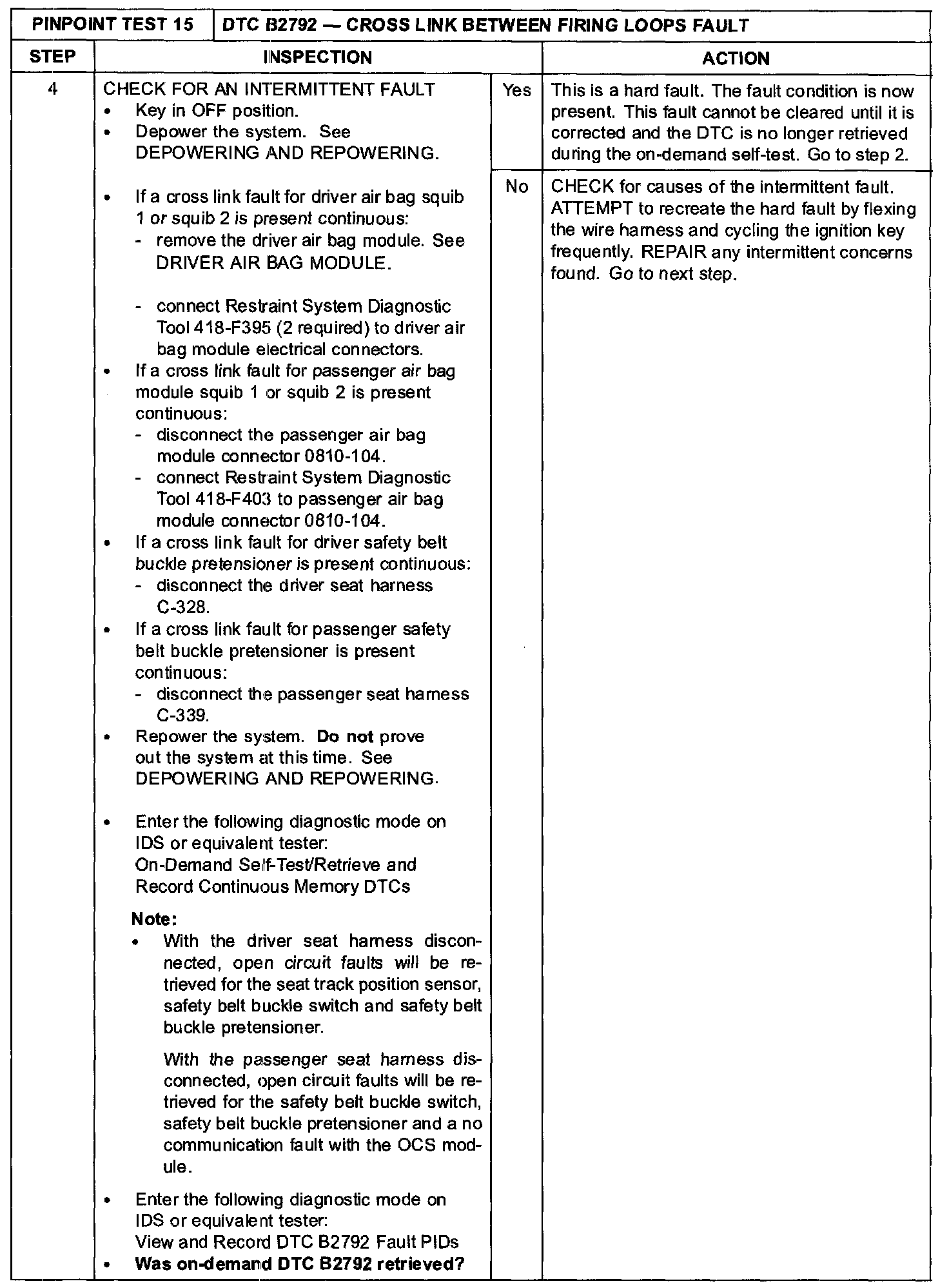

Step 4:

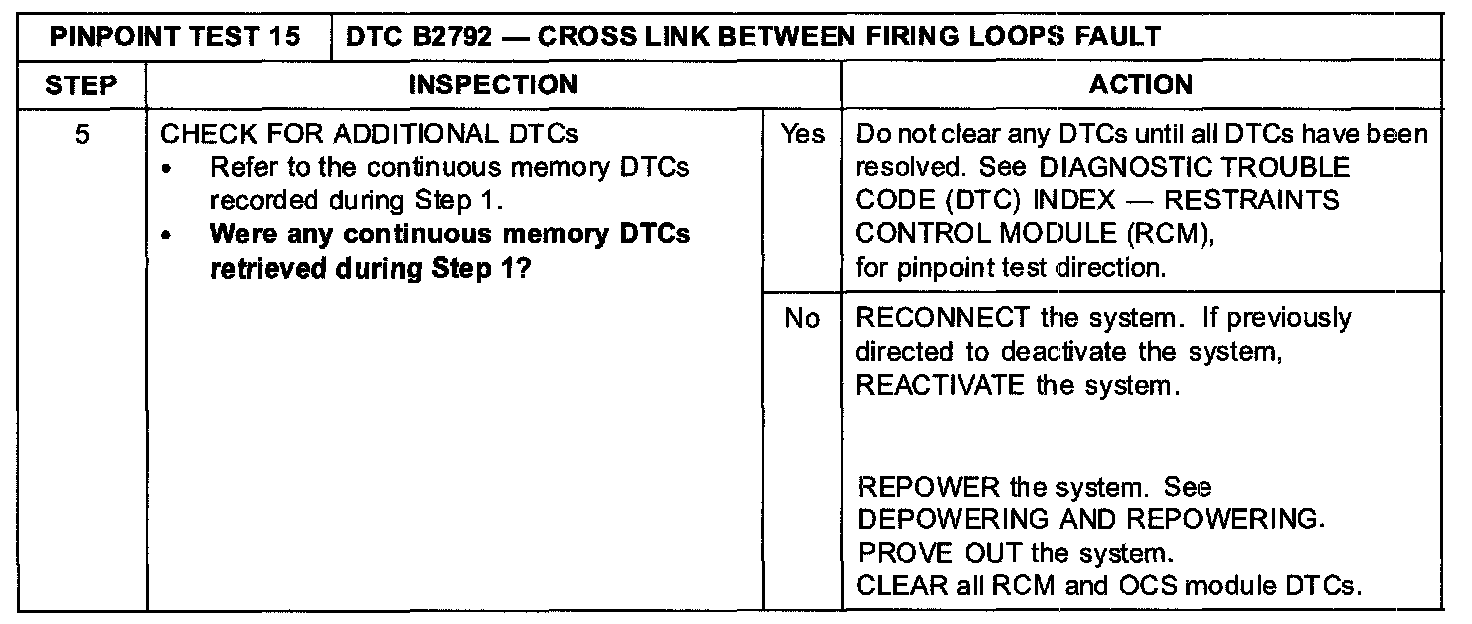

Step 5:

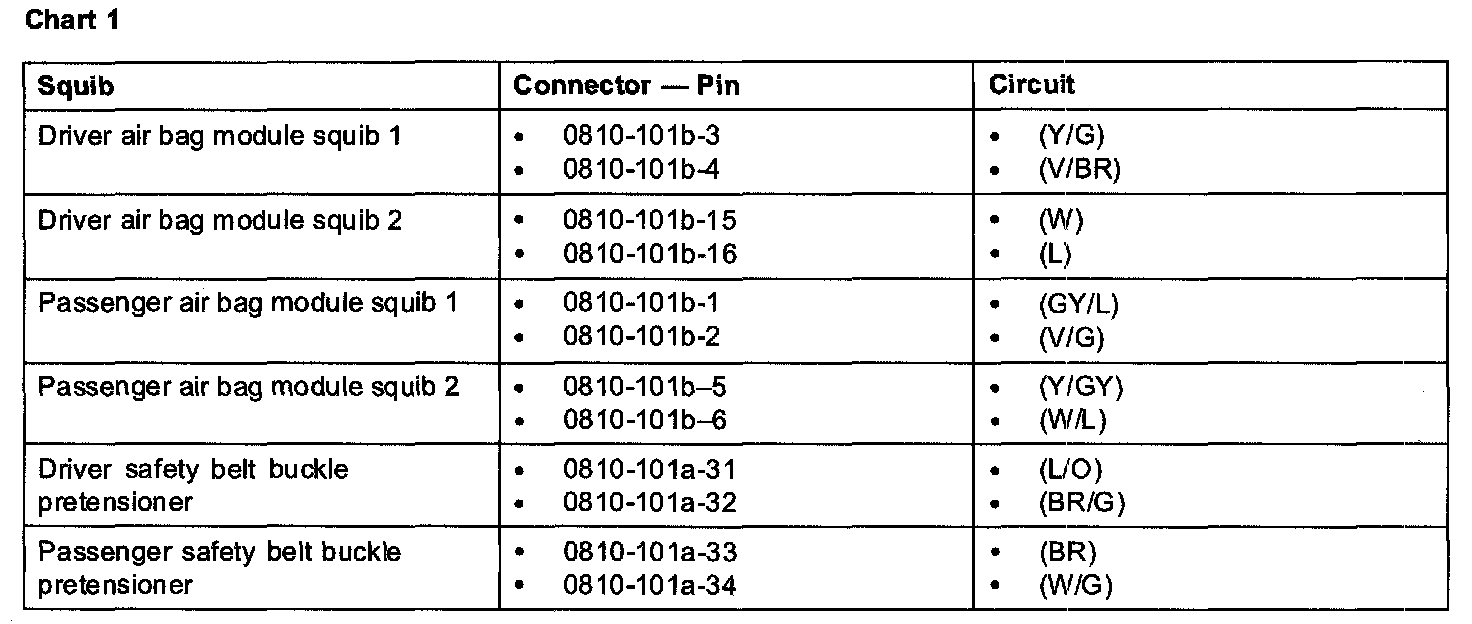

Chart 1:

PINPOINT TEST 15: DTC B2792 - CROSS LINK BETWEEN FIRING LOOPS FAULT

Normal Operation
The restraints control module (RCM) monitors all the deployable devices for a cross link between the circuits of another deployable device. If the RCM detects a short between the circuits of the deployable devices, it will store diagnostic trouble code (DTC) B2792 and illuminate the air bag indicator.

Possible Causes
A cross link fault between the circuits of deployable devices can be caused by:
- damaged wiring, terminals or connectors.
- a faulted RCM.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough Inspection and Verification before proceeding with the pinpoint test.
